splice

From 1984 Ford Bronco “The Lariat” — documented by Adrianspeeder.

8 photos

← Back to this vehicle

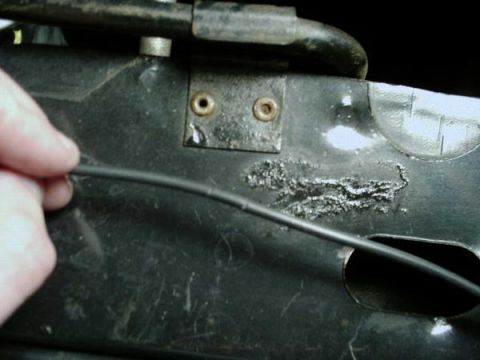

1984 Ford Bronco - Use wire strippers to make two ring cuts around the wire.

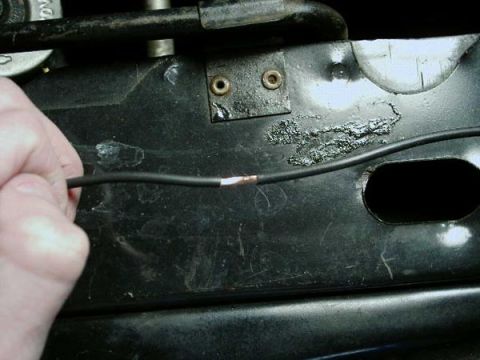

1984 Ford Bronco - A razor knive can slit between the two ring cuts to make a bare connection point.

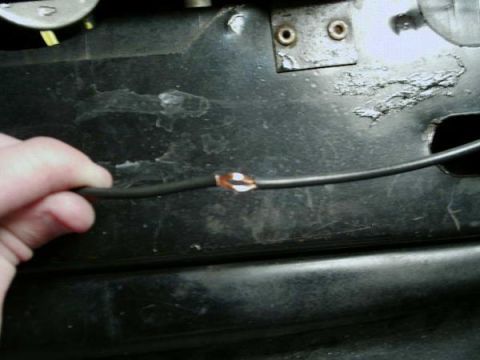

1984 Ford Bronco - Split the wire in half making a hole.

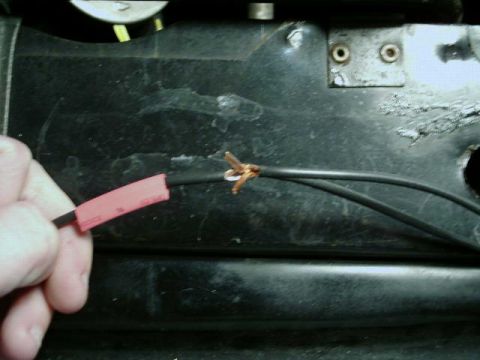

1984 Ford Bronco - Don't forget to have the heatshrink ready and insert the wire through the hole.

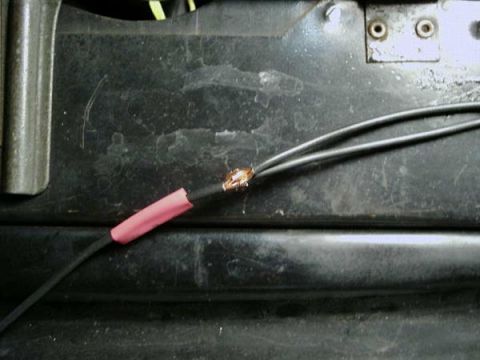

1984 Ford Bronco - Wrap the wire around.

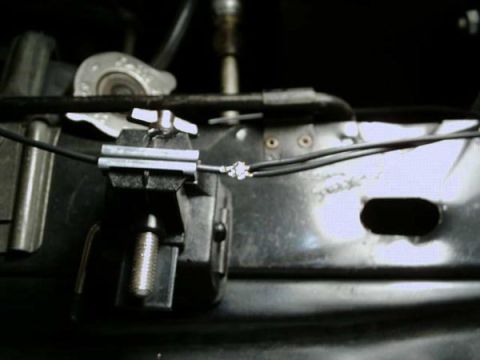

1984 Ford Bronco - Electrical splice secured with a clamp, showing wiring detail and a SuperMotors.net watermark.

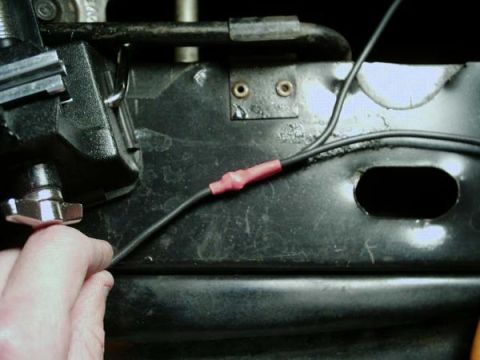

1984 Ford Bronco - Seal the deal with the heatshrink.

1984 Ford Bronco - These connections corrode, heat up, and melt. BAD!~
