From 1995 Ford Bronco “Big Nasty”, documented by latemodelman.

26 photos
← Back to this vehicle

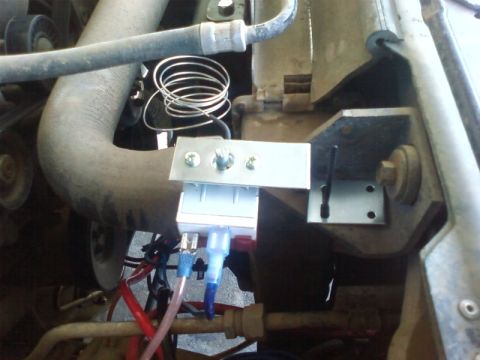

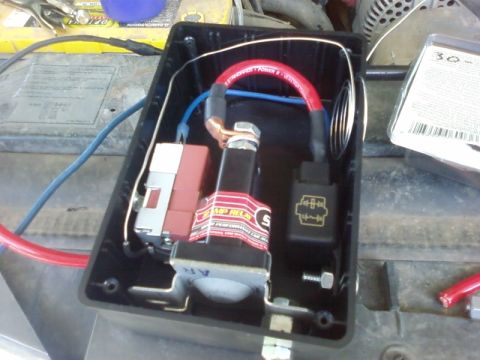

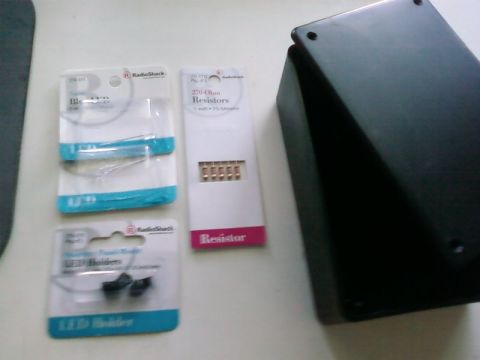

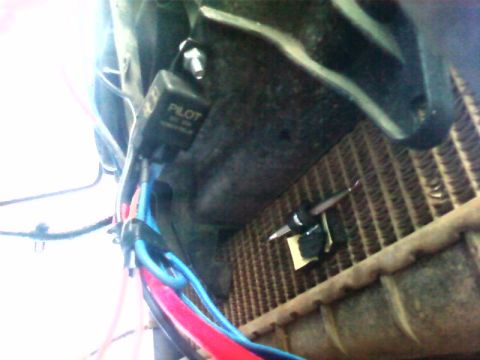

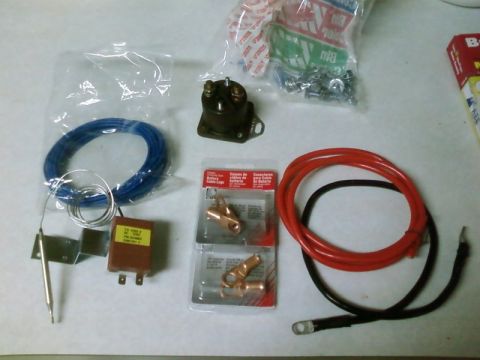

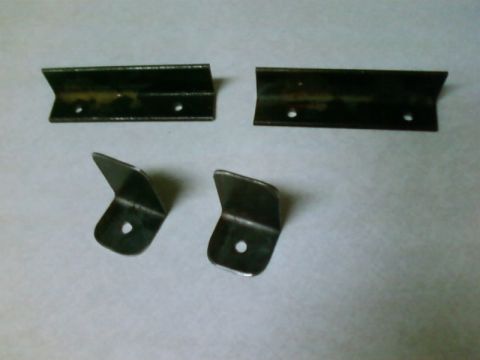

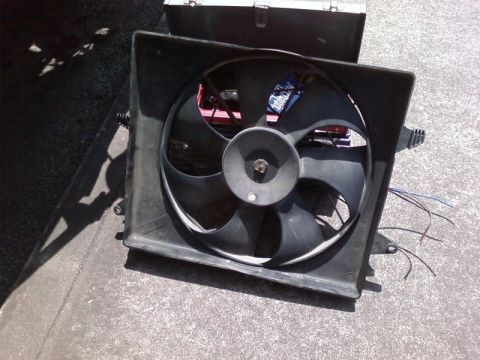

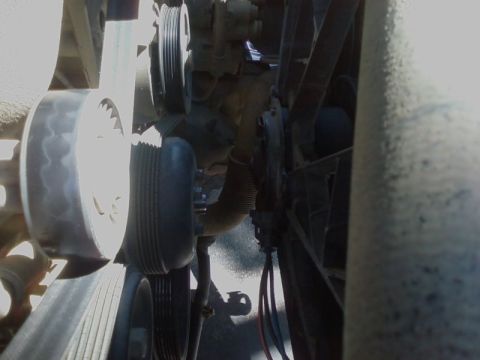

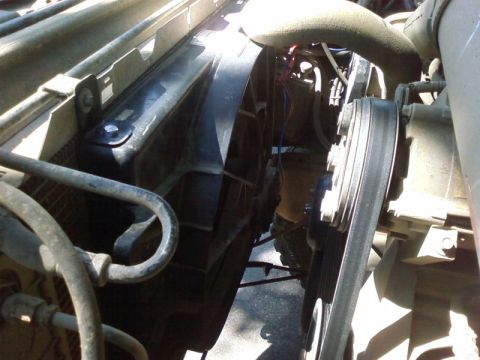

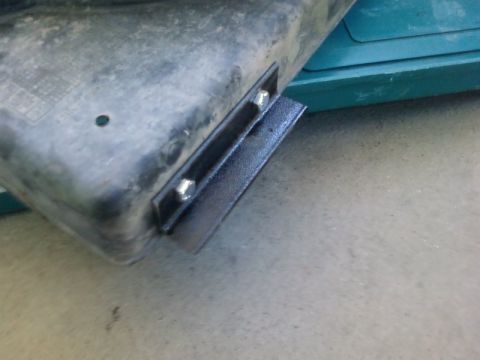

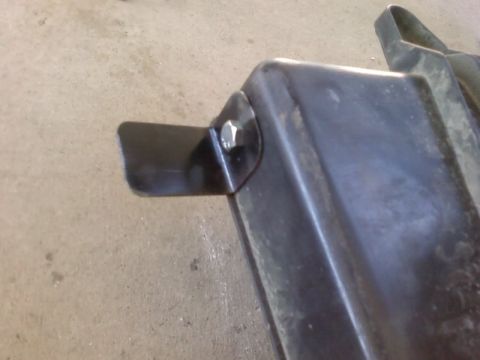

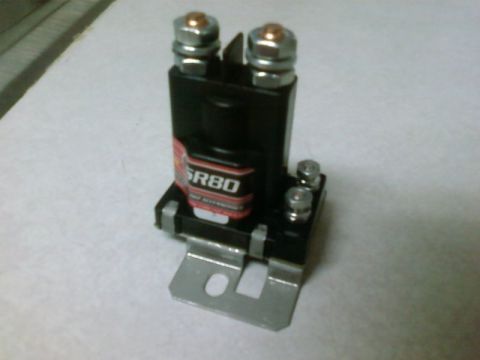

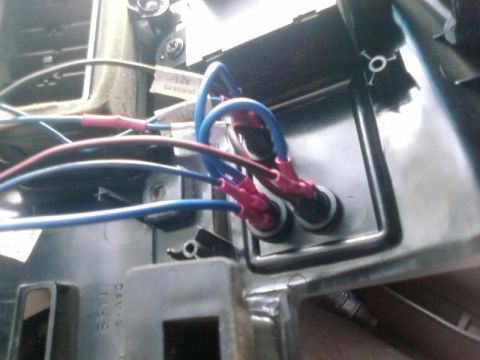

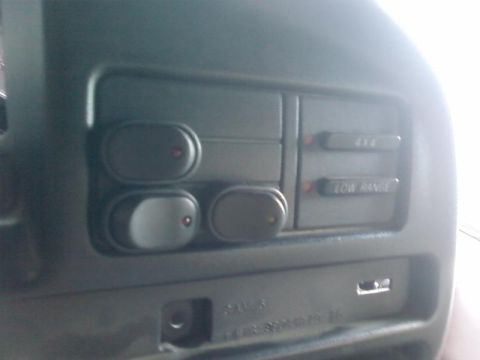

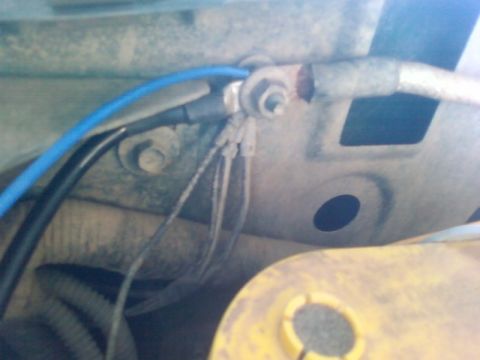

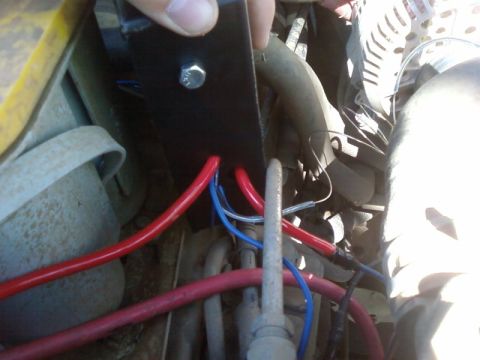

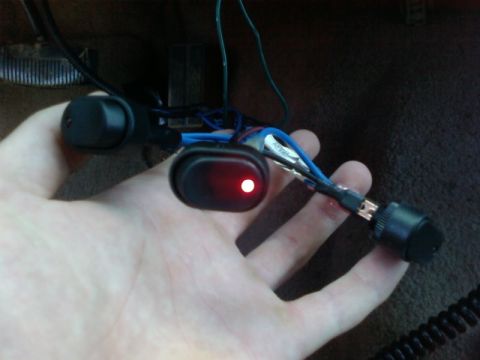

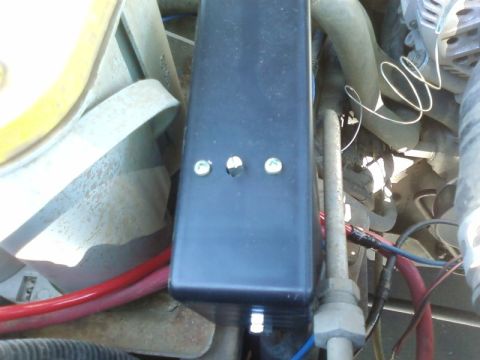

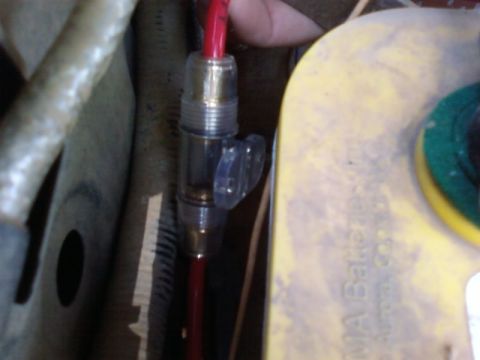

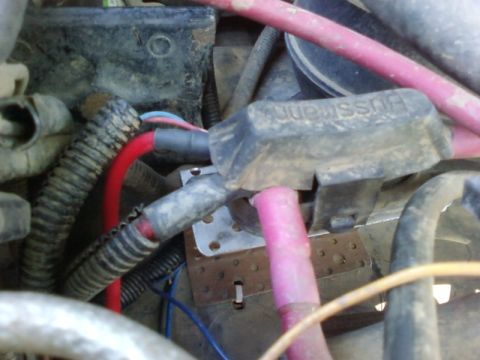

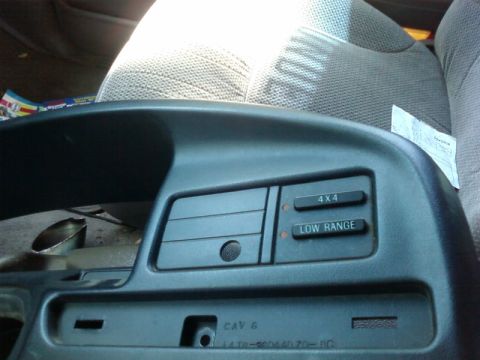

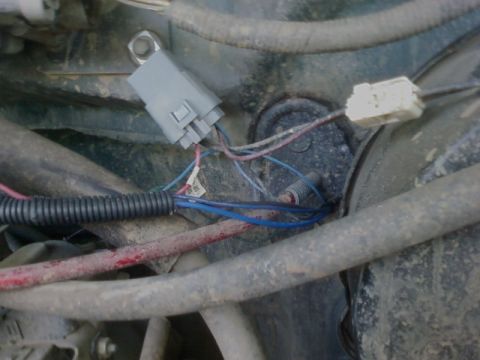

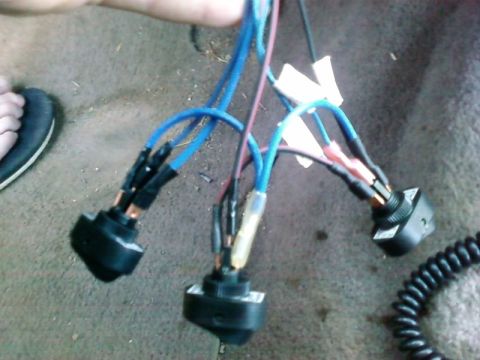

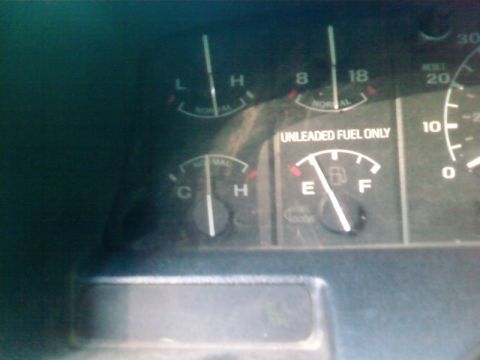

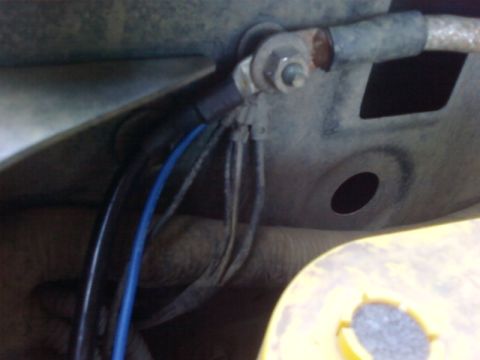

1995 Ford Bronco - Fan from a 93-95 T Bird 1995 Ford Bronco - Brackets for top and bottom (ones for bottom are on top in pic) Bottom bracket is 1/8 x 1 steel angle. Top bracket is 16ga bent to 90. 1995 Ford Bronco - Here's most of the electronics: Hayden relay kit 3653 (comes with temp switch, probe, 15ft of wire, no relay included) about $22. starter r… 1995 Ford Bronco - Temp location for the temp switch. I waterproof box is to come. 1995 Ford Bronco - Temporary location for the relay, on the fan shroud. Temp sender is located next to it. I put it on the middle of the rad iator because my… 1995 Ford Bronco - fan motor ground as well as relay ground. 1995 Ford Bronco - Temp never reached above the middle. This is on a 73* day with AC on giving it lots of throttle. We're only using the low setting for now t… 1995 Ford Bronco - Bottom painted and mounted 1995 Ford Bronco - top...ditto 1995 Ford Bronco - Wiring diagram showing color-coded connections between an Optima battery, 30A relay, temperature switch and an electric motor. 1995 Ford Bronco - 80A relay 1995 Ford Bronco - LEDs, resistors and a project box to keep it all in. 1995 Ford Bronco - final spot for all the electronics under the hood. 1995 Ford Bronco - added 2 switches inside, power came from the locker's constant 12v, grounded under dash 1995 Ford Bronco - this switch controls the low speed, turn it off for water crossings or leave it on to let the thermostat take over for you. 1995 Ford Bronco - extra 2 holes will be made here. 1995 Ford Bronco - fan get's it's power straight from the alt d-block 1995 Ford Bronco - 60A audio fuse 1995 Ford Bronco - all wires come out of 3 holes at the bottom of the box 1995 Ford Bronco - at the top of the box is the temp control 1995 Ford Bronco - new and improved ground 1995 Ford Bronco - finished 1995 Ford Bronco - plenty of clearance. wow I need a new belt 1995 Ford Bronco - all wires go into cab through the clutch hole. Relay at top is for locker. 1995 Ford Bronco - A close-up view shows a wiring harness with blue and red wires connected to electrical terminals, likely part of a vehicle's interior elect… 1995 Ford Bronco - switches in final position
