1124 hits | 86.23 KB | Posted: 11/13/04

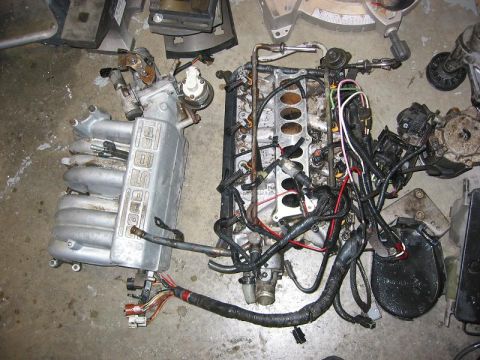

Upper and Lower intake manifolds, Injectors, fuel rails and Injector wiring
917 hits | 86.09 KB | Posted: 11/13/04

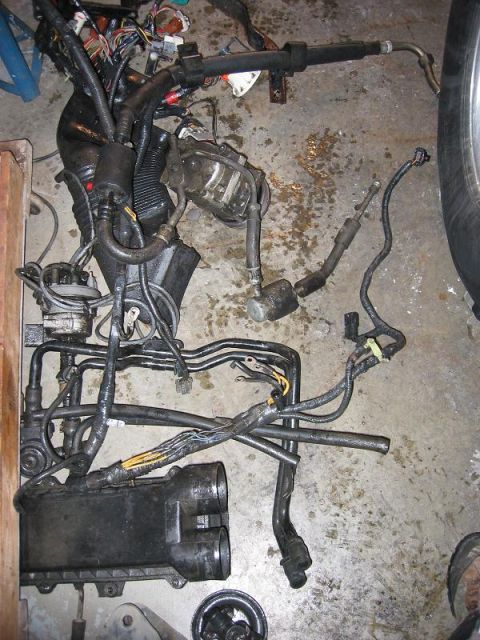

Wiring harness, Distributor, air box etc.
893 hits | 87.77 KB | Posted: 11/13/04

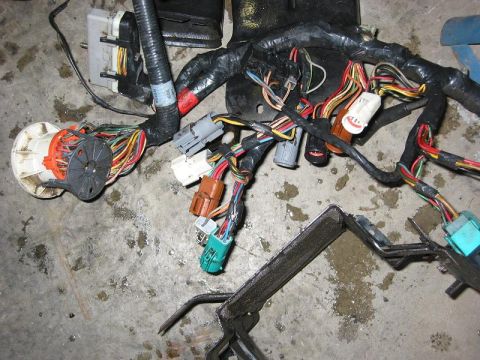

Close up of connectors needed to be removed on fire wall.

Round - Connects to the fuse panel on t...
883 hits | 87.43 KB | Posted: 11/13/04

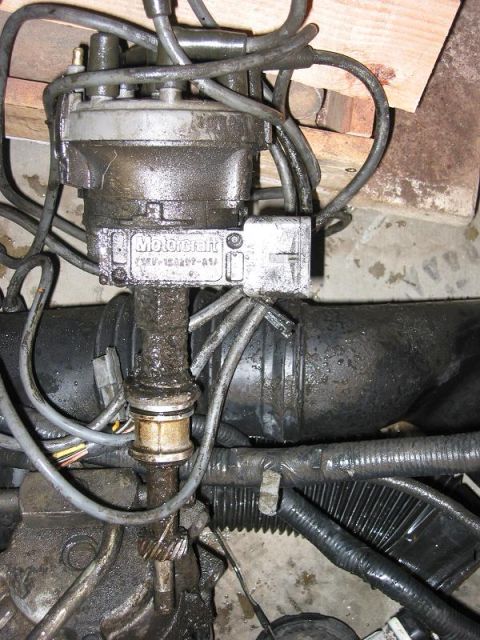

Close up of Distributor
897 hits | 51.37 KB | Posted: 11/13/04

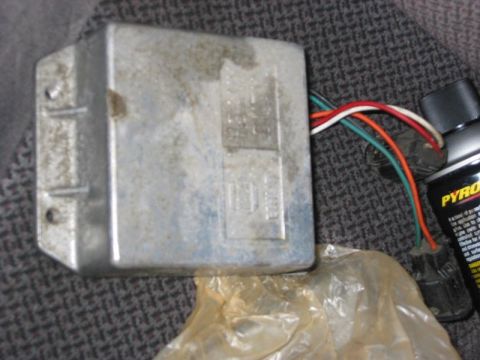

Not sure what this is, but it said Heavy Duty and he said I could take it.
865 hits | 66.54 KB | Posted: 11/13/04

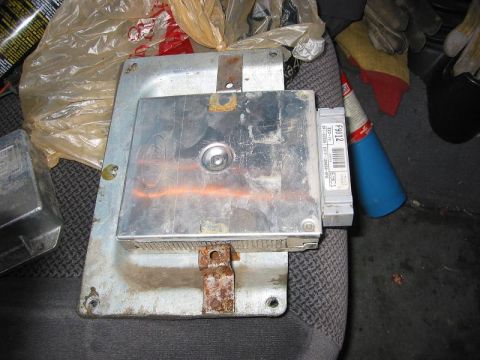

Computer and mounting bracket for inside driverside kick panel.

I got lucky and the Tranny in th...
fuel pump.JPG
1029 hits | 50.61 KB | Posted: 1/5/05

'86 EFI in tank pump

02 sensor.JPG
873 hits | 53.94 KB | Posted: 3/20/05

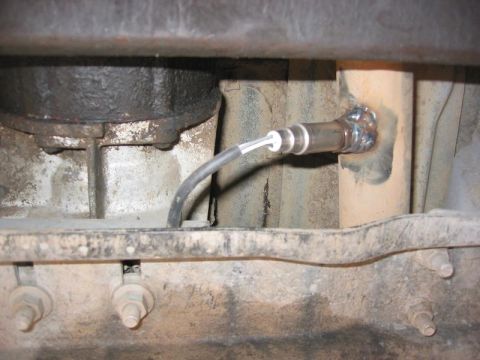

Here's is Where Mike put my O2 sensor. Nice and easy to get to if it goes out.
EFI - Computer.JPG
946 hits | 62.25 KB | Posted: 3/20/05

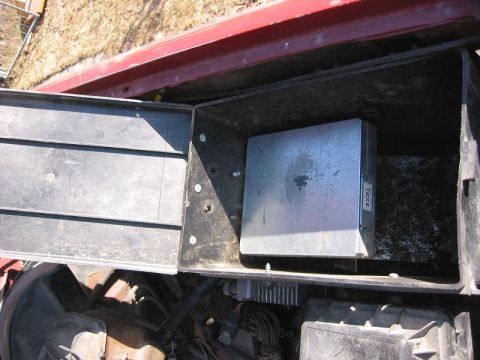

Located the computer in side the factory Tool box that came with the early 80s broncos as an option.
EFI - Full.JPG
991 hits | 90.4 KB | Posted: 3/20/05

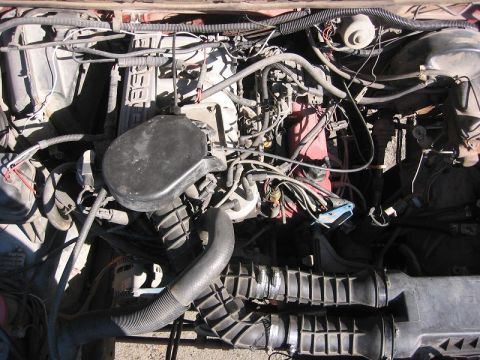

Full shop of the EFI installed. It's a little messier then the Carb set up I had. But I think I'll d...
EFI - Left.JPG
847 hits | 75.42 KB | Posted: 3/20/05

Left side of the engine compartment. Mike Located the Vacuum box over there.
EFI - Right.JPG
924 hits | 83.24 KB | Posted: 3/20/05

Right side of the engine compartment. Located here are the relays, ignition module and computer.
EFI - Modules.JPG
860 hits | 60.09 KB | Posted: 3/20/05

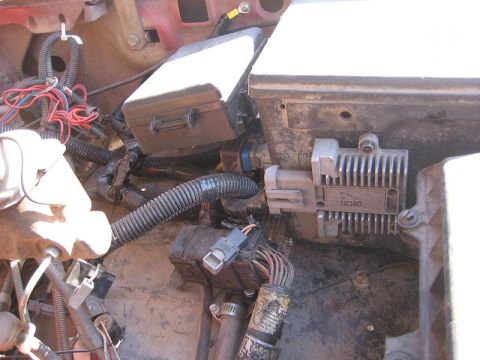

Close up of the modules and computer box..
Y pipe.JPG
908 hits | 66.15 KB | Posted: 3/20/05

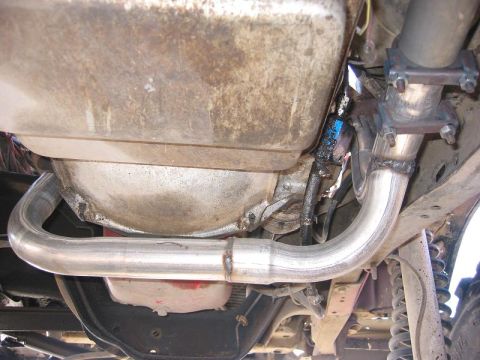

Y-pipe I had to have made, because I swapped in a '93 Exhaust manifold.
920 hits | 55.69 KB | Posted: 4/18/05

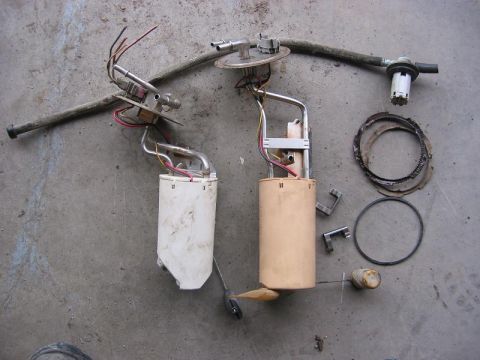

F250 pump(White) next to a Bronco pump(tan).
