Front Dana 60 Swap 8/03

From 1986 Ford Bronco “Swamp Donkey”, documented by John Brown.

48 photos
← Back to this vehicle

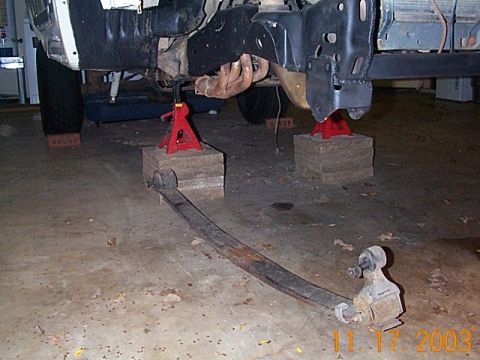

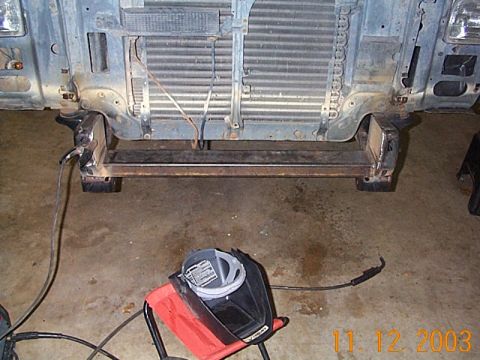

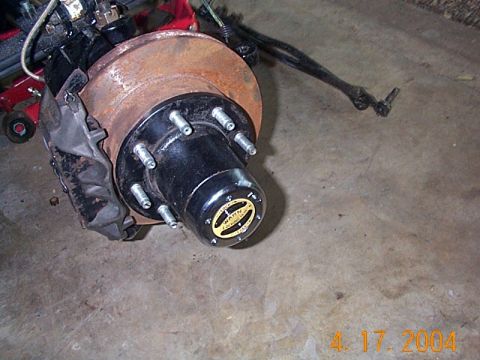

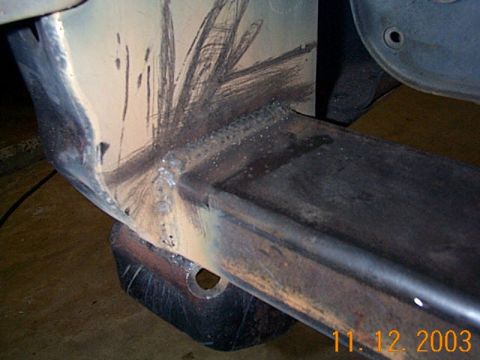

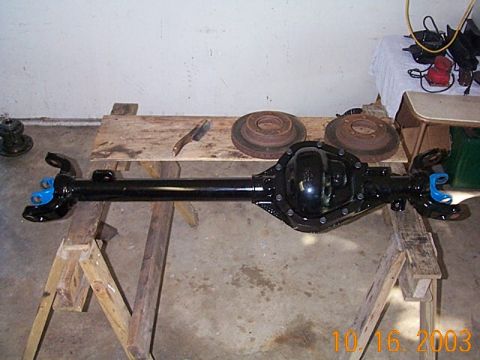

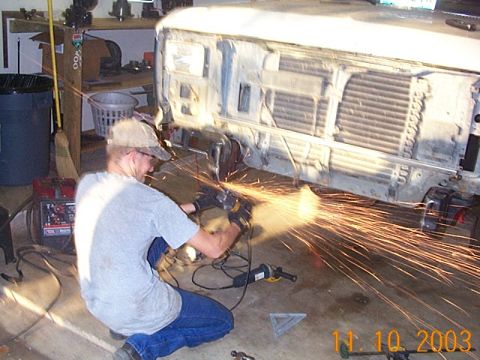

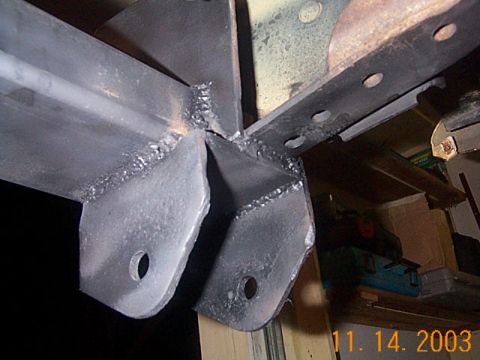

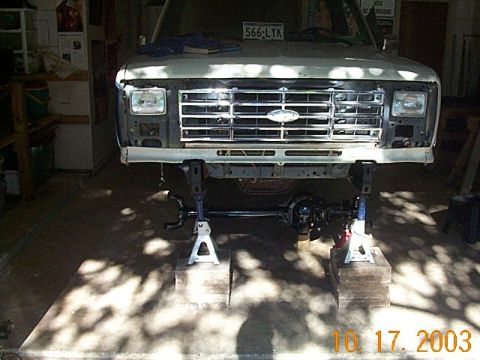

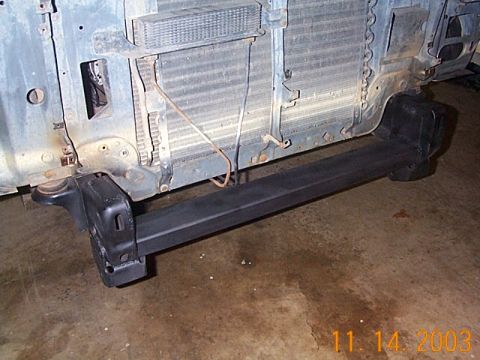

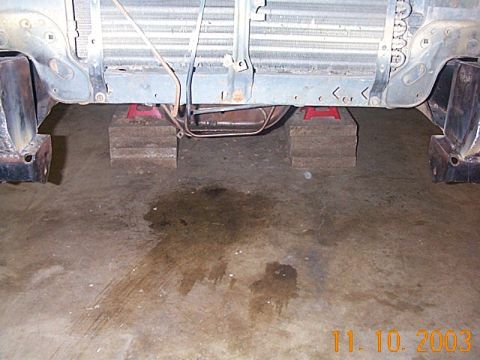

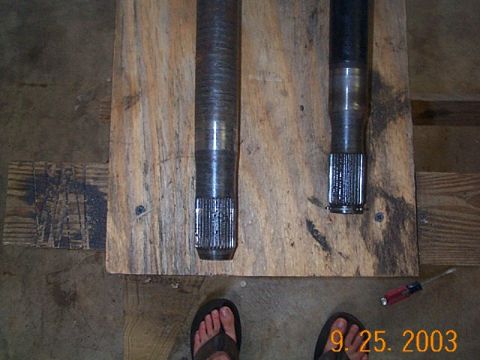

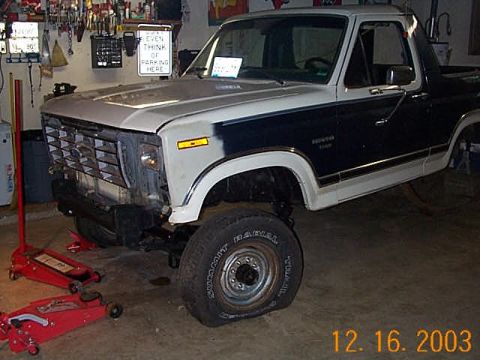

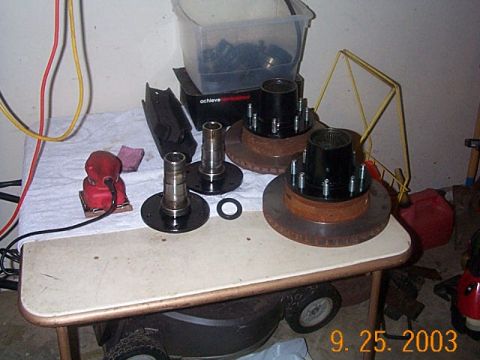

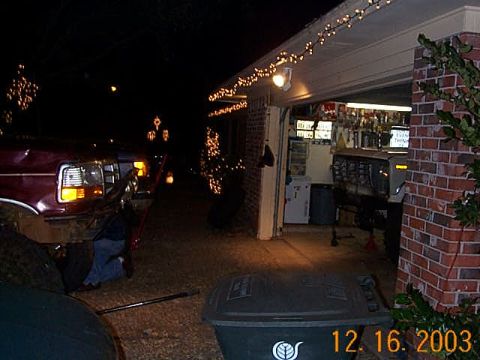

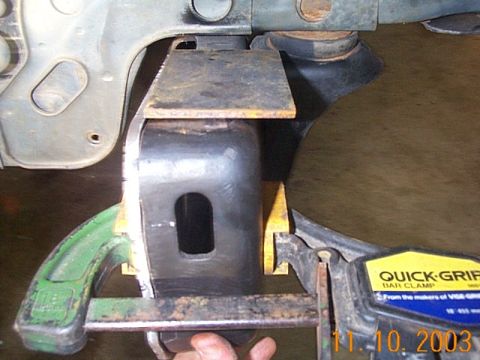

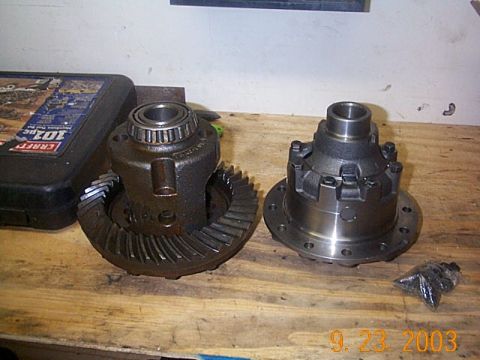

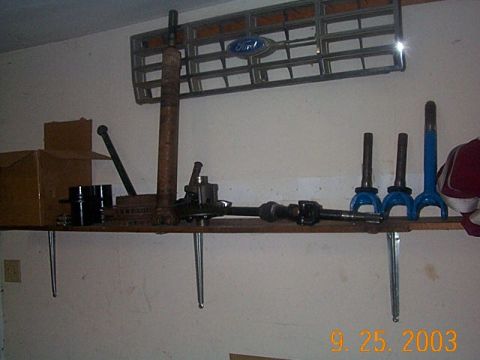

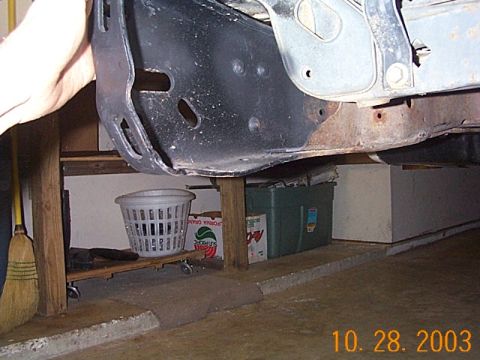

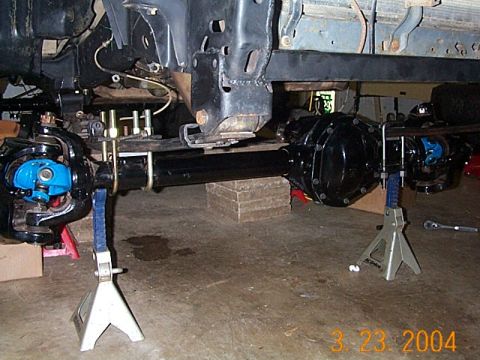

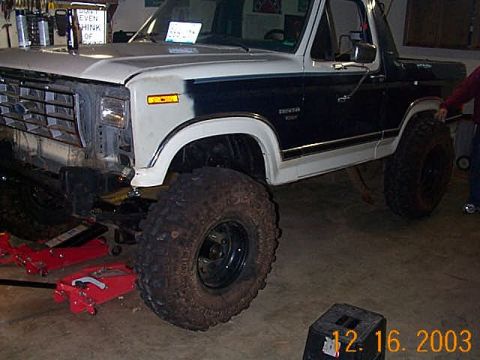

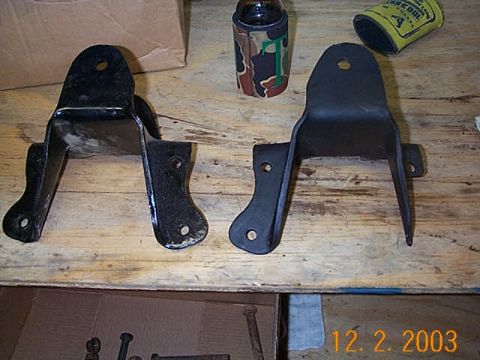

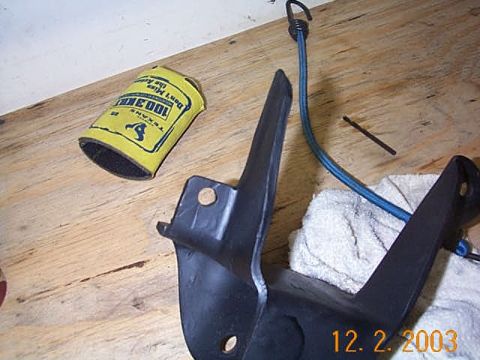

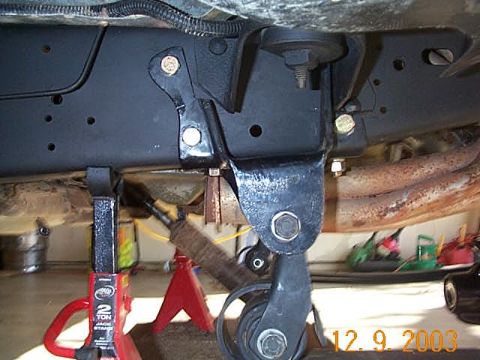

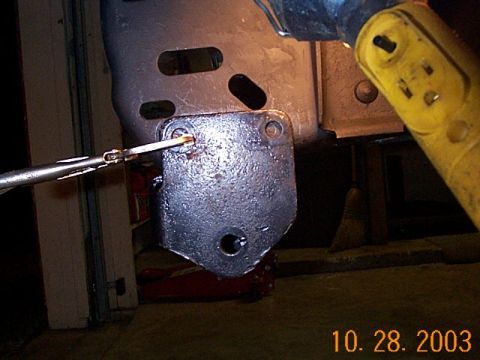

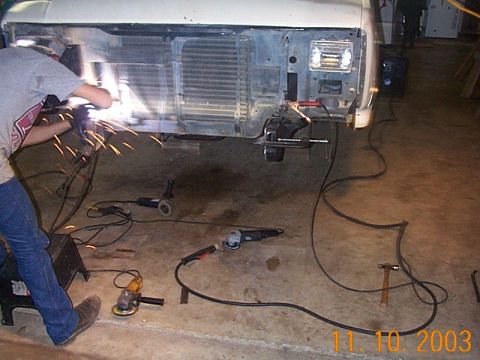

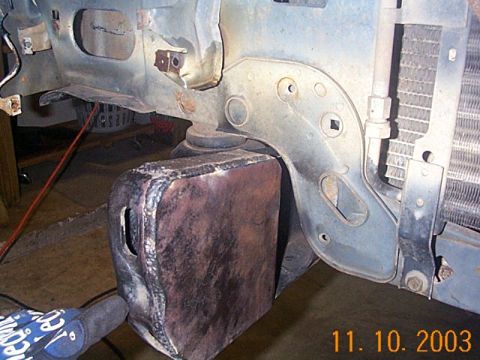

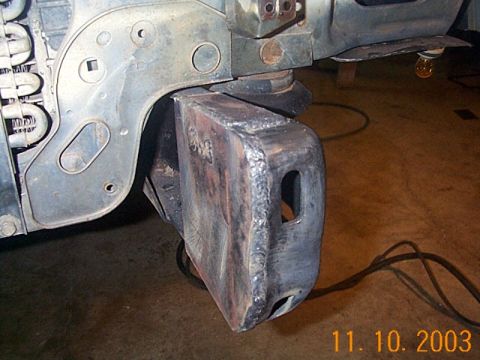

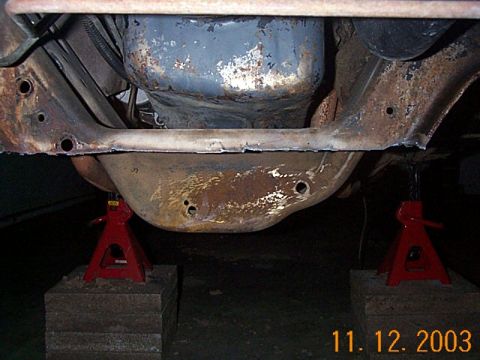

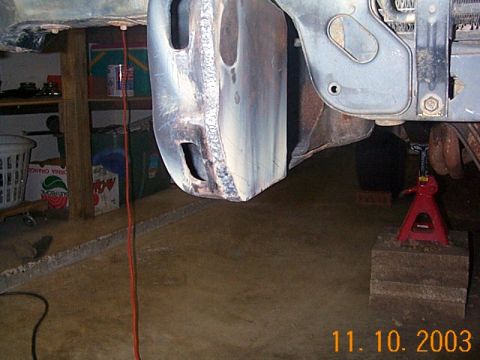

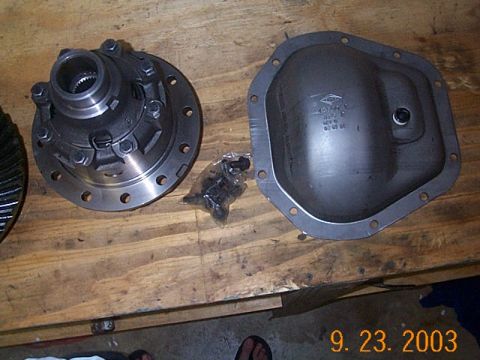

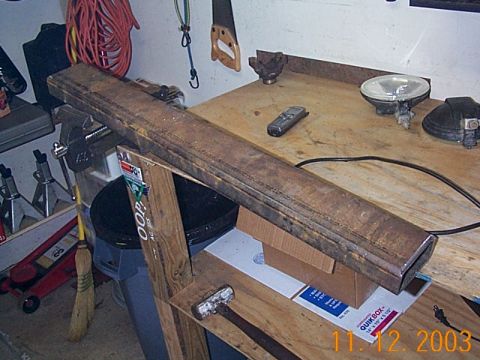

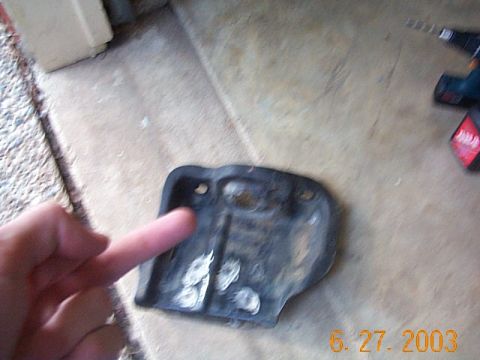

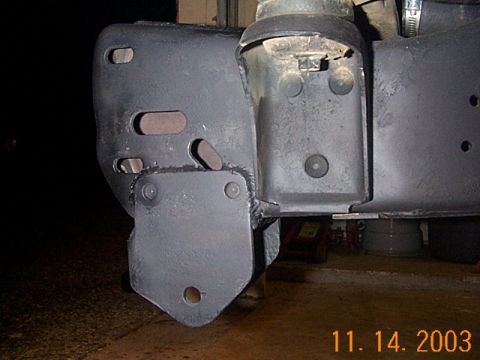

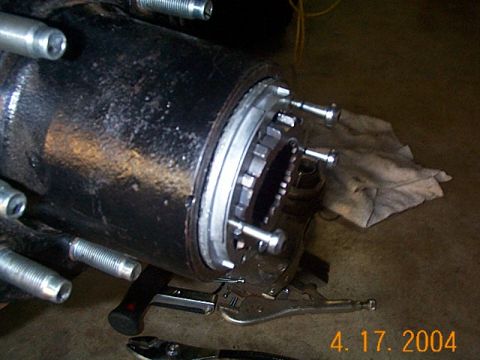

1986 Ford Bronco - On the junkyard truck 1986 Ford Bronco - Back at home in buddy's truck. 1986 Ford Bronco - On the horses 1986 Ford Bronco - D44 shafts vs. D60 1986 Ford Bronco - Detroit No-Spin for 4.88s and new Spicer cover. 1986 Ford Bronco - stock carrier with 4.10s v. Detroit 1986 Ford Bronco - cleaned up and painted hubs and spindles. 1986 Ford Bronco - stuff. The blue shafts on teh right are for the D60. 1986 Ford Bronco - D60 v. TTB passenger shafts 1986 Ford Bronco - Powdercoated. 1986 Ford Bronco - TTB removed 1986 Ford Bronco - removed coil tower 1986 Ford Bronco - axle mocked up under truck. 1986 Ford Bronco - Close-up of a bare galvanized/zinc-coated metal bracket or hanger mounted underneath a vehicle, with a screwdriver tip touching an upper mo… 1986 Ford Bronco - boogered frame 1986 Ford Bronco - begining to box frame for hangars 1986 Ford Bronco - A steel bracket or frame section fabricated from box tubing with a flat top plate and an oblong slot cut into the side, held in a bench vis… 1986 Ford Bronco - passenger side complete for now 1986 Ford Bronco - grinding down welds slightly 1986 Ford Bronco - There will be a 2x3 crossmember running between the frame and connecting the hangars. 1986 Ford Bronco - driver's side boxed in. 1986 Ford Bronco - passenger side boxed in. 1986 Ford Bronco - 2x4x3/16 inch used for front x-member. 1986 Ford Bronco - Close-up of a freshly welded steel crossmember or frame bracket joint, showing weld beads and grinding marks on bare and painted metal unde… 1986 Ford Bronco - Front view of a partially disassembled truck/SUV in a garage, showing the front frame crossmember, radiator, and inner fenders with the fro… 1986 Ford Bronco - still needs to be cleaned up with the grinder. 1986 Ford Bronco - Painted 1986 Ford Bronco - from the back side, the drivers hanger 1986 Ford Bronco - pass. side hanger 1986 Ford Bronco - A vehicle chassis is raised on red jack stands supported by wood blocks, with a removed leaf spring lying on the concrete garage floor in t… 1986 Ford Bronco - This is just mocked up, unweighted. Not good shackle angle. 1986 Ford Bronco - This is how I modified the rearward hangar. 1986 Ford Bronco - Hangar comparison 1986 Ford Bronco - Current shackle angle, before cutting 1986 Ford Bronco - Modified body mount. 1986 Ford Bronco - drivers side mounted with 5/8" u-bolts. 1986 Ford Bronco - pass. side hangar complete. 1986 Ford Bronco - 35" on a 16.5 centered about 1.5" further than stock. I am jsut using these tires to get everything in place. 1986 Ford Bronco - A two-tone silver and dark blue/black Ford truck lifted on large off-road tires with black steel wheels, shown from a 3/4 front angle in a… 1986 Ford Bronco - It sits up pretty tall. I am planning on 37"s 1986 Ford Bronco - looks good with 38s 1986 Ford Bronco - on some crappy tires 1986 Ford Bronco - 3 SAS'd Broncs. 1986 Ford Bronco - raised up shackle into hangar about 1.5" 1986 Ford Bronco - Better. Still about 5.5" higher where spring bolts in the front, but I am happy with this. We shall see how it flexes 1986 Ford Bronco - Final setup 1986 Ford Bronco - Close-up of a front hub assembly with a black locking hub (Warn-style) mounted on studs, behind a rusty brake rotor and drum, with a tie ro… 1986 Ford Bronco - Close-up of a disassembled front axle hub on a Ford Bronco, showing the wheel bearing and locking hub assembly with several protruding whee…
