96broncoman > 1996 Ford Bronco > open folder TTB->8 lug

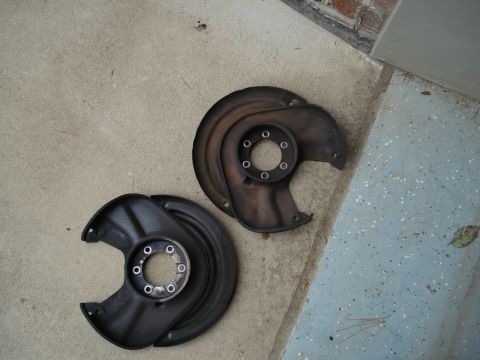

Caliper brackets off of an 81 k20.
511 hits | 62.38 KB | Posted: 9/7/06
Caliper brackets off of an 81 k20.

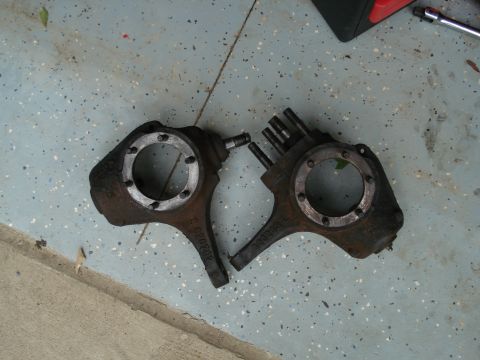

Dana 44 knuckles from an 81 k20
426 hits | 65.68 KB | Posted: 9/7/06
Dana 44 knuckles from an 81 k20

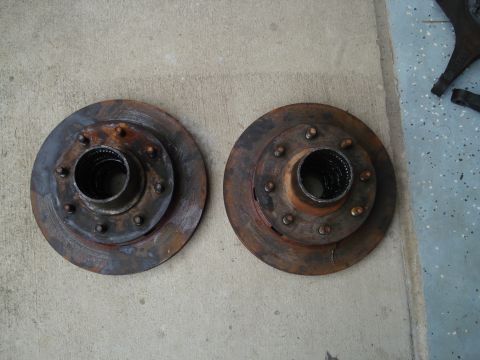

Rotors with hubs connected from an 81 k20.
445 hits | 66.43 KB | Posted: 9/7/06
Rotors with hubs connected from an 81 k20.

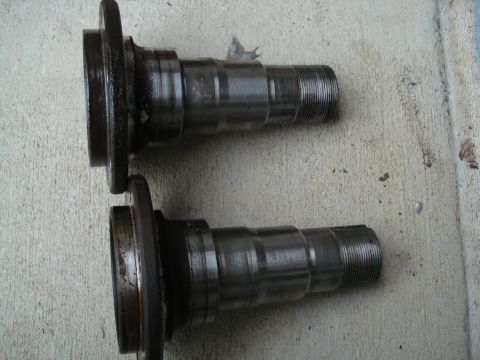

Spindles off an 81 k20.
564 hits | 67.58 KB | Posted: 9/7/06
Spindles off an 81 k20.
Spindles off an 81 k20.
477 hits | 67.58 KB | Posted: 9/7/06
Spindles off an 81 k20.

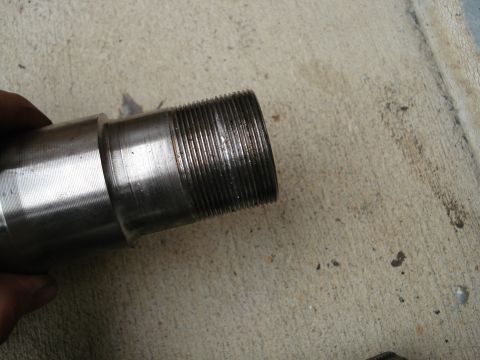

Here you can see the messed up threads.
887 hits | 62.71 KB | Posted: 9/7/06
Here you can see the messed up threads.

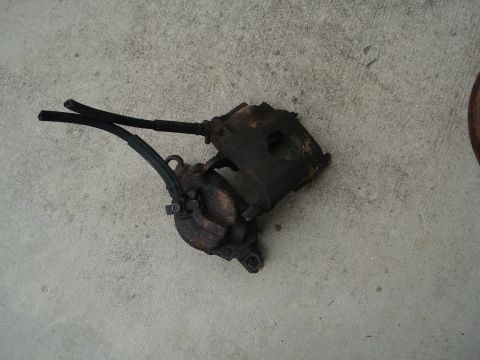

Calipers off a k5 blazer for core on new calipers.
531 hits | 65.85 KB | Posted: 9/7/06
Calipers off a k5 blazer for core on new calipers.

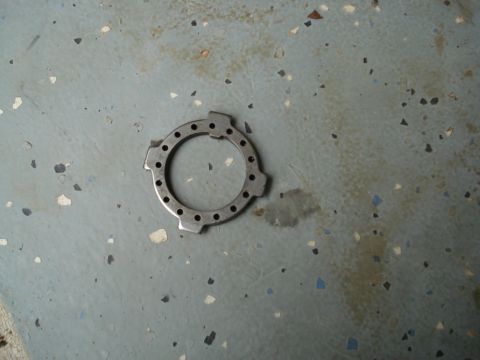

Piece that goes inbetween the two spindle hub nuts. There are actually two different pieces picture...
946 hits | 49.76 KB | Posted: 9/7/06
Piece that goes inbetween the two spindle hub nuts. There are actually two different pieces picture...

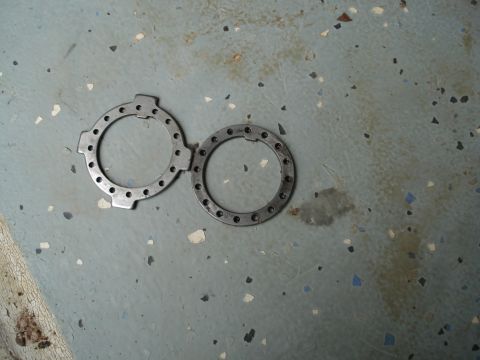

The two pieces side by side. 81 k20 on left, 75 k5 on right.
686 hits | 54.84 KB | Posted: 9/7/06
The two pieces side by side. 81 k20 on left, 75 k5 on right.

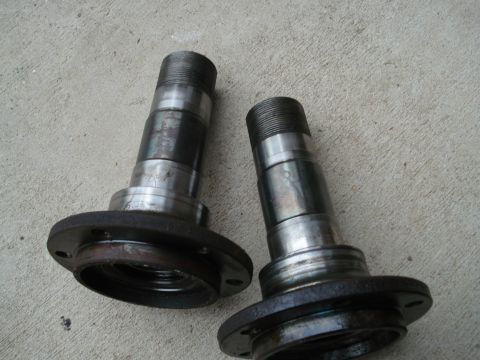

75 k5 spindles.
458 hits | 69.84 KB | Posted: 9/7/06
75 k5 spindles.

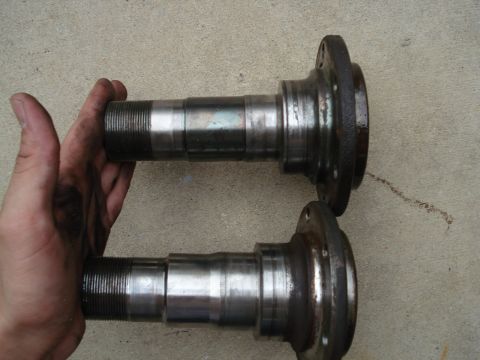

81 k20 spindle on bottom, 75 k5 spindle on top.
616 hits | 61.15 KB | Posted: 9/7/06
81 k20 spindle on bottom, 75 k5 spindle on top.

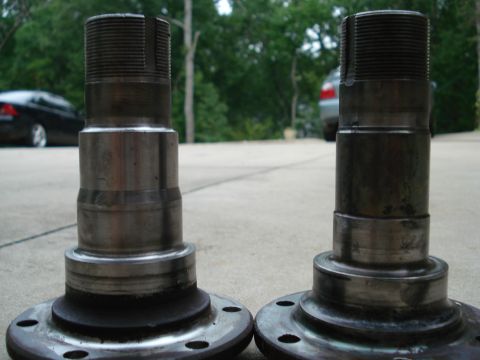

81 k20 spindle on left, 75 k5 spindle on right.
440 hits | 57.05 KB | Posted: 9/7/06
81 k20 spindle on left, 75 k5 spindle on right.

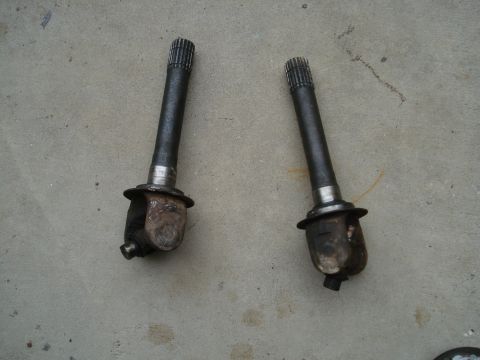

two outer shafts from an 81 k20
422 hits | 51.67 KB | Posted: 9/7/06
two outer shafts from an 81 k20

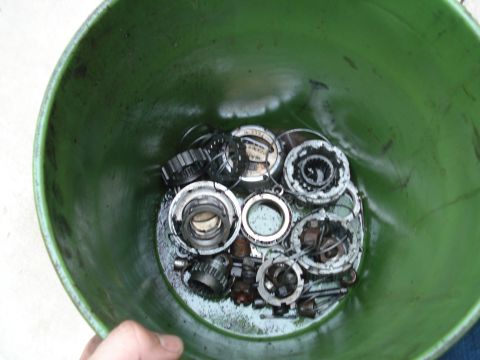

Various nuts, bolts and other misc. pieces. Most of the hub pieces are shot.
425 hits | 60.09 KB | Posted: 9/7/06
Various nuts, bolts and other misc. pieces. Most of the hub pieces are shot.

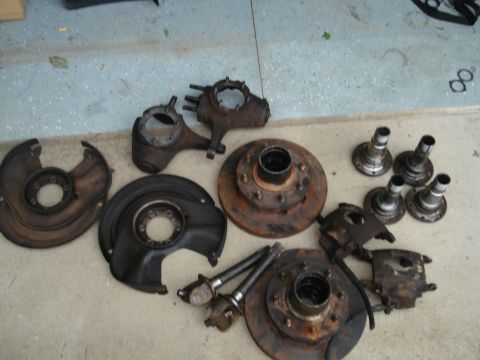

All the stuff (minus the bucket full of misc. stuff.)
422 hits | 62.51 KB | Posted: 9/7/06
All the stuff (minus the bucket full of misc. stuff.)

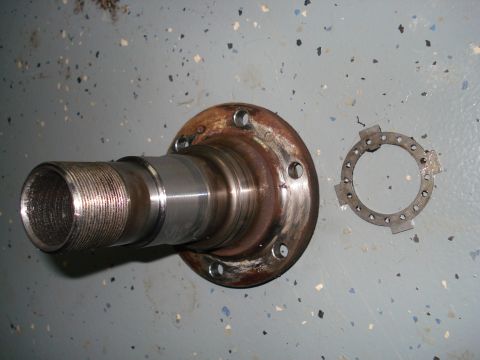

Pulled these from an 85 suburban (k10 sub)
462 hits | 54.56 KB | Posted: 9/8/06
Pulled these from an 85 suburban (k10 sub)

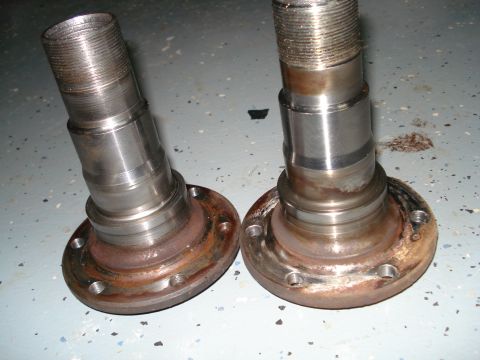

81 k20 on left, 85 k10 sub. on right. Angle doesnt do it justice but they are the same.
448 hits | 66.29 KB | Posted: 9/8/06
81 k20 on left, 85 k10 sub. on right. Angle doesnt do it justice but they are the same.

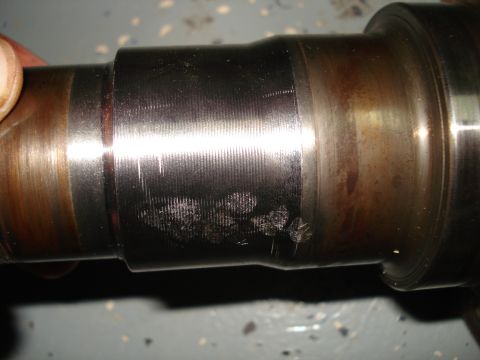

Some scars on the 85 spindle. I guess the last person who worked on it banged it around a little.
465 hits | 52.11 KB | Posted: 9/8/06
Some scars on the 85 spindle. I guess the last person who worked on it banged it around a little.

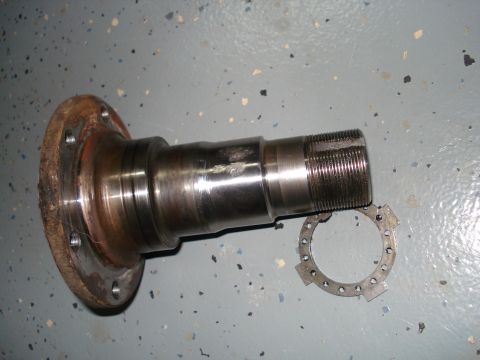

This shot shows the marks on the opposite side of the spindle.
466 hits | 55.57 KB | Posted: 9/8/06
This shot shows the marks on the opposite side of the spindle.

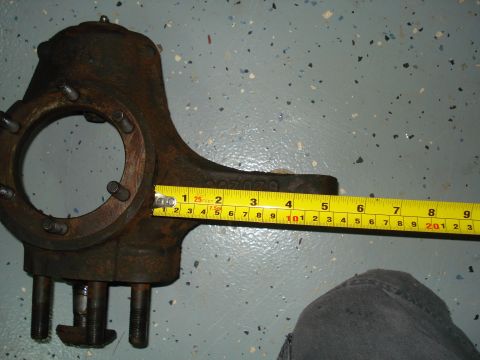

Shows me measuring the arm on the knuckle. Its about 5.4 inches, the angle on the camera is funny.
469 hits | 63.35 KB | Posted: 9/8/06
Shows me measuring the arm on the knuckle. Its about 5.4 inches, the angle on the camera is funny.

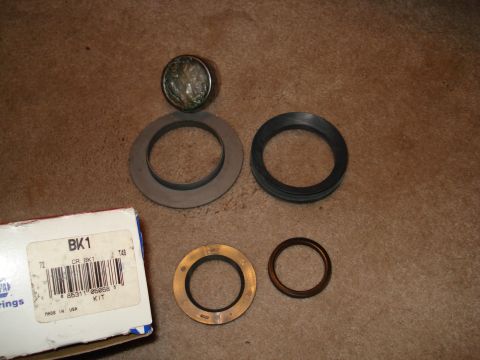

This is a spindle bearing kit from napa. Got one for each side.
421 hits | 63.78 KB | Posted: 9/12/06
This is a spindle bearing kit from napa. Got one for each side.

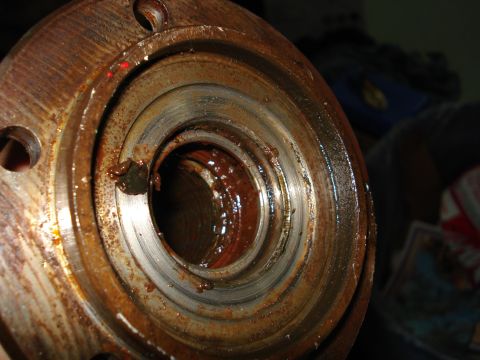

Spindle bearing I beat up trying to take it off.
393 hits | 74.44 KB | Posted: 9/12/06
Spindle bearing I beat up trying to take it off.

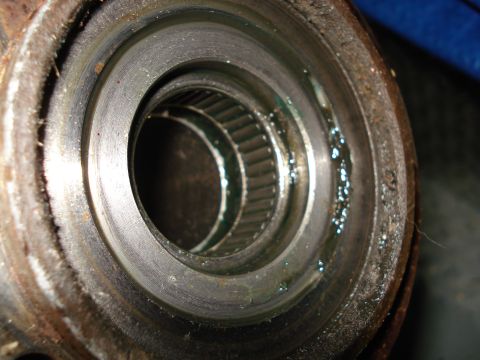

Spindle bearing.
405 hits | 72.68 KB | Posted: 9/12/06
Spindle bearing.

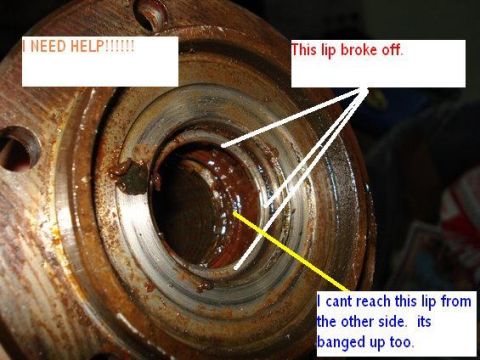

This is a problem i am dealing with.
448 hits | 69.43 KB | Posted: 9/18/06
This is a problem i am dealing with.

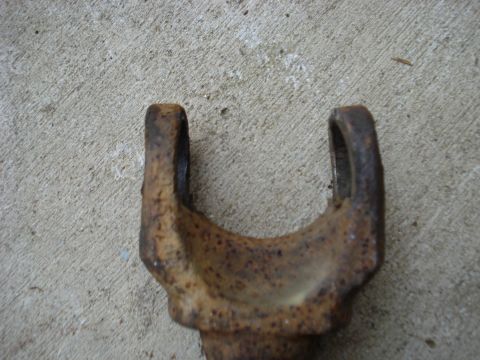

See the bent part??? is it still good??
449 hits | 80.19 KB | Posted: 3/23/07
See the bent part??? is it still good??

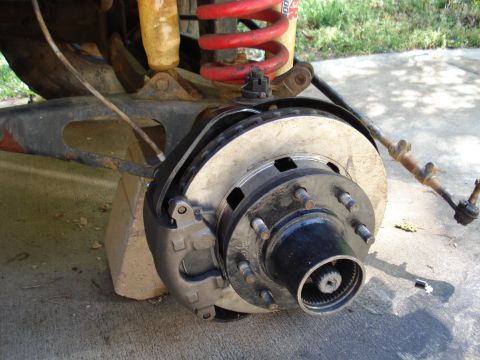

One side done (minus the hub)
475 hits | 84.23 KB | Posted: 4/2/07
One side done (minus the hub)

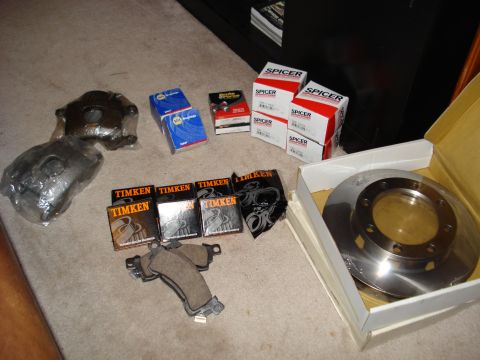

All the new parts for the 8 lug ttb
All the new parts.JPG
460 hits | 69.62 KB | Posted: 5/3/07
All the new parts for the 8 lug ttb
