1996 Ford Bronco

documented by 96broncoman 420 photos documented since 8 years documented ♡ Follow this build

The story

"Big Mike" rear bumper
Herculiner entire interior
Overhead console
OBA with 3 gal. tank
E-Fan with adjustable thermostat
Dual optima batteries( one yellow top, 1 red) with 2Ga. cable and soldered terminals Quick acces power in front grill
Extra interior/underhood lights
CB Radio with PA speaker
Extra under hood battery tray for storage
Extended Breather Lines
Upgraded interior panels with panels from an Eddie Bauer. Added factory power locks window and mirrors.
Upgraded Gauges(added Factory Tach) and added low fuel light. — 96broncoman

Day one vs. today

Drag to compare 2005 against 2013.

1996 Ford Bronco in 2013

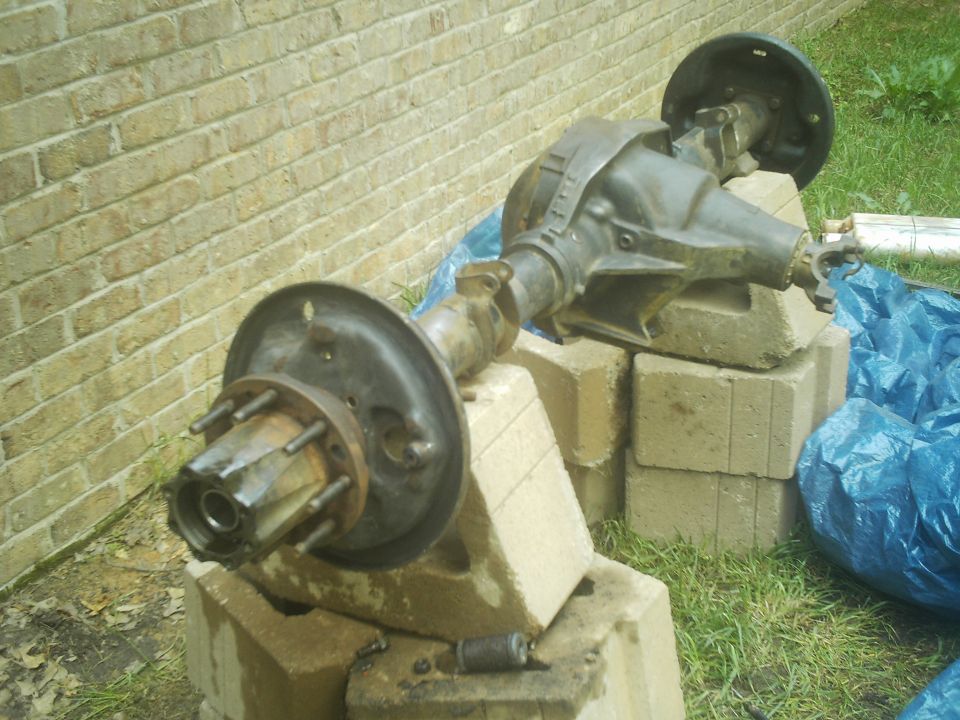

1996 Ford Bronco in 2005
2005 2013

Photo history

420 photos across 8 years — drag the dot to travel through this vehicle’s life. Captions are the owner’s; where there isn’t one, the AI caption fills in.

2005

5 photos added

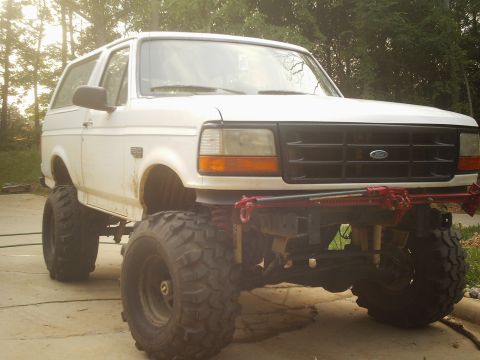

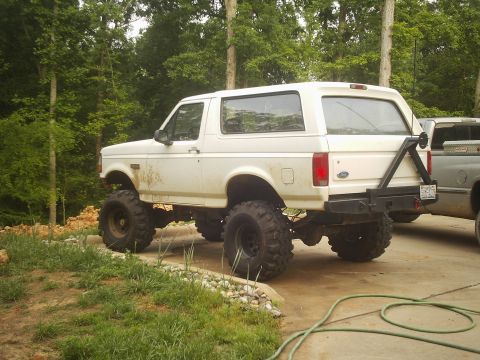

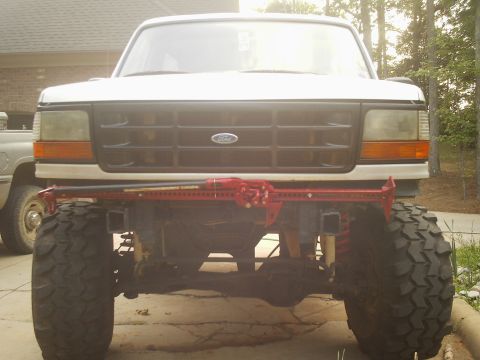

1996 Ford Bronco — Axle shortly after buying it in 5/05 1996 Ford Bronco — Front of white lifted Ford on big mud tires with red Hi-Lift jack mounted across front White lifted Ford Bronco on large mud tires, 3/4 front view on driveway White lifted two-door Ford Bronco on mud tires with rear tube bumper, parked on driveway. 1996 Ford Bronco — Drum Brake Parking brake lever piece.

60 photos added — showing 8

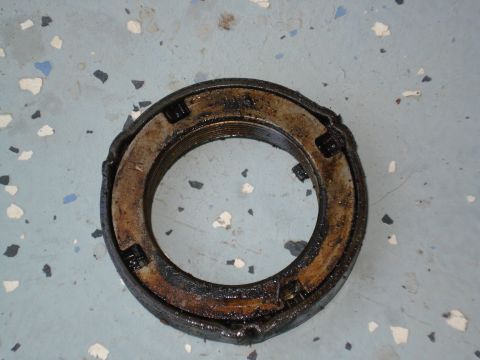

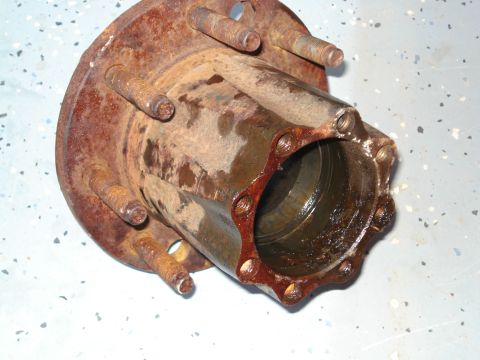

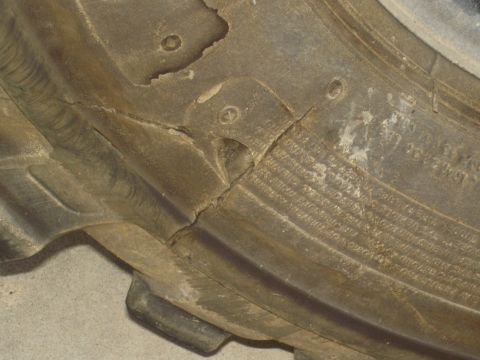

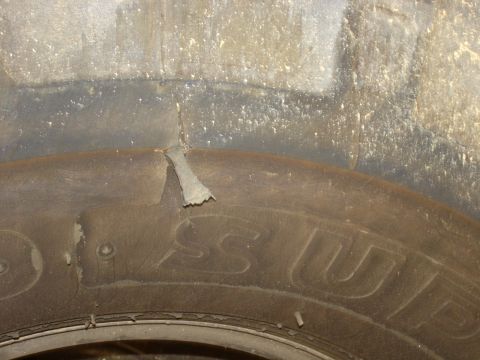

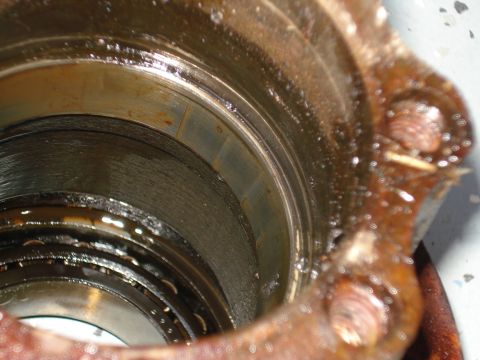

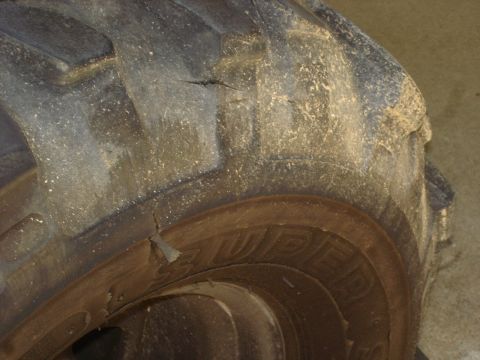

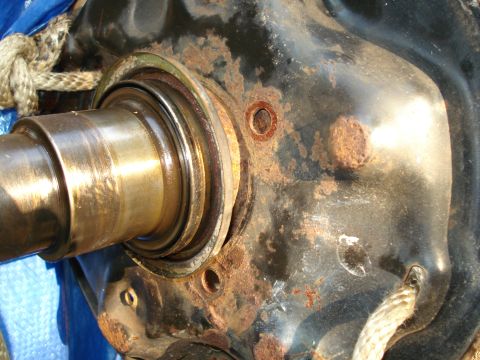

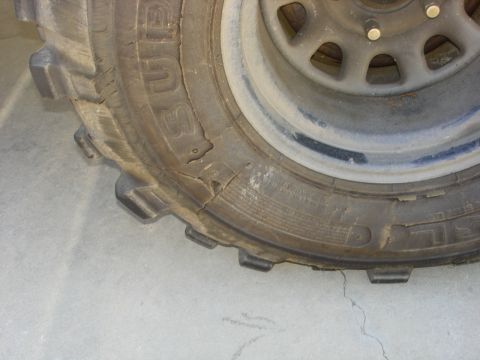

1996 Ford Bronco — Sharp rocks... Cracked and dry-rotted sidewall of an old tire showing splitting rubber 1996 Ford Bronco — Gash on the 2nd damaged tire. Worn off-road tire tread and sidewall reading SUPER on the lower bead Greasy spindle nut retainer ring lying on a paint-spattered floor Rusty hub and bearing assembly with wheel studs removed from an axle 1996 Ford Bronco — The outer bearing cup, still in the hub. 1996 Ford Bronco — This shows the piece of the hub that is still on the axle. I need to remove it to take the brake backing plat…

100 photos added — showing 8

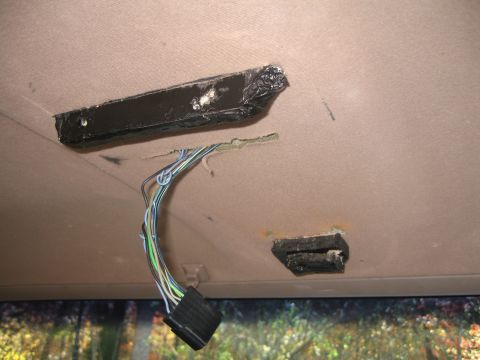

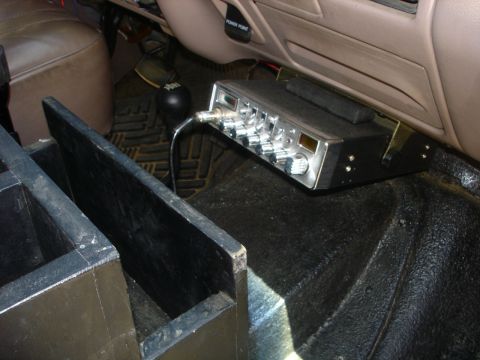

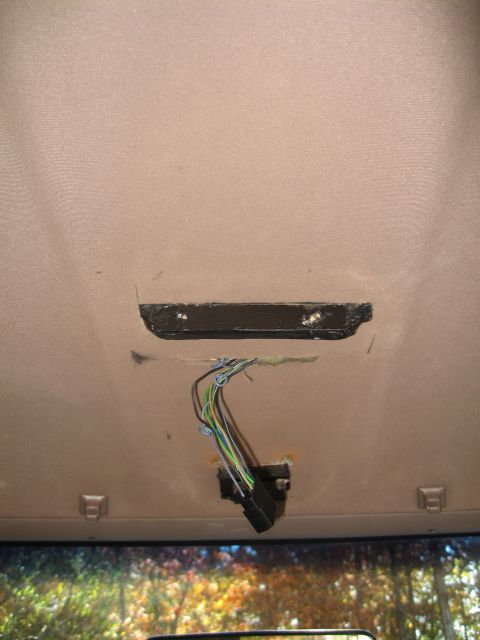

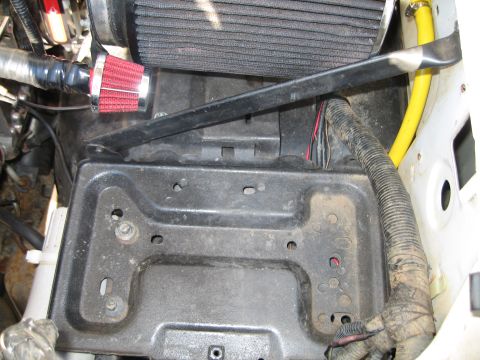

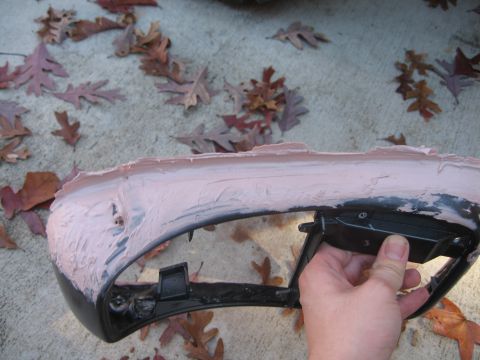

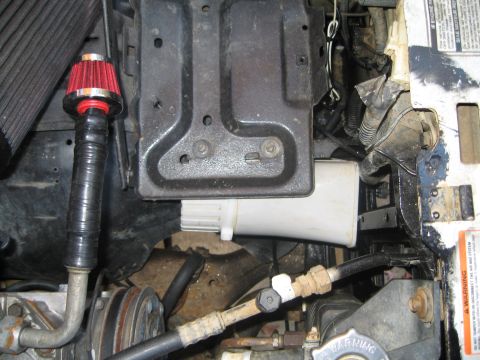

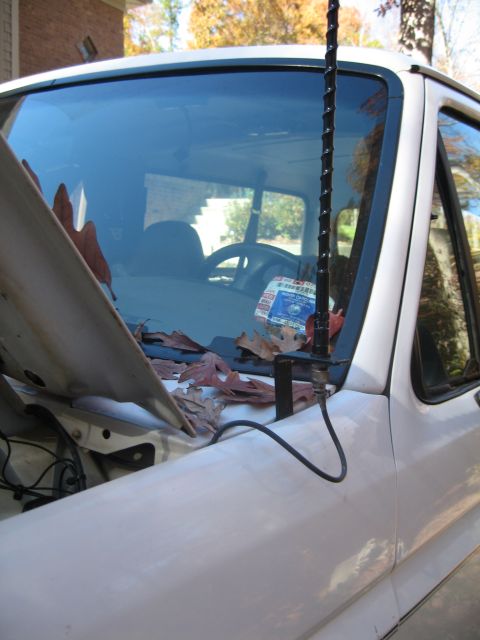

1996 Ford Bronco — The CB is mounted under the dash. The block is wedged in on top to keep it at that angle so it doesnt interfe… 1996 Ford Bronco — This is where I finally decided to mount my antenna. It is symmetrical to the stock antenna position. I bent… 1996 Ford Bronco — This is the PA speaker. It is the most audible when its mounted here. It is on the side of the second battery… 1996 Ford Bronco — Different angle of the tray. 1996 Ford Bronco — This is where the wood is screwed into the headliner. It is also fastened with alot of gorillaglue. Tan vehicle headliner with cut opening exposing wiring and connectors 1996 Ford Bronco — When I first posted pictures, I noticed the large divits in my bondo. Here i am filling in the voids and perf… 1996 Ford Bronco — This is what it looked like after I smoothed it all out.

41 photos added — showing 8

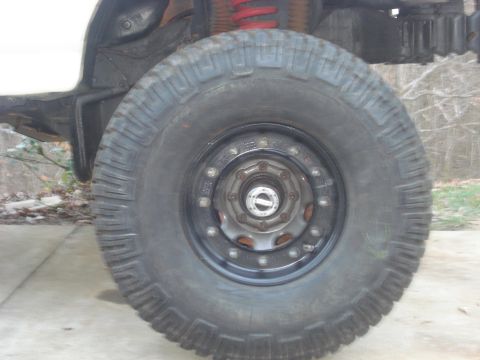

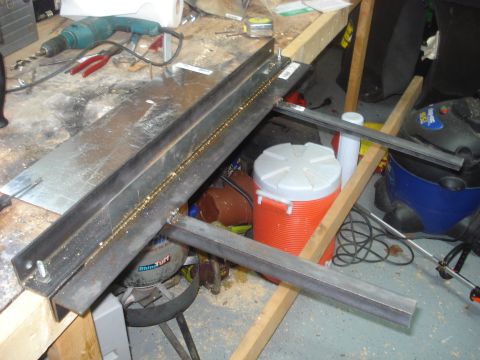

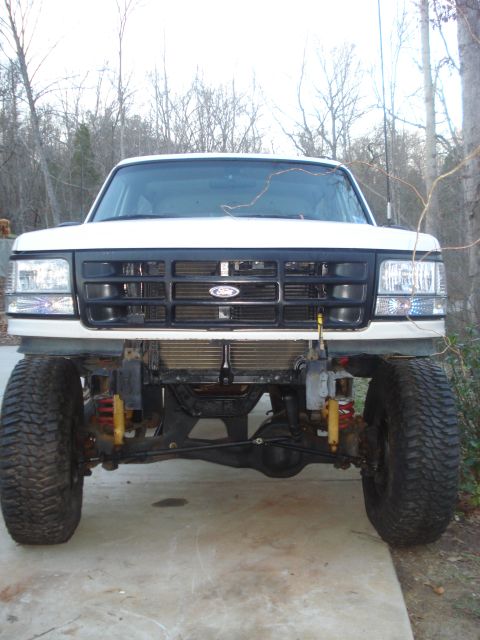

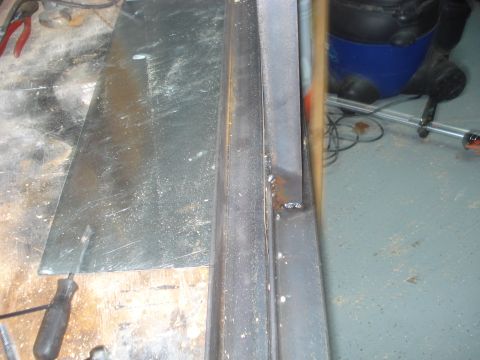

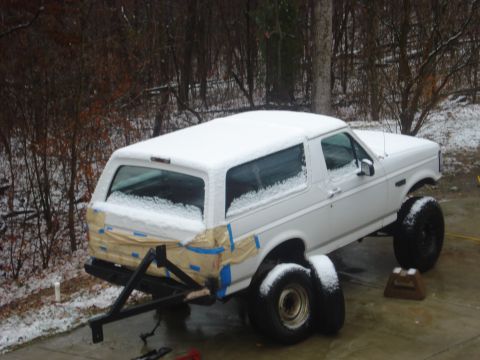

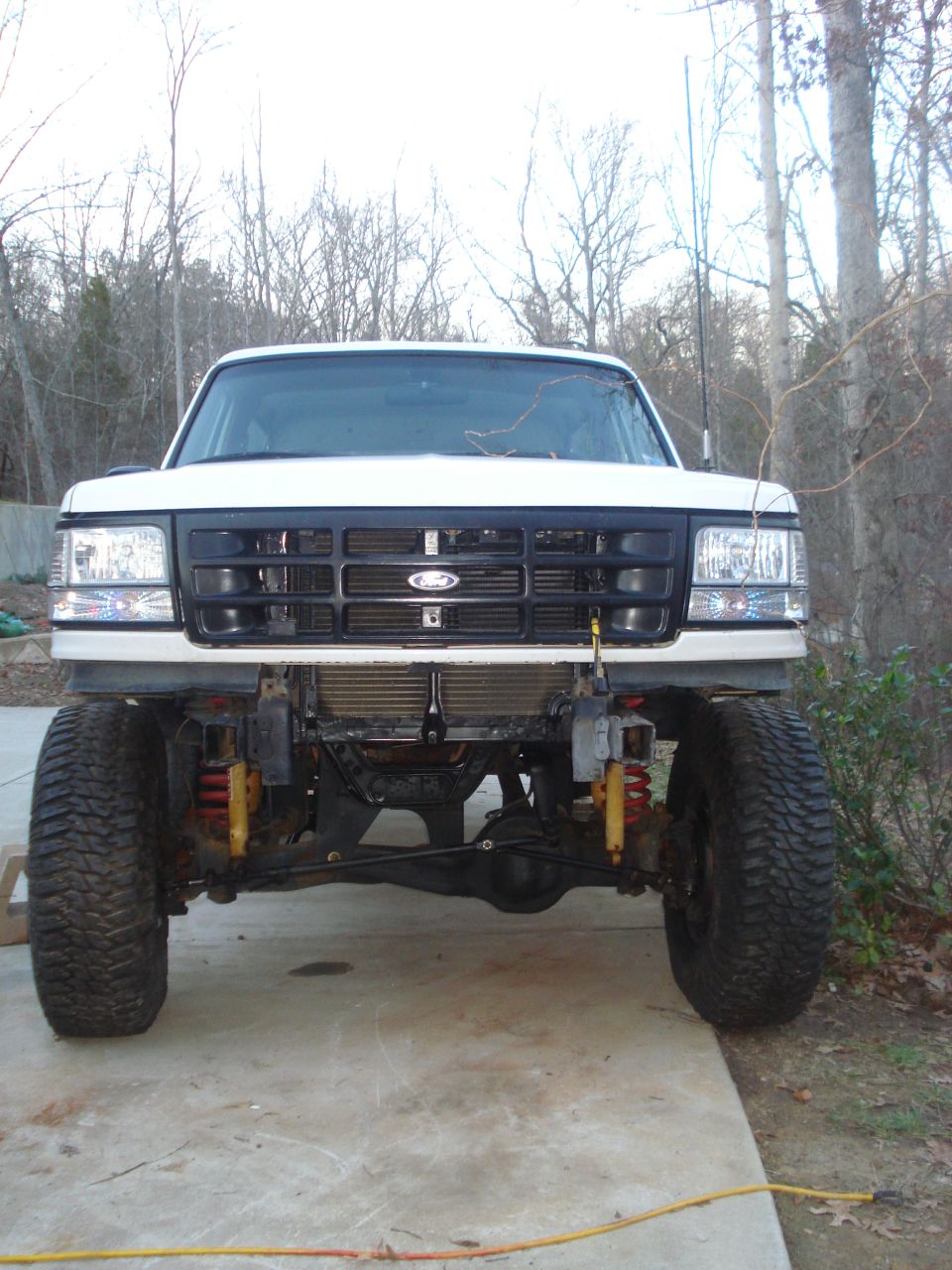

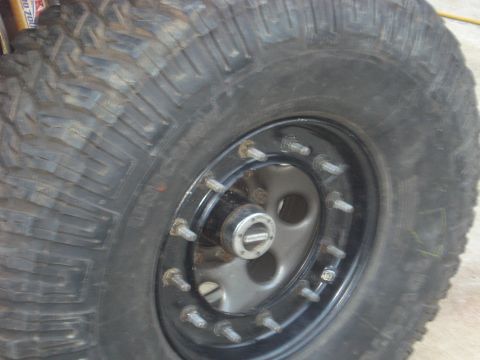

Mud terrain tire on black steel wheel under a lifted vehicle Close-up of mud tire on black wheel with locking hub 1996 Ford Bronco — Underside front view of a white pickup truck chassis Front view of a lifted white Ford Bronco with the grille and bumper removed, showing the suspension and radia… White Ford Bronco with lifted suspension and off-road tires, front view 1996 Ford Bronco — in snow 1-17-08 Steel angle iron with fresh welds on a workshop bench Close-up of welded steel bracket and sheet metal on a bench

44 photos added — showing 8

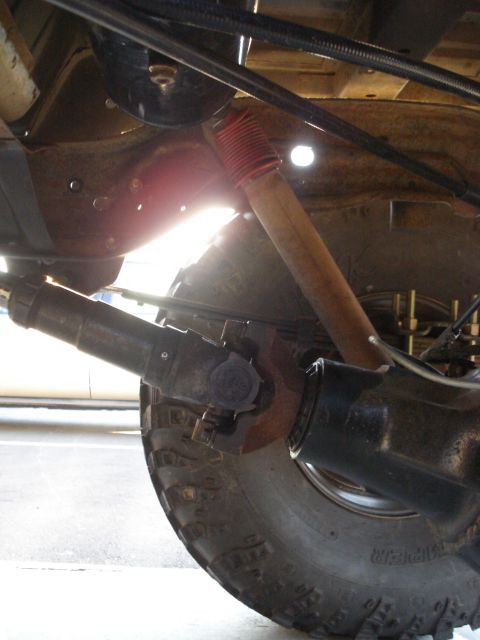

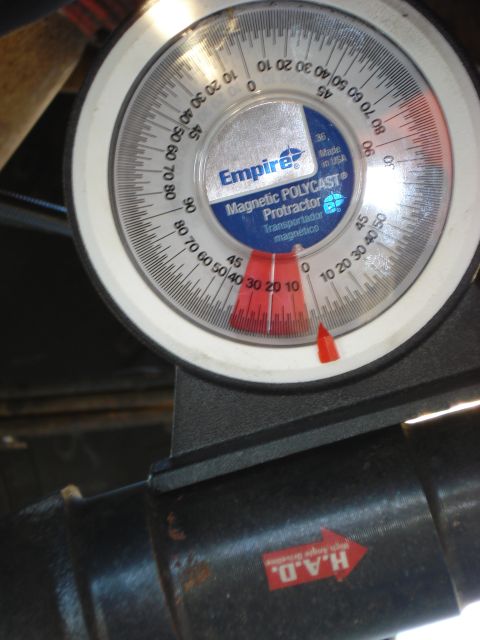

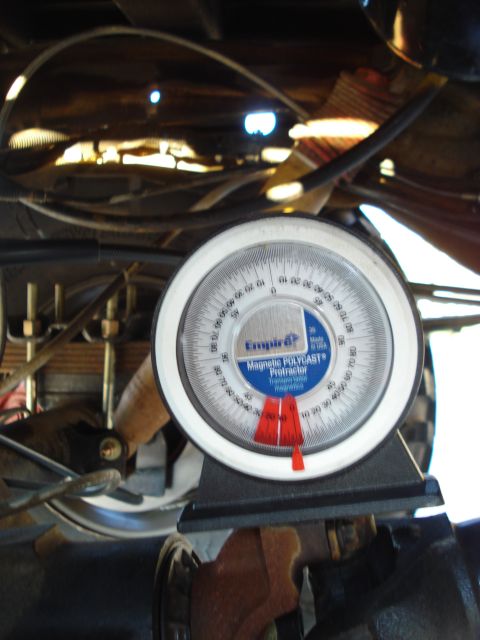

1996 Ford Bronco — pinion angle....no good? 1996 Ford Bronco — this is pictured sitting on the yoke Empire magnetic Polycast protractor angle gauge 1996 Ford Bronco — on driveshaft Empire magnetic Polycast protractor reading near zero 1996 Ford Bronco — Black coupe and silver SUV parked in a driveway in front of a brick house 1996 Ford Bronco — Black Honda Civic parked in front of a brick house 1996 Ford Bronco — Black coupe side view parked in front of a brick garage

11 photos added — showing 8

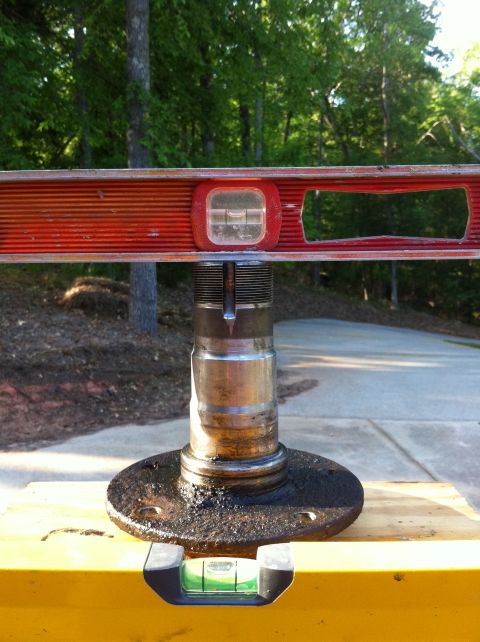

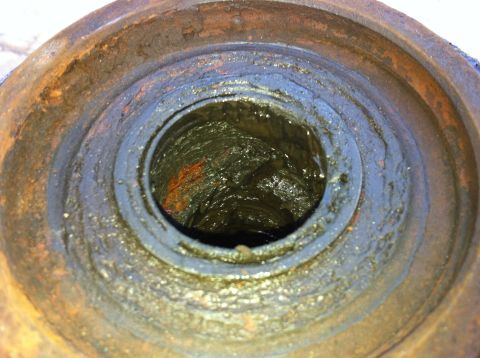

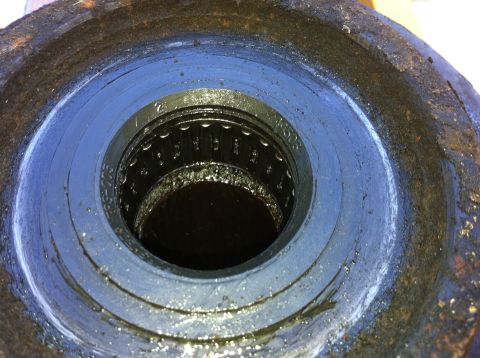

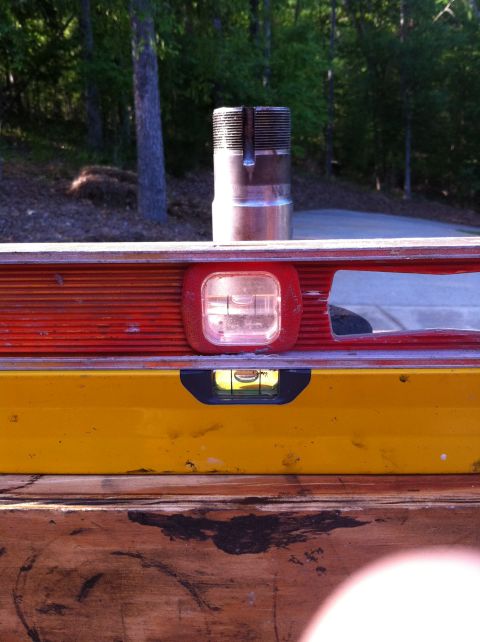

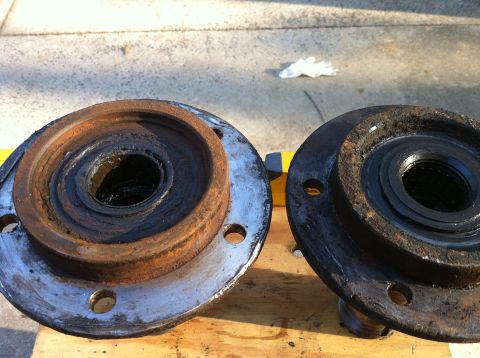

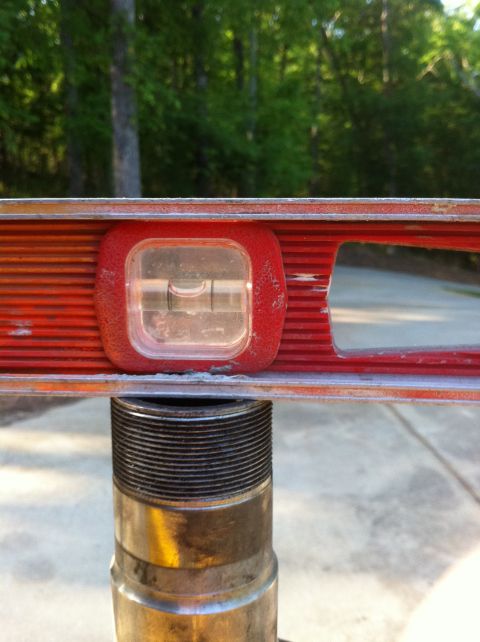

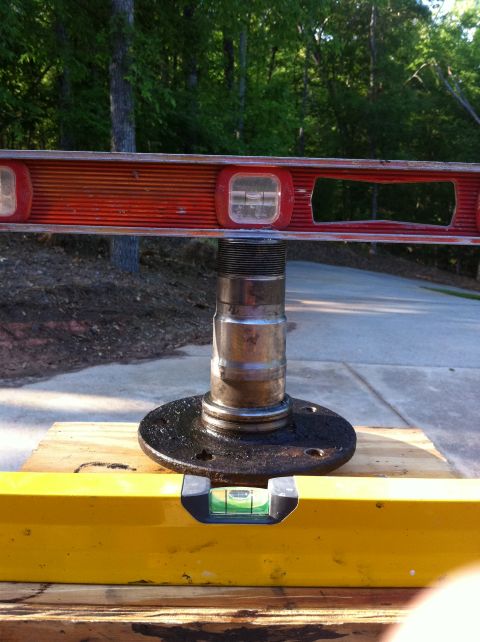

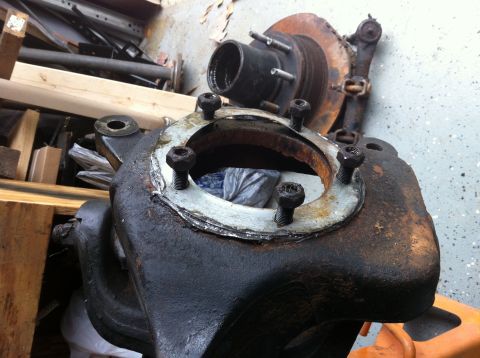

Dana 60 axle housing with hub and rotor, showing rust and wear 1996 Ford Bronco — The left is the 'bent' one and the right is the 'straight' one. 1996 Ford Bronco — Close up of Passenger side (good) spindle 1996 Ford Bronco — Close up of drivers side (bad) spindle. 1996 Ford Bronco — Two levels checking each other and the working surface. 1996 Ford Bronco — Suspect spindle, one direction. 1996 Ford Bronco — Suspect spindle rotated 90 degrees Red level tool with bubble centered over a metal threaded shaft

71 photos added — showing 8

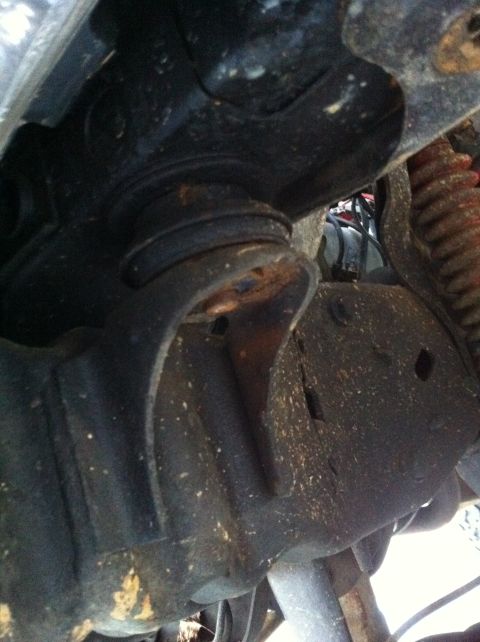

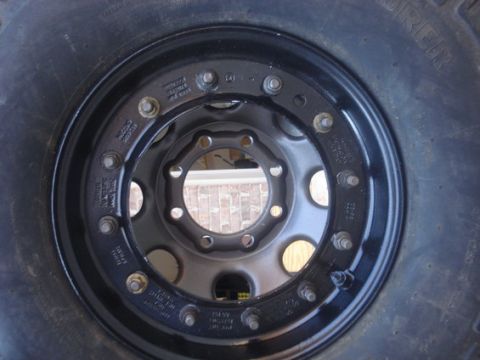

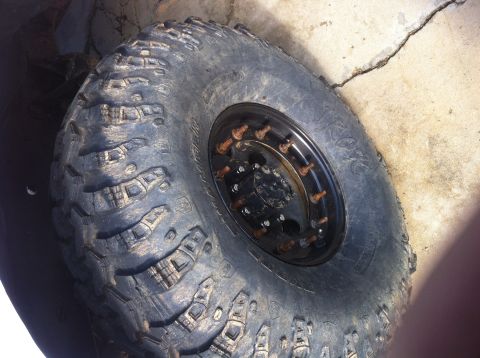

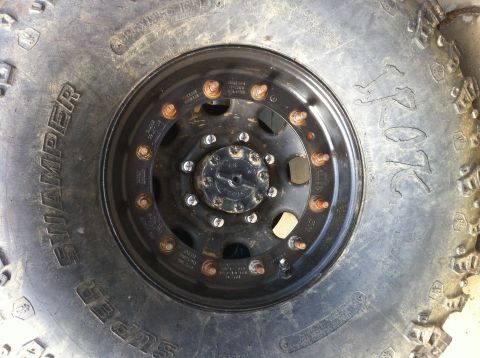

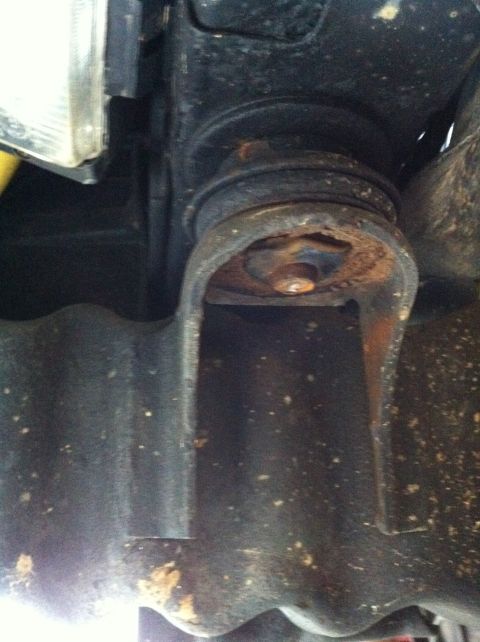

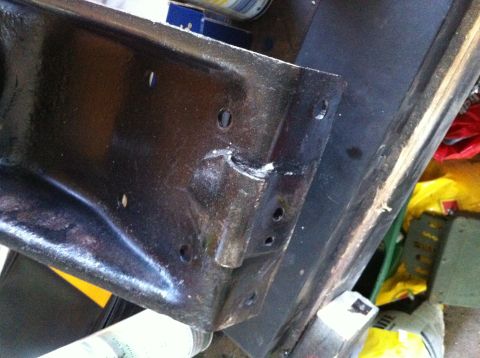

1996 Ford Bronco — Broken Bolt on radiator support. 1996 Ford Bronco — close-up of rusty body mount bushing on vehicle frame Close-up of a black metal vehicle frame component with several bolt holes Close-up of a large off-road tire with a black rim and rusty lug nuts Close-up of a muddy off-road tire and black steel wheel with rusty lug nuts Close-up of a black wheel with lug nuts and a tire. Text is visible on the tire sidewall 1996 Ford Bronco — Mess under the hood. Tackeled the project of fixing this 3/2012 1996 Ford Bronco — Absolute rats nest, tackeled fixing all this 3/2012

1 photo added

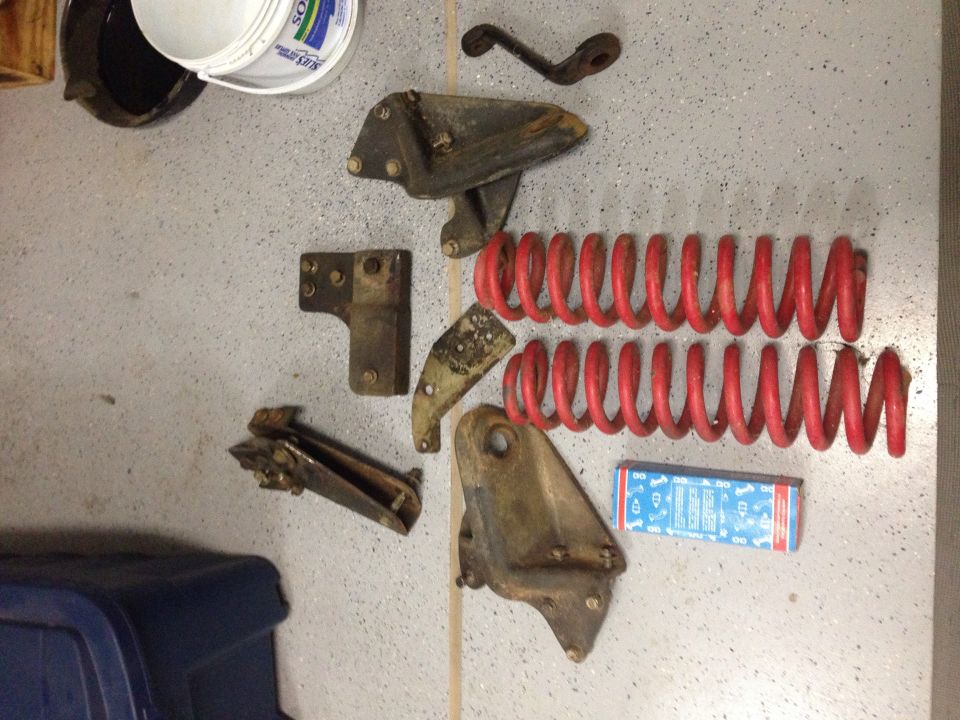

Assorted rusty metal vehicle parts including red coil springs and brackets on a speckled gray floor
