Electric Fan/Reservior Change

From 1996 Ford Bronco, documented by 96broncoman.

17 photos
← Back to this vehicle

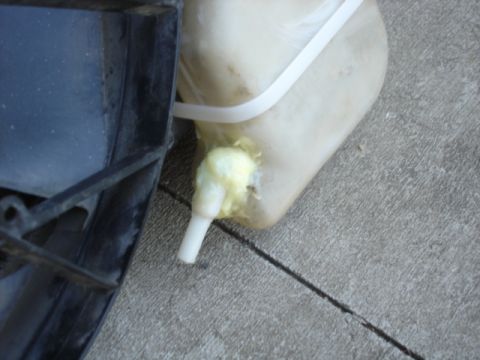

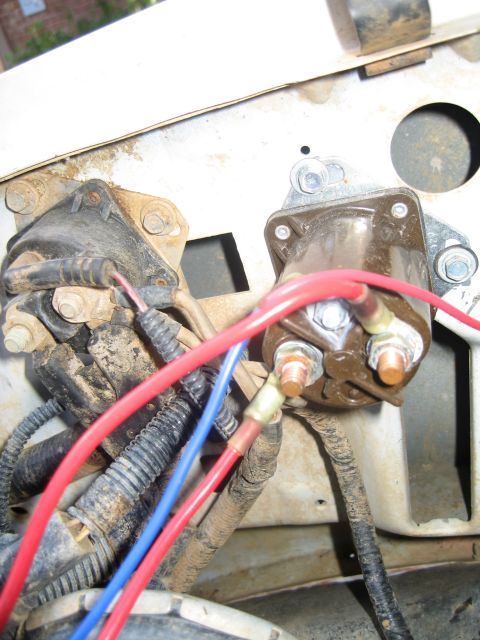

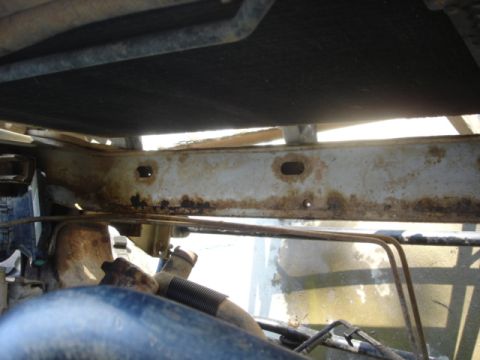

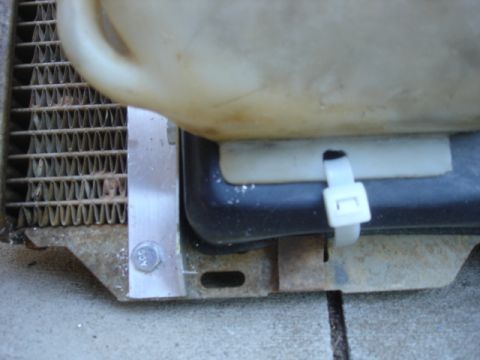

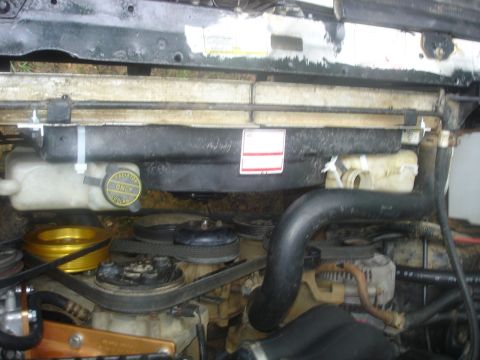

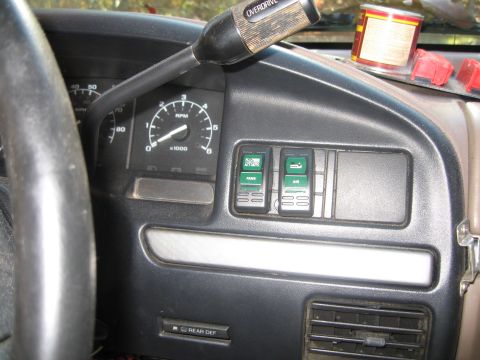

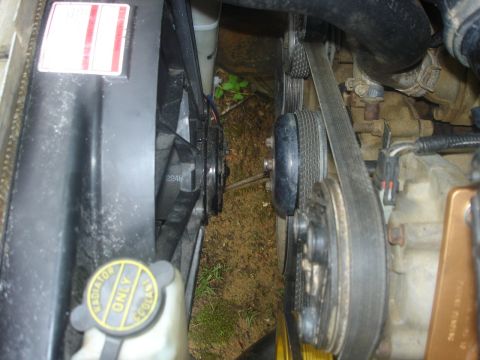

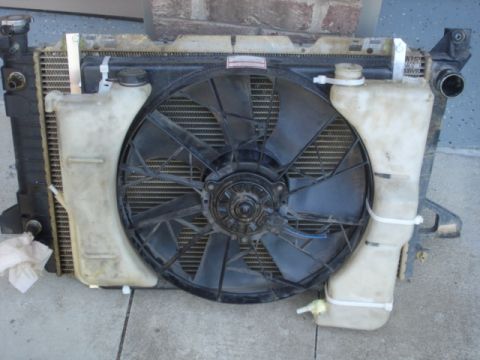

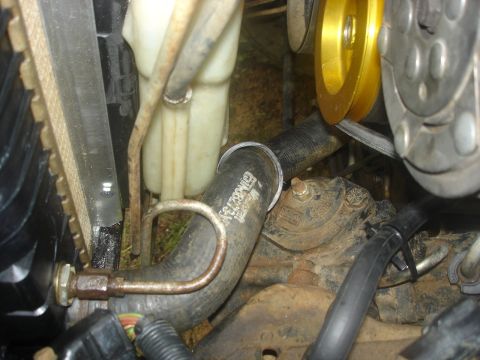

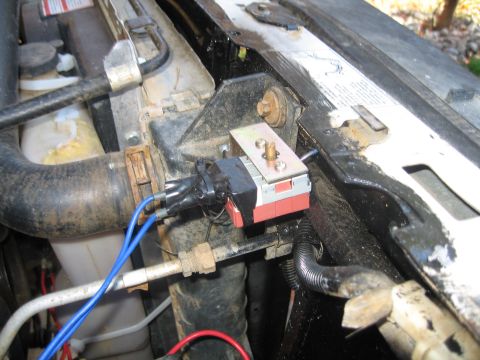

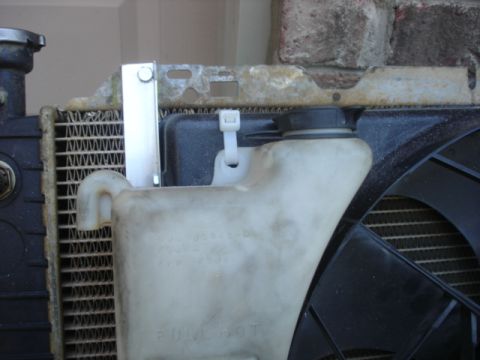

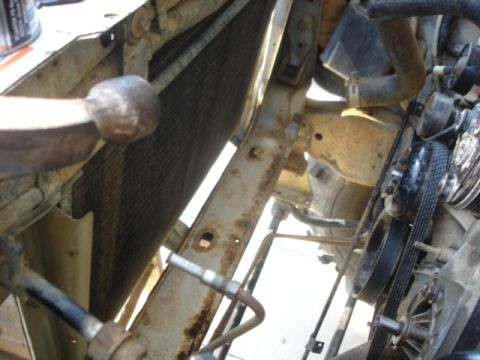

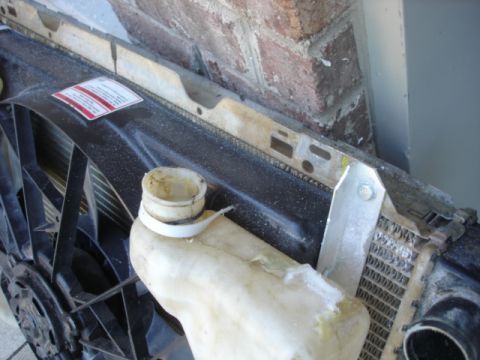

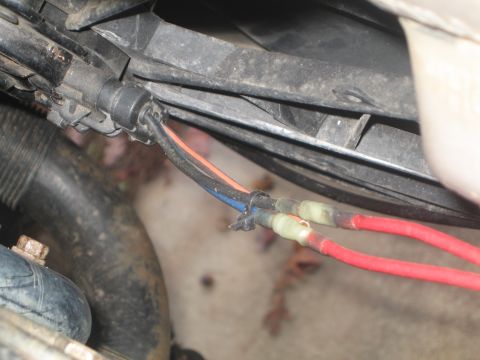

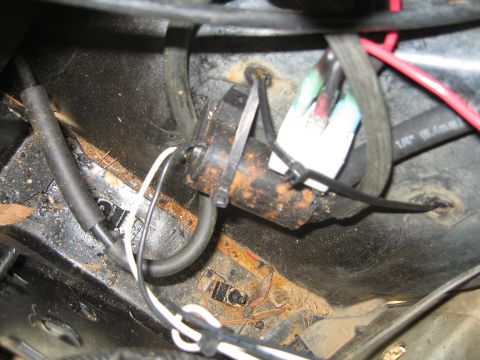

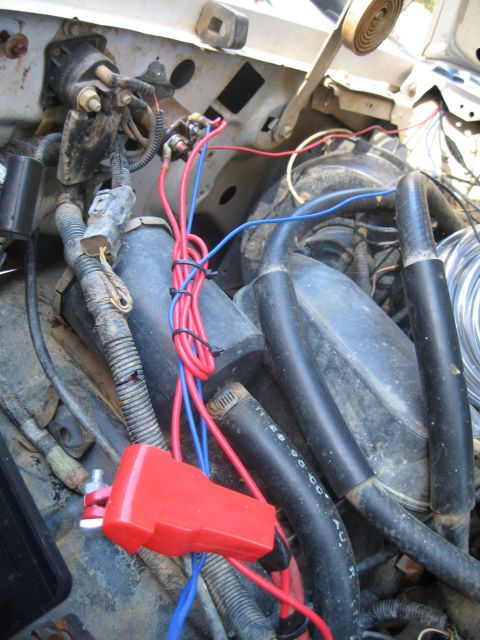

1996 Ford Bronco - This is the fan. Its out of a V8 T-bird. The left reservior is out of a 1989 Town Car and the right rexervior is out of a 1994 Mustang. The… 1996 Ford Bronco - Distant shot with my awesome dog in it. 1996 Ford Bronco - This shows the lower mounting of the mustang reservior. This also shows how the reservior was changed and epoxied back together to allow it… 1996 Ford Bronco - Shows the upper mounting on the mustang reservior. 1996 Ford Bronco - The upper mounting on the town car reservior. 1996 Ford Bronco - The lower mounting on the towncar reservior. 1996 Ford Bronco - Fan mounted in place. 1996 Ford Bronco - This picture shows the fan clearence. 1996 Ford Bronco - Clearence with lower radiator hose. 1996 Ford Bronco - Fan removed, showing alot of hidden rust. 1996 Ford Bronco - Rust that the stock fan/fan shroud hid. It was cleaned up and painted with POR 15. 1996 Ford Bronco - This is the adjustable thermostat that I am using. Adjustable from 32 to 260 degrees. 1996 Ford Bronco - This shows the switch. The switch functions like On/Off/On Thermostat. The other switch is for OBA and its just On/Off. 1996 Ford Bronco - This is a picture of the realy and where I mounted it. 1996 Ford Bronco - This is all the wires I ran in the engine compartment. 1996 Ford Bronco - This is the aftermarket window washer fluid pump. (Its the black cylinder with the white and black wires) 1996 Ford Bronco - Here are the connections I made at the fan. The black is ground and the other one is HIGH.
