On Board Air

From 1996 Ford Bronco, documented by 96broncoman.

17 photos
← Back to this vehicle

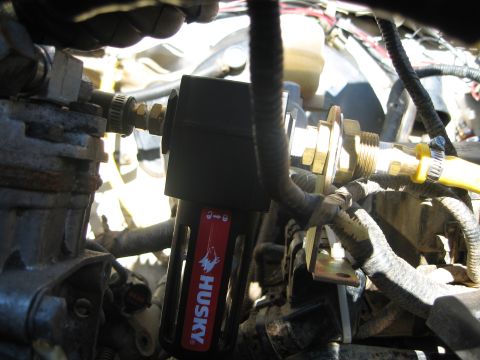

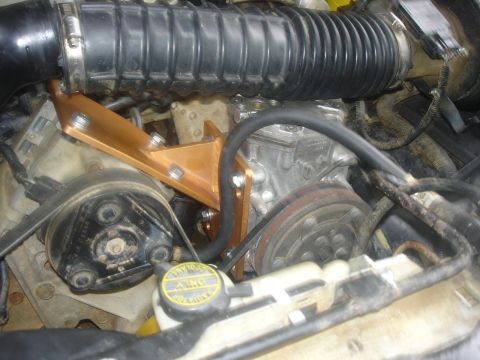

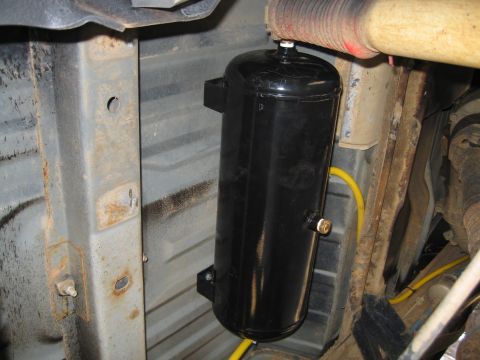

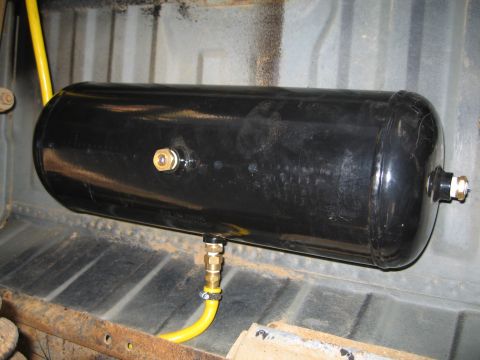

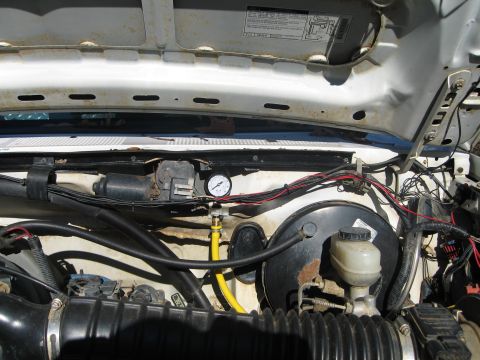

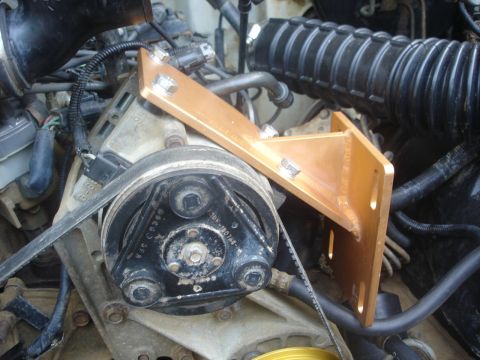

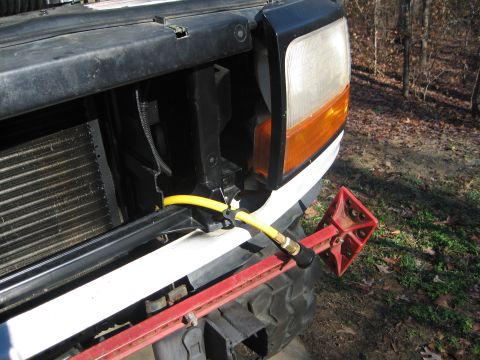

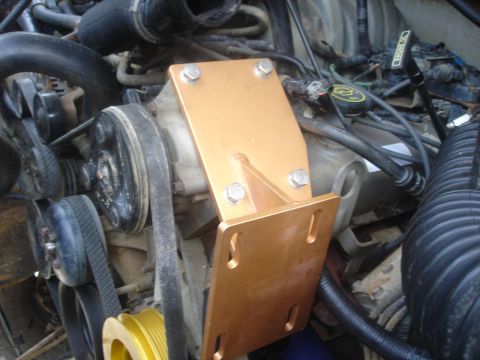

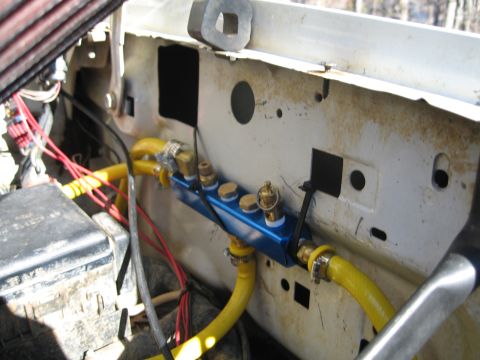

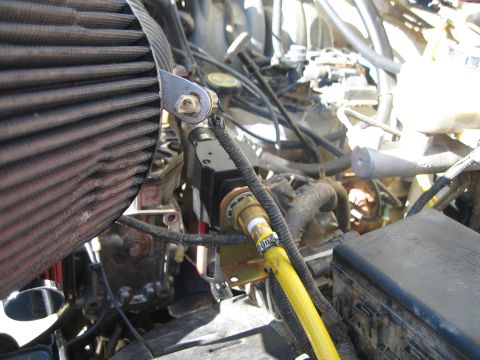

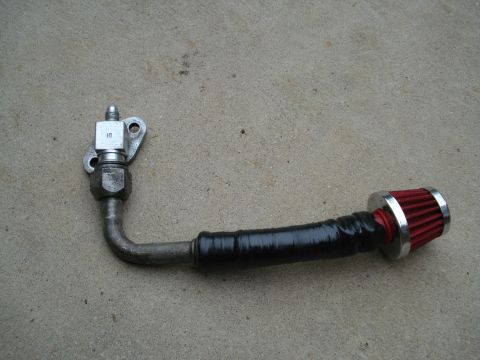

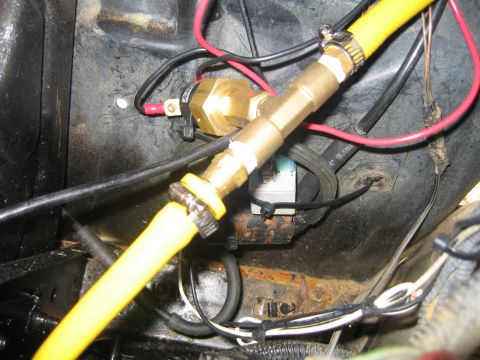

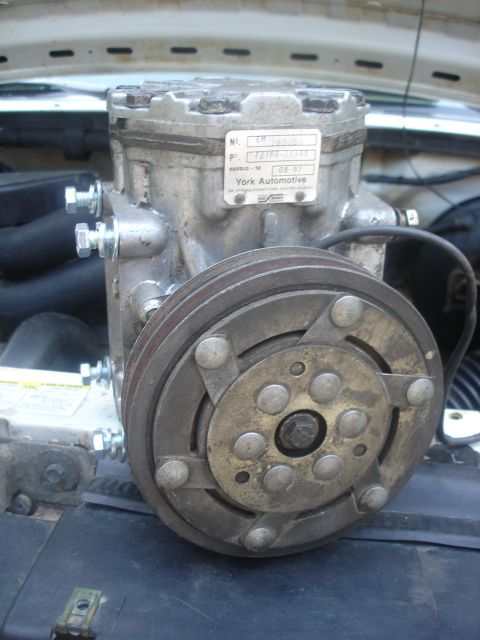

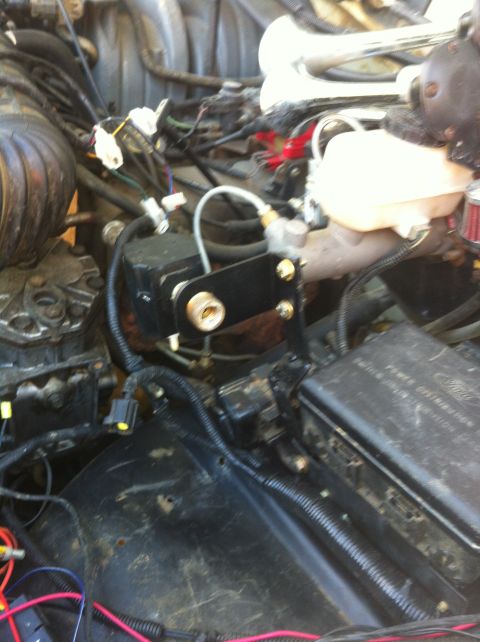

1996 Ford Bronco - York 210 pulled from a 1977 volvo 770, or something like that. 1996 Ford Bronco - BroncoAir bracket mounted 1996 Ford Bronco - 2nd angle. 1996 Ford Bronco - The York mounted. 1996 Ford Bronco - This is the intake tube. It was on the york stock, but i used a hose repait kit to attach the filter. Its all covered in Electrical tape to… 1996 Ford Bronco - Here is the filter and check valve. Again, I used the stock hose and put in a fitting to attatch the filter. 1996 Ford Bronco - Here is a darker picture of the filter and check valve at a different angle. 1996 Ford Bronco - This is the manifold I put in. The hose that goes into the bottom of the manifold is from the compressor. Two outlets are plugged. The righ… 1996 Ford Bronco - Here is where the gauge is mounted. Pic taken from a distance to show where it is mounted in relation to the rest of the engine compartment. 1996 Ford Bronco - Here is the pressure switch. it mounted inline with the section of hose that runs out the front. Its hidden under the storage tray i have i… 1996 Ford Bronco - Here is the line that comes out the front. It is usually tucked in better. 1996 Ford Bronco - Here is the tank. The hose on the goes out the back and the hose in the middle is coming from the engine compartment. 1996 Ford Bronco - 2nd angle. 1996 Ford Bronco - Here is the line out the back. 1996 Ford Bronco - re-did the mount for the check valve 3/2012. This set up is very superior to the crap i had before. Bolts to the bracket that holds the eng… 1996 Ford Bronco - Looking down into the open engine bay of a white truck with the inner fender apron stripped bare, exposing factory punch-outs and surface r… 1996 Ford Bronco - Plugging the oil bypass in an effort to save some oil.
