Brakes 113005

From 1991 Ford Bronco — documented by DcSkater602.

30 photos
← Back to this vehicle

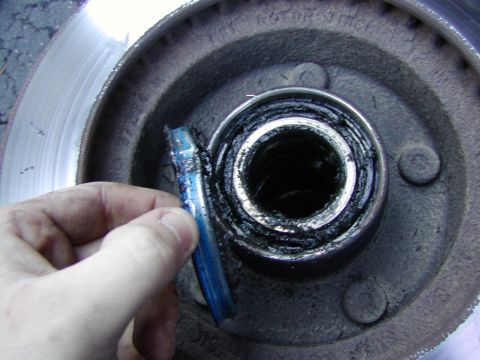

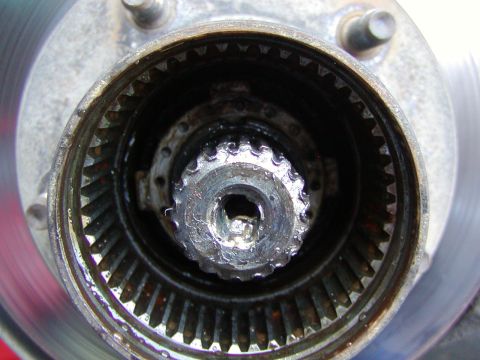

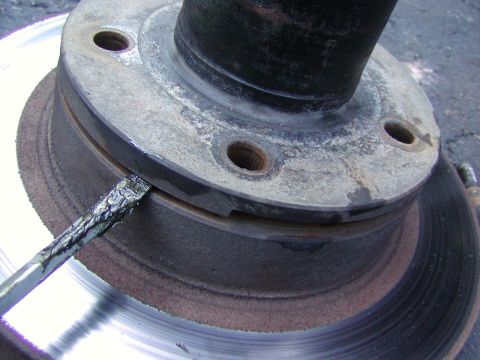

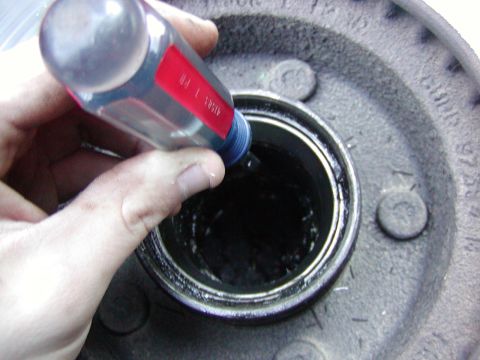

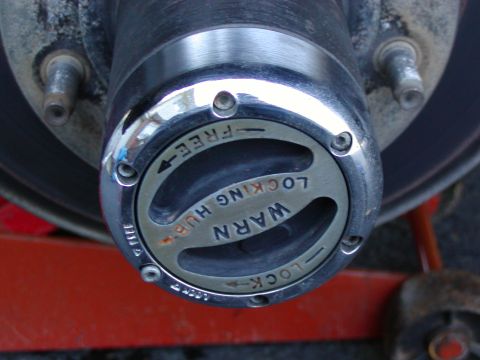

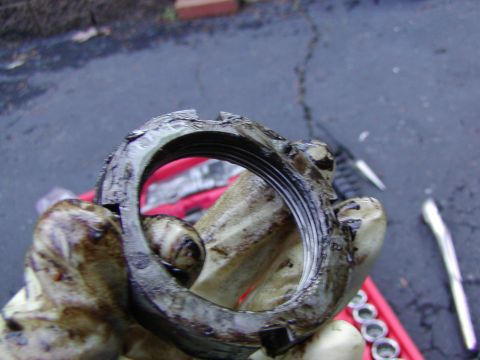

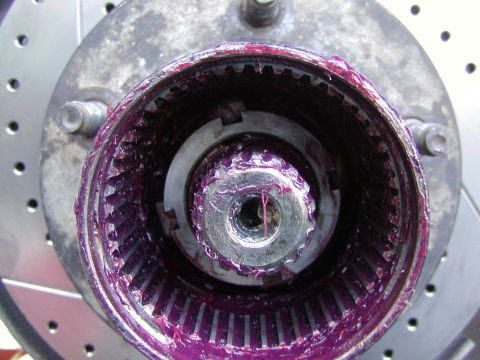

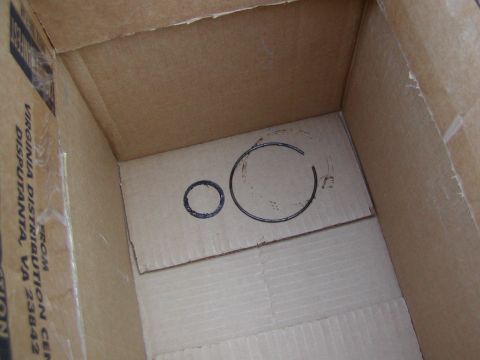

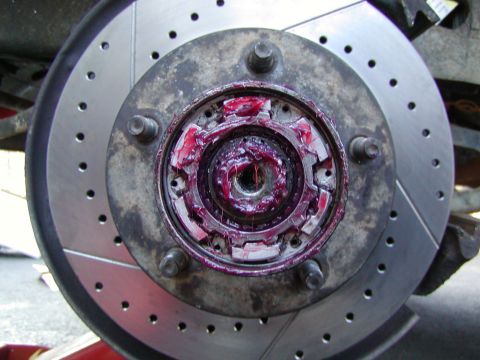

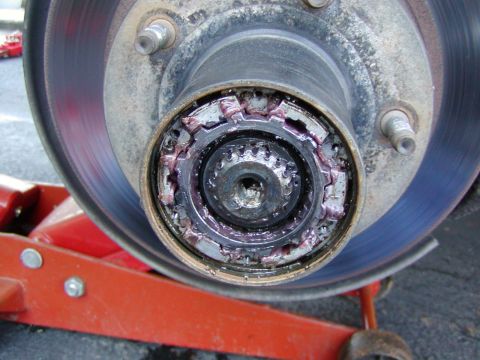

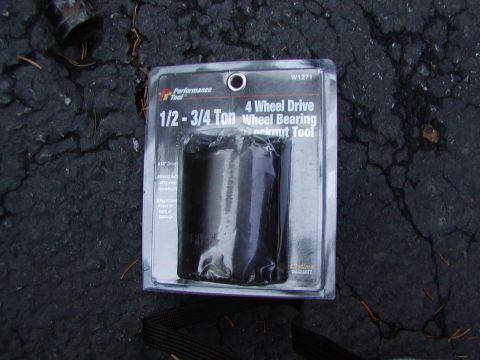

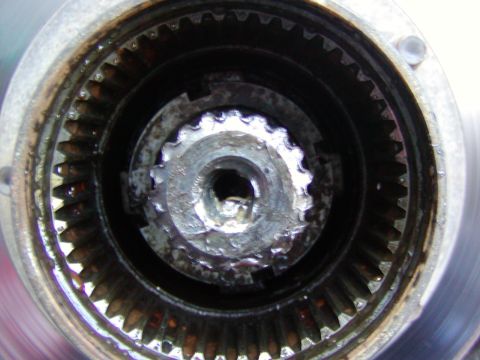

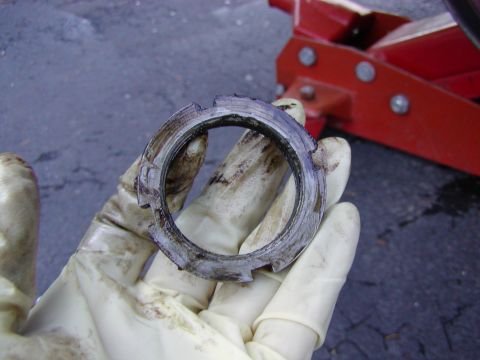

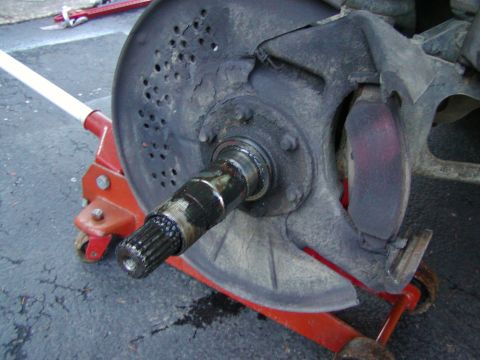

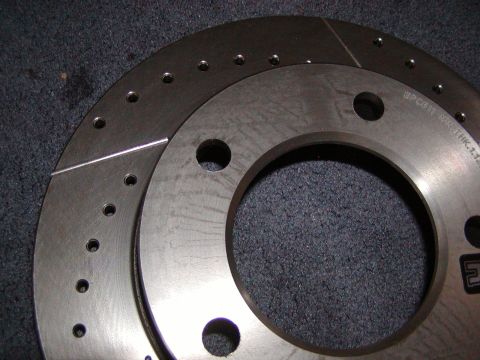

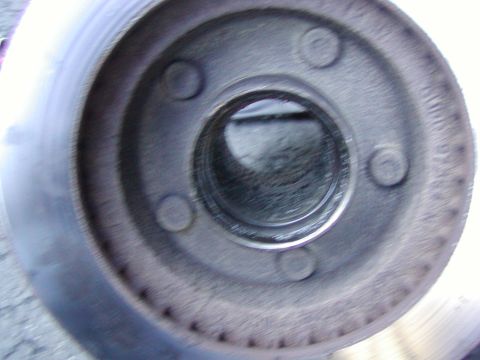

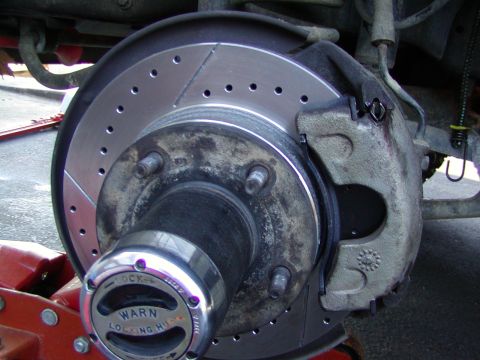

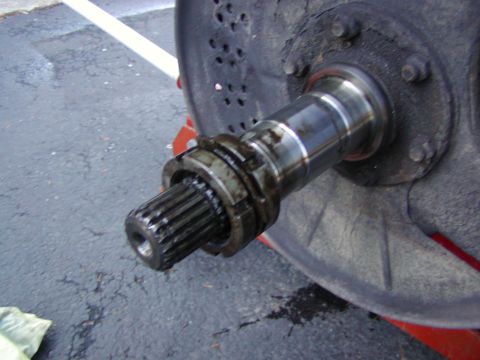

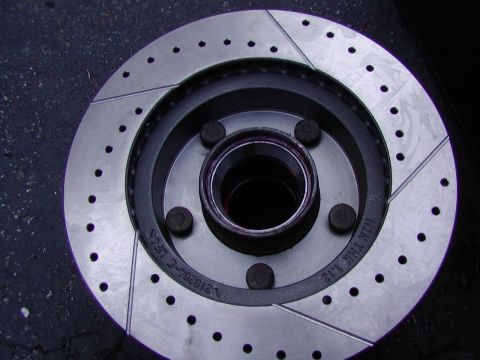

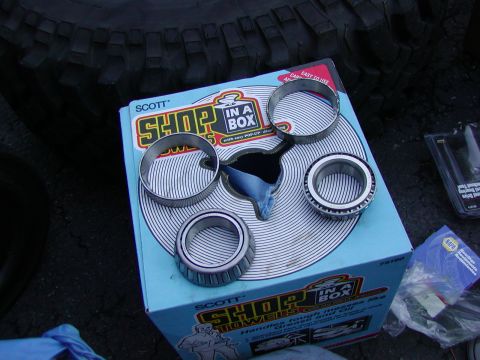

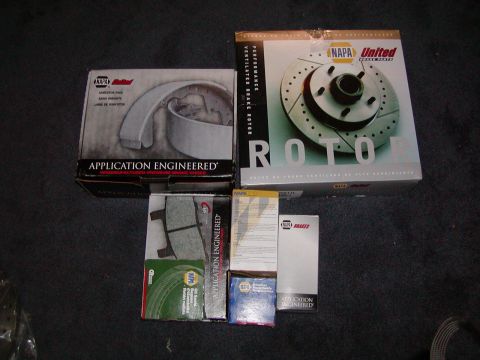

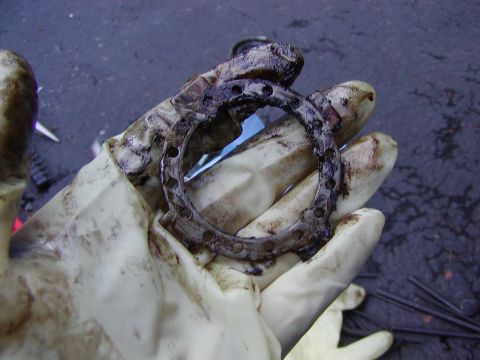

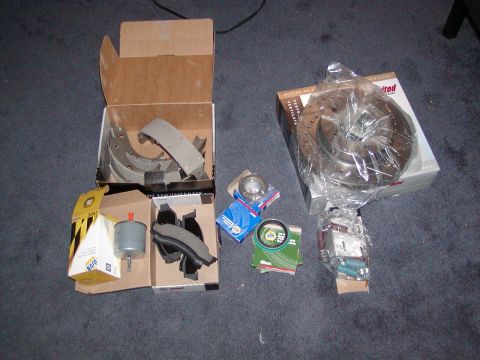

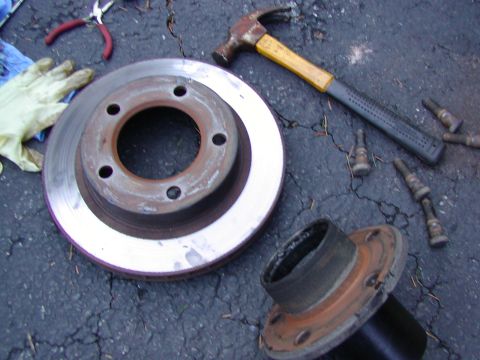

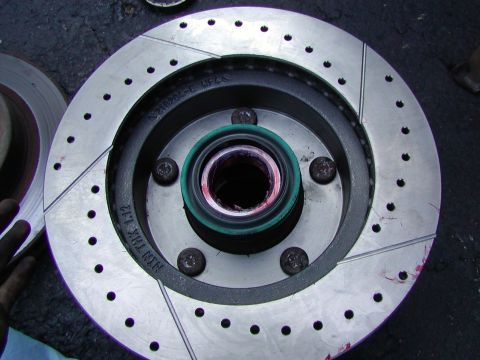

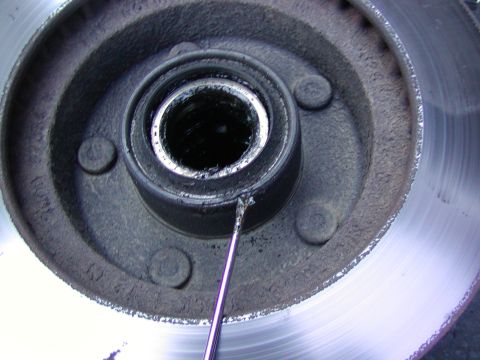

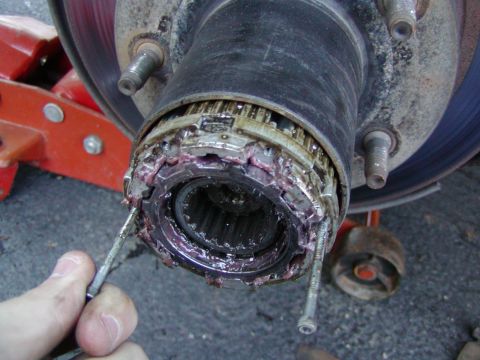

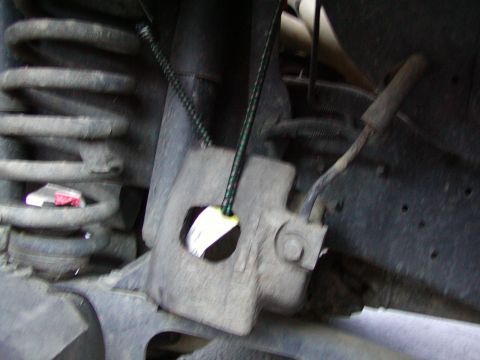

1991 Ford Bronco - new shoes, fuel filter, spring kit, pads, cross drilled rotors and wheel bearings and wheel seals 1991 Ford Bronco - new shoes, fuel filter, spring kit, pads, cross drilled rotors and wheel bearings and wheel seals 1991 Ford Bronco - cross drilled rotors, drilled and slotted. Didnt really need them but i found my breaks glowing 1 too many times so this might help them co… 1991 Ford Bronco - remove the six allen head keys to take off the hub cover 1991 Ford Bronco - hammer the pins out and hang the caliper out of the way. Toss the pads. Use a bungee to hang the caliper. DONT LET IT HANG BY THE BRAKE LINE 1991 Ford Bronco - hub cover removed. here is the maunual hubs internals. remove the outer ring and inner snap ring 1991 Ford Bronco - the outer ring and inner snap ring removed 1991 Ford Bronco - replace two of the screws you removed from the hub cover...Use those as a handle to skide the hub assembly out 1991 Ford Bronco - this is next. There are the lcoking nuts. You need a special tool to remove these 1991 Ford Bronco - youll need one of these...all parts stores have them. 4 tooth socket for 1/2 in drive 1991 Ford Bronco - outer lock ring removed. this may be tight. be careful to keep the tool straight.. i belive the tq is like 75 ft lbs 1991 Ford Bronco - next is a washer seen here 1991 Ford Bronco - washer you are removing... use a pick or small screwdriver 4 this 1991 Ford Bronco - heres the back washer 1991 Ford Bronco - now just pull off the hub...be ready to catch the outer wheel bearing! 1991 Ford Bronco - pry off the wheel seal with a small screw driver and a hammer. 1991 Ford Bronco - pry it off and now you have access to the inner wheel bearing 1991 Ford Bronco - just for reference heres how those nuts go on there 1991 Ford Bronco - hammer out the old bearing races. There is a lip for each one. I used a screwdriver.. A punch would have been wiser... Tap them out in a ci… 1991 Ford Bronco - both races removed. Now hammer(beat the piss) outta the lug nuts from the top and they will press out here 1991 Ford Bronco - pry the hub seperate from the rotor when all lugs are removed 1991 Ford Bronco - seperated 1991 Ford Bronco - get your new bearings and races ready. Install(press) your new races into the hub the inner and outer are different sizes. So there is real… 1991 Ford Bronco - get your grease ready. BTW i like wearing latex gloves for this...keeps things so much cleaner... PACk the bearings, and when you think the… 1991 Ford Bronco - new races installed. Lay the hub back in the rotor and press the wheel studs back through. I had to use a hammer and a punch its tuff 1991 Ford Bronco - once the studs are back in the rotor and hub should be tight. No wiggles between the two. Now install the new wheel seal. Hammer it on unti… 1991 Ford Bronco - reinstall the lock ring with the nipple first, then the washer. the washer slides ina channel and the nipple has to go through one of the h… 1991 Ford Bronco - reinstall the hub 1991 Ford Bronco - reinstall the hub cover. Install the new hub and replace your calipers. Get you wheels on Now rinse and repeat 1991 Ford Bronco - Diagram shows brake caliper and rotor assembly, with "front" labels indicating orientation.
