1994 Ford Bronco F-Series instrument panel fuse box diagram and…

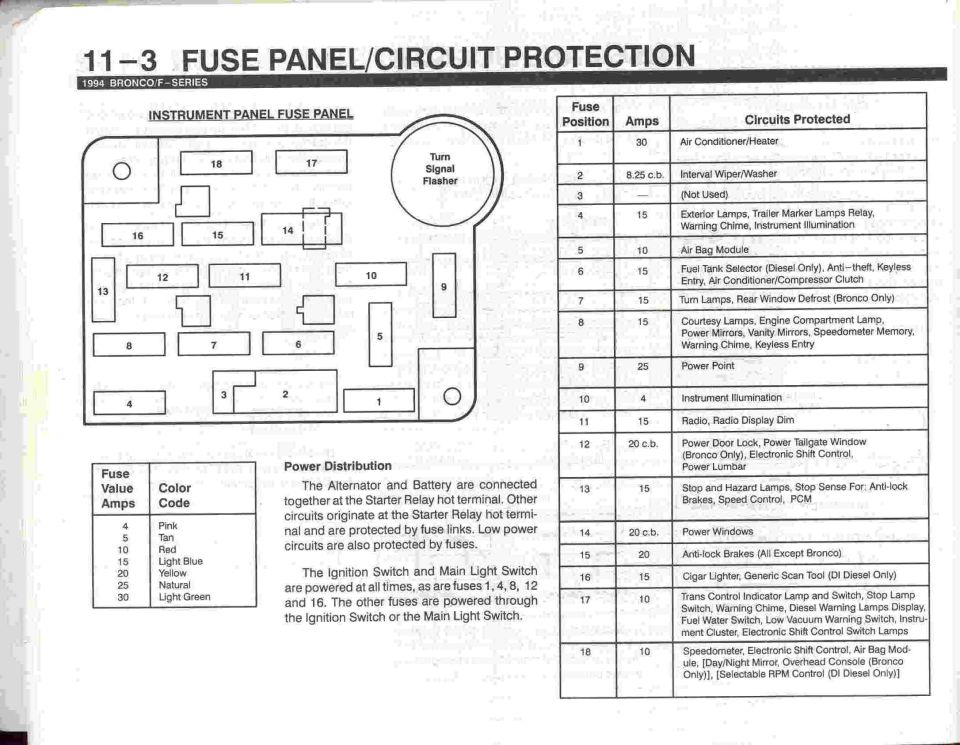

1994 Ford Bronco F-Series instrument panel fuse box diagram and circuit protection chart
1994 Ford Bronco F-Series instrument panel fuse box diagram and circuit protection chartOriginal file
1994 Ford Bronco F-Series instrument panel fuse box diagram and circuit protection chart

'94 EVTMView all 158

1996 Ford Bronco photo Turn/stop/hazard lamps wiring schematic page 90-2 for 1994 Bronco and F-Series 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1994 Ford Bronco F-Series instrument panel fuse box diagram and circuit protection chart 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 158photos in this albumView all

Underdash Fuse Panel
