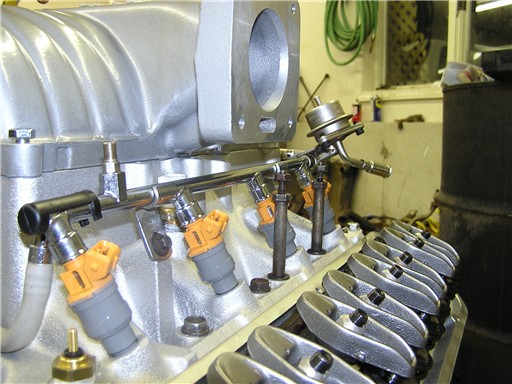

Fuel rail, orange-clipped injectors and exposed roller rockers o…
Engine rebuildView all 27

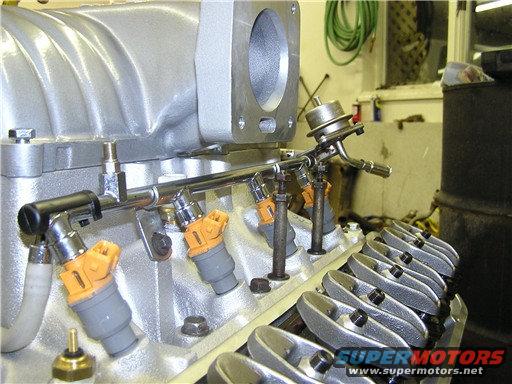

Close-up along a V8's lower intake manifold showing a bank of gray fuel injectors with orange clips seated under a polished stainless fuel rail, with the fuel pressure regulator mounted at the crossover. The throttle body flange opening is visible on the aluminum upper plenum at left and the roller rocker arms sit exposed on the head at right.
