SuperPro fitting instructions #2415IS bush orientation for kits…
Reference · 1992-1996 MX-3All 3 service procedures

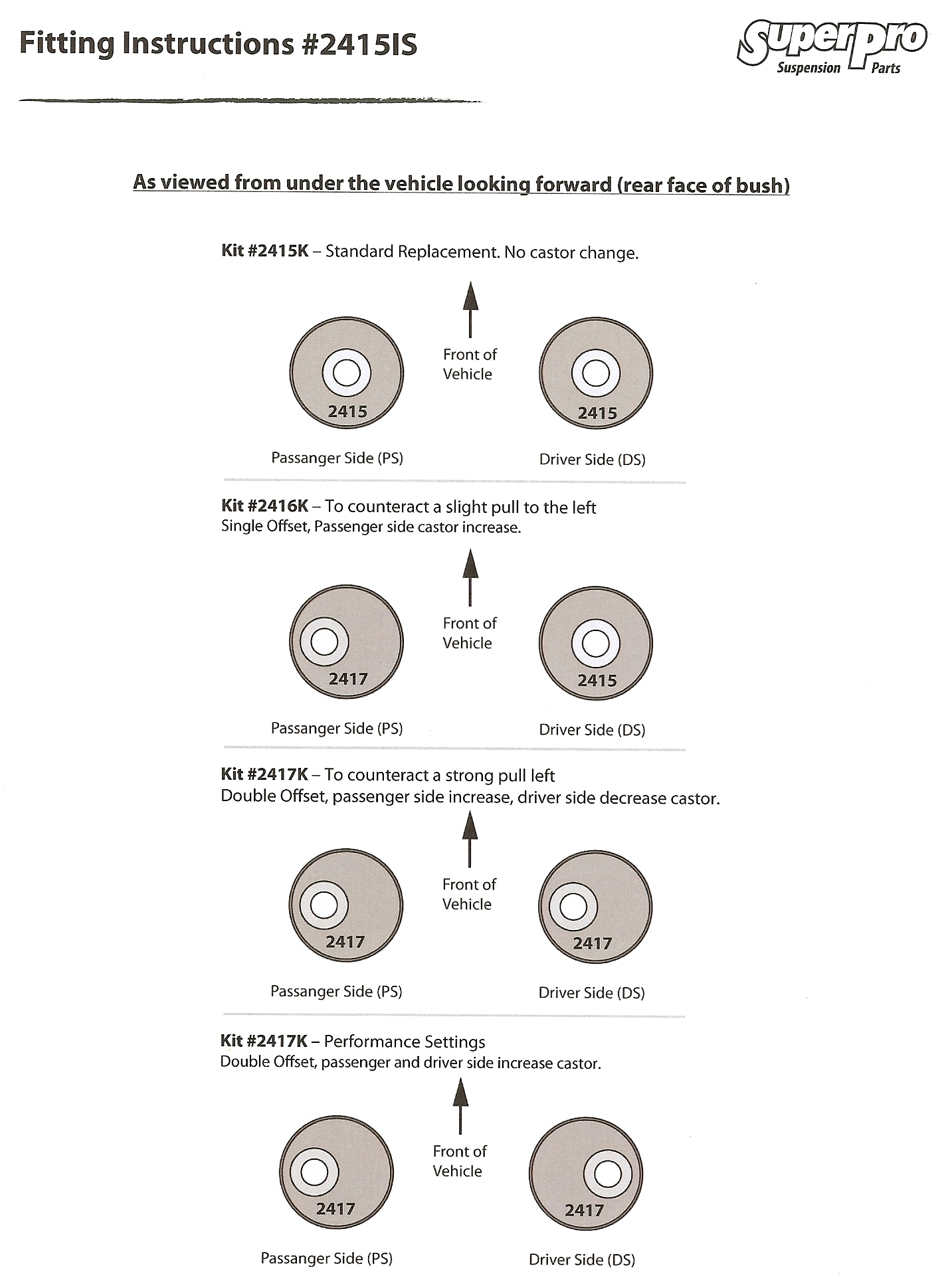

SuperPro fitting instructions #2415IS showing bush orientation per side for kits 2415K, 2416K and 2417K to set standard, offset or performance castor.
Part of 1992-1996 Mazda MX-3 Service Procedures
Fitting Instructions #2415lS 5"er Suspension Parts As viewed from under the vehicle lookinlforward ear face of bush) Kit #2415K A Standard Replacement. No castor change. l Front of Vehicle Passanger Side (PS) Driver Side (DS) Kit #2416K A To counteract a slight pull to the left Single Offset, Passenger side castor increase. l Front of Vehicle Passanger Side (PS) Driver Side (05) Kit #2417Kv To counteract a strong pull left Double Offset] passenger side increase, driver side decrease castor. l Front of Vehicle Passanger Side (PS) Driver Side (DS) Kit #2417K Performance Settings Double Offset, passenger and driver side increase castort l Front of Vehicle Passanger Side (PS) Driver Side (DS)
