SuperMotors SuperMotors SUPERMOTORS Search — try “orange Bronco on 35s”
Join
Home/ Registry/ Ford/ Bronco/ “tractor”/ Photo supermotors.net/registry/media/1050099

Page from a repair manual detailing differential and axle assemb…

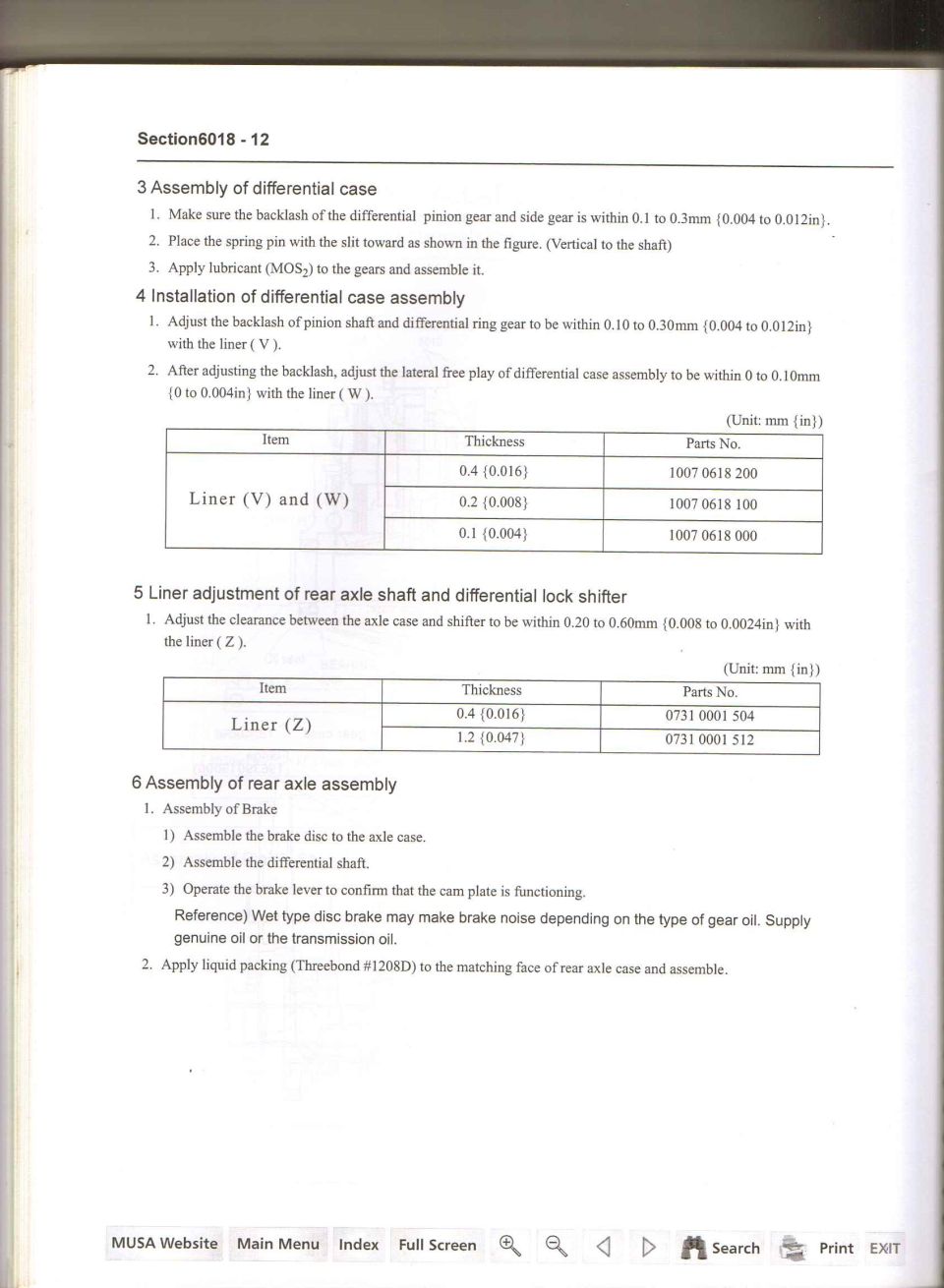

Page from a repair manual detailing differential and axle assembly with parts numbers and measurements

page 1

Owner caption · Photo 1 of 8

Is this accurate? Sign in to help verify it.

Comments

No comments yet.

More from this build

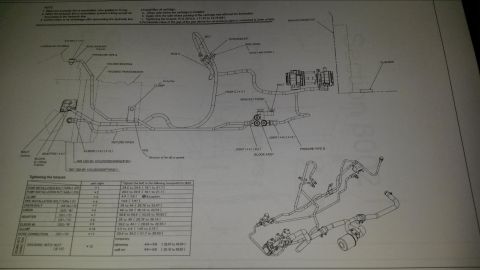

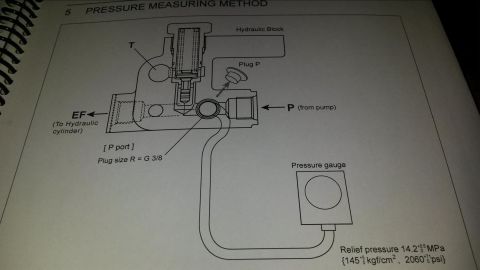

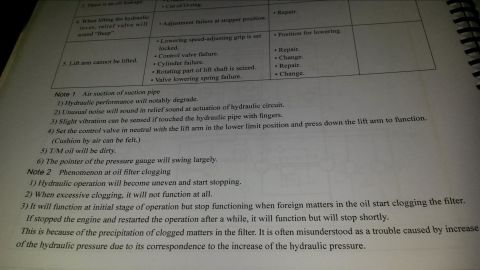

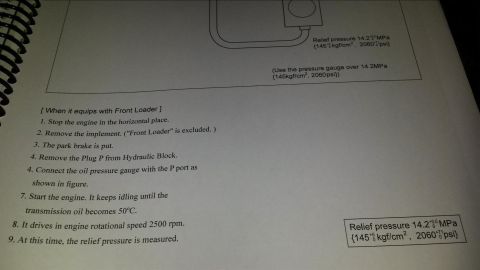

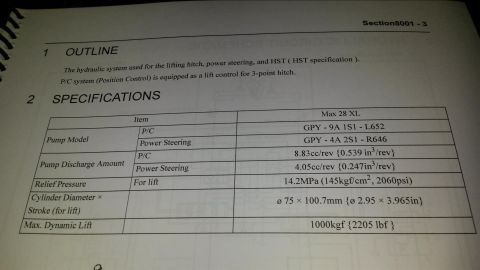

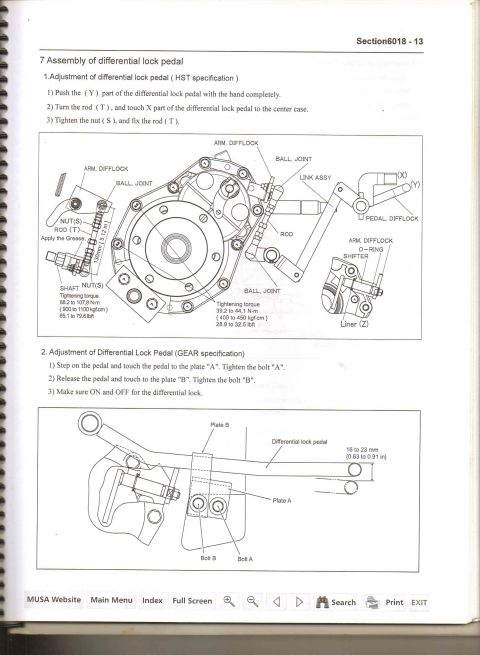

Page from a manual detailing hydraulic system specifications, including pump model, discharge amount, relief pressure, and cylinder dimensions Document page showing hydraulic system diagram and numbered instructions for testing relief pressure Manual page pressure measuring method schematic of a hydraulic block and gauge Document page with text and tables about hydraulic systems, with a watermark Manual page hydraulic line routing schematic with a torque tightening table Red Mahindra Max tractor with front loader, viewed from the front-right Diagram showing assembly and adjustment of a differential lock pedal, with labels for parts like ball joint, rod, and shifter
All 18 photos of this build

More Ford Broncos

1983 Ford Bronco “That dirty old truck”1983 Ford Bronco “That dirty old truck”6963 photos 1989 Ford Bronco “Street Truck”1989 Ford Bronco “Street Truck”8601 photos 1990 Ford Bronco “BlancoBronco”1990 Ford Bronco “BlancoBronco”12436 photos 1992 Ford Bronco “badassbronco”1992 Ford Bronco “badassbronco”3508 photos 1985 Ford Bronco “Erika”1985 Ford Bronco “Erika”1419 photos 1986 Ford Bronco “Eddie Bauer”1986 Ford Bronco “Eddie Bauer”1167 photos
The Ford Bronco registry
