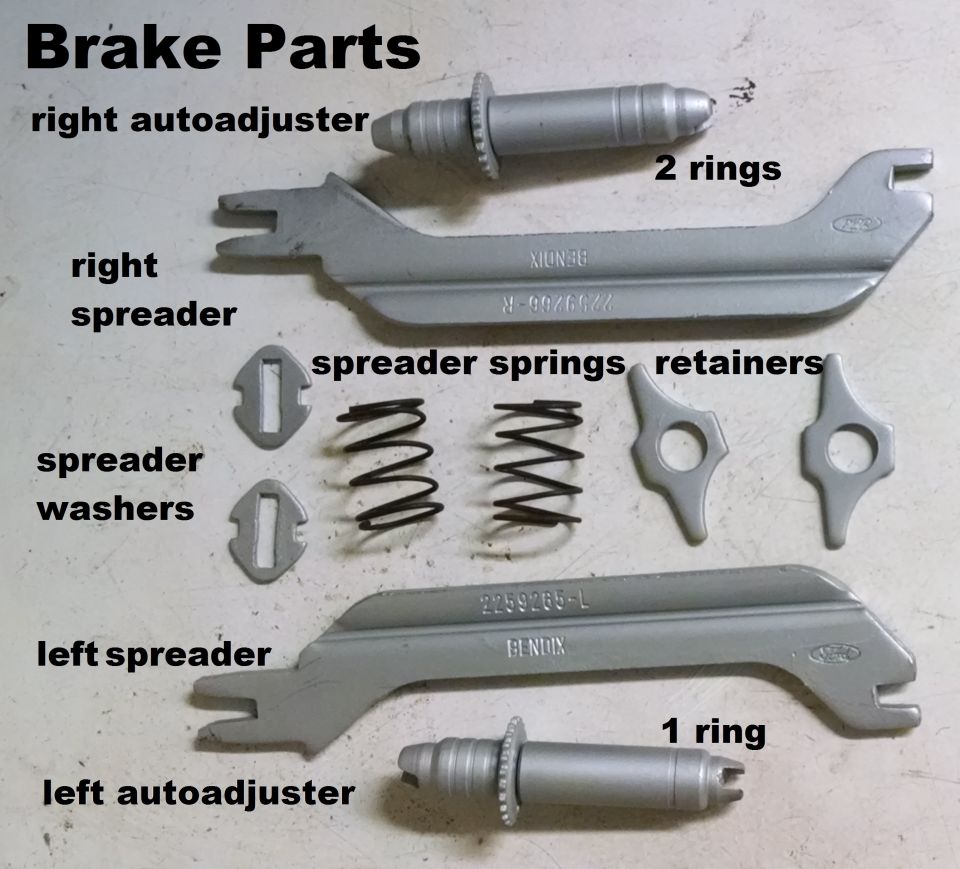

Labeled drum brake hardware: Bendix spreaders, autoadjusters, sp…

The autoadjusters are available new, but they're expensive. The left always has 1 ring cut near its closed end, but the right may have 2 or none. The screw has L or R embossed in its unthreaded tip. The unthreaded cap has 3 rings or none, and fits L & R. There is also a very small, thin washer between that end and the wheel.
Left Adjuster Kit MotorCraft BRAK2544A (plug, cable, guide, pawl, 4-pc autoadjuster)
Right Adjuster Kit MotorCraft BRAK2545A

The other parts shown (and the e-brake levers & piston pushrods) are NOT available new.

Now that these factory-original parts have been thoroughly cleaned & painted with high-temp paint, they're probably better than new. But I'm not applying brake grease until I'm ready to install them.

Owner caption June 2016 · Photo 424 of 434
