Technical drawing of a steel tube welded to a washer with part n…

Technical drawing of a steel tube welded to a washer with part numbers and dimensions.
Technical drawing of a steel tube welded to a washer with part numbers and dimensions.Original file
Technical drawing of a steel tube welded to a washer with part numbers and dimensions.

Body MountsView all 14

Heavily rusted metal frame with bolts and a dark hose. Rusted hole in the undercarriage of a vehicle. Dark blue metal part with holes on cardboard with grass and leaves Black jack stand adapter supporting a rusty vehicle underside. Black metal parts on a brown surface with grass in the background. Close-up of rusty vehicle undercarriage with brackets and wiring. Heavily rusted suspension parts and wiring harnesses on the underside of a vehicle. Cracked rubber body mount between a black textured vehicle frame and the underside of the vehicle body. Underside of a black painted vehicle frame with leaf spring and tire. Underside view of a vehicle body mount with bolt and bracket. Technical drawing of a metal tube with dimensions and material specifications. Technical drawing of a steel tube welded to a washer with part numbers and dimensions. Underside of a black painted vehicle frame with a tire in the foreground. Technical drawing of vehicle frame component with dimensions and labels. 14photos in this albumView all

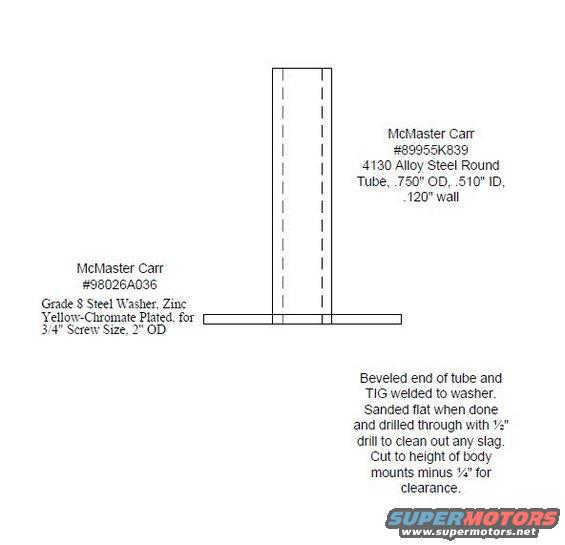

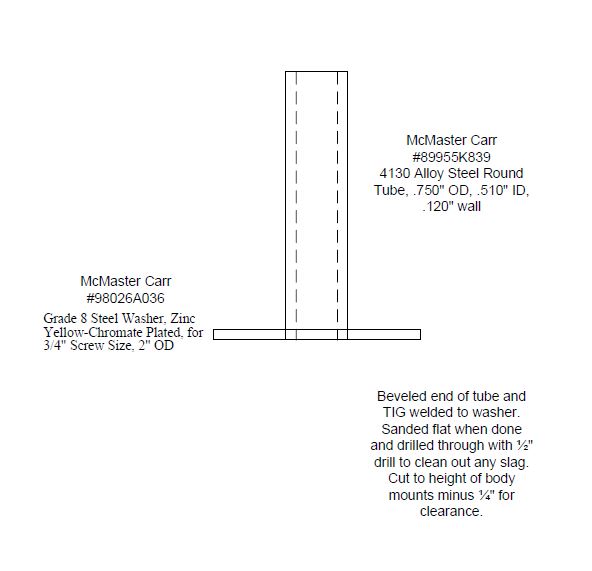

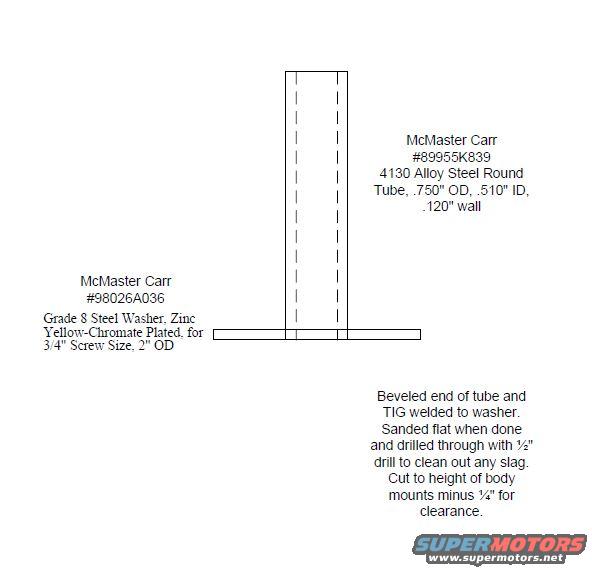

This is a technical drawing of a component, likely a part for a vehicle, with labels indicating materials and dimensions. It shows a steel tube welded to a washer.
