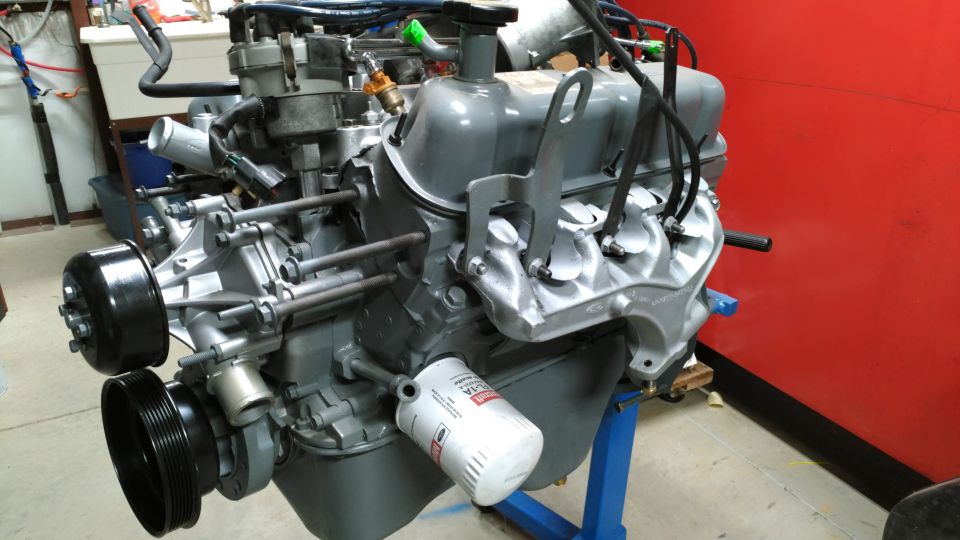

Gray engine assembly on a blue stand, with oil filter attached

‹ ›

The CarcassView all 83

Ford V8 engine intake manifold with fuel injectors and fuel rails. Part number 6K408AA visible

Ford V8 engine block with fuel injectors and fuel rails, part number sticker visible

Thermostat housing with a bolt stuck in it, being removed with pliers. Text overlay reads 'T-stat Bolt Extract

Ford exhaust manifold with part number RF-FOTE-9431-DB visible

Ford V8 engine block with oil filter and exhaust manifold, mounted on a blue engine stand

pile of truck body parts on a trailer, with a fender and bed section on the ground

83photos in this albumView all

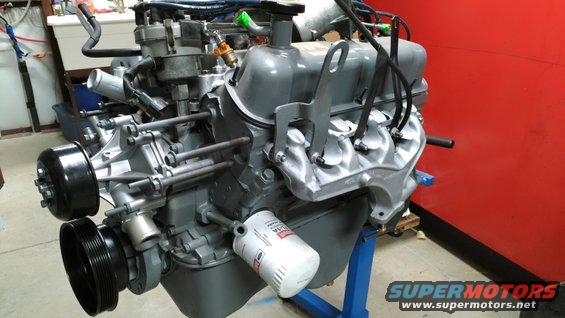

Eventually, I got all the exhaust manifold bolts in (with nickel anti-seize) & torqued. Then I added the heat shields & accessory nuts.

.

The oil pressure port is extended using common plumbing parts (I may swap to a factory extension or this stainless reproduction) in preparation for an older sender (Standard PS60) so the gauge will actually work.

The distributor body was sandblasted & clearcoated, but I need to clean the cap & probably replace the wires. The MAF body was also blasted & cleared (NOT the sensor).

The oil fill cap is a new MotorCraft EC-743 (F3AZ-6766-B).

The harmonic balancer was also sandblasted & painted. Then its sealing surface was wire-wheeled clean again, and lubed before installation. Its pulley is new, like the WP, TC, t'stat cover, & spark plugs. But the oil pan gasket & valve cover gaskets are the original (reusable) '96 parts.
