A-Pillar to Floor Roll Cage Tube Bend Diagram - 1992 Jeep Wrangler Sketch

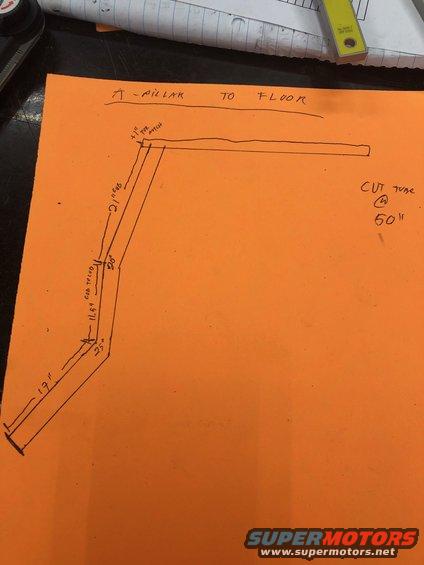

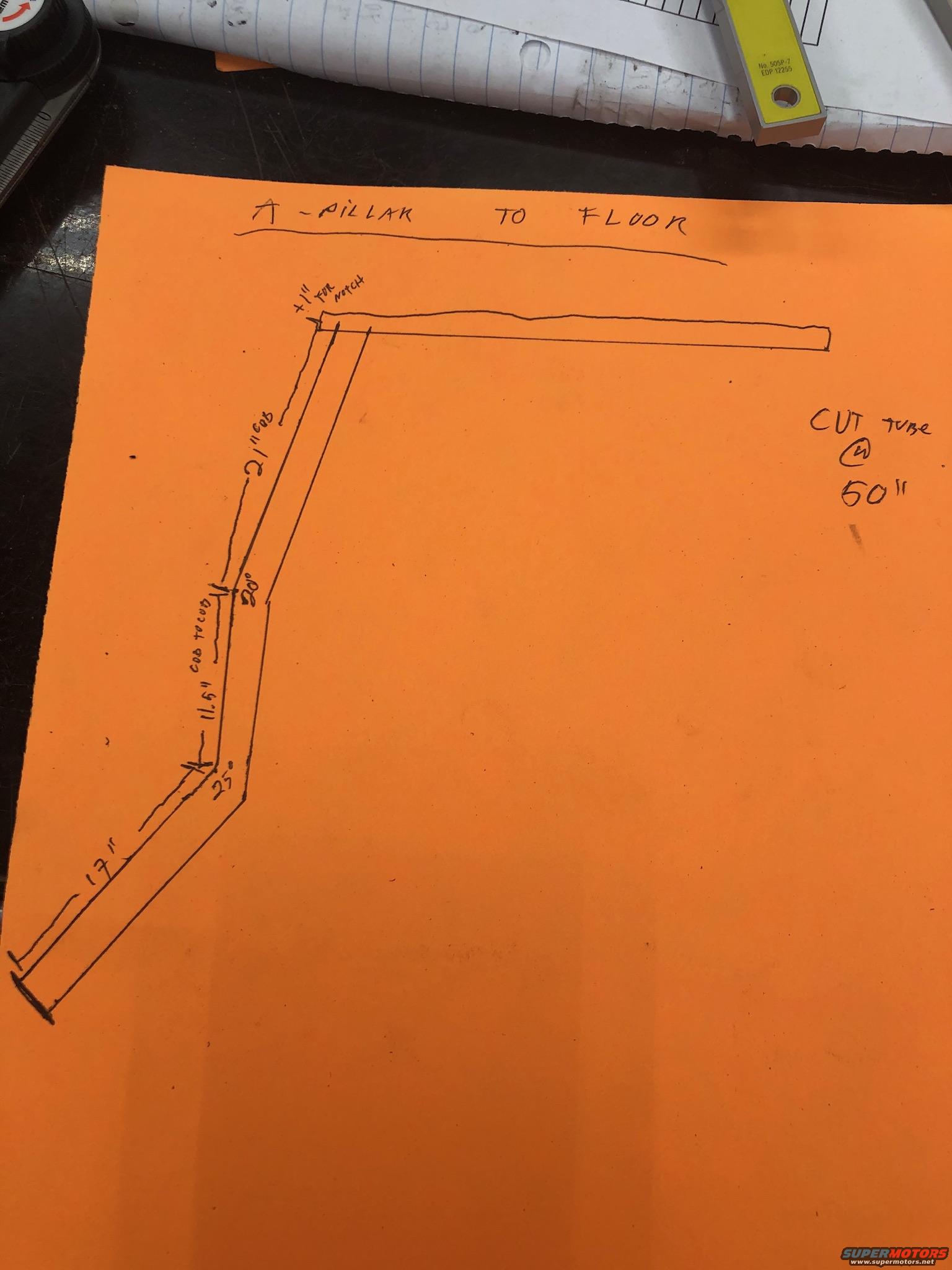

This is a hand-drawn sketch on orange paper, photographed on a workbench, showing a tube-bending plan labeled 'A-PILLAR TO FLOOR' — a roll cage / tube fabrication blueprint for the down-tube running from the A-pillar to the floor. The drawing depicts a single tube with two bends. Notations along the tube give the bend layout: an extra +1" allowance at the top end 'for notch', a 21" run to the first center of bend (COB), a 20° bend, an 11.5" section measured COB to COB, a 25° second bend, and a final 17" leg to the floor. A separate note instructs 'CUT TUBE @ 50"', giving the total stock length to cut before bending. The sketch also shows the tube meeting a long horizontal member at the top (presumably the roof/windshield header line). No part numbers, vehicle year, make, or model are stated on the document itself; it was uploaded to a 1992 Jeep Wrangler gallery. A reader can learn the exact cut length, bend angles, and center-of-bend measurements needed to reproduce this A-pillar-to-floor cage tube.
