Where is the bill of material number located on the axle?

It is stamped on the long axle tube, next to the date stamp; the diagram shows an example number 610320-1.

Where is the axle manufacturing date found?

The date is stamped on the long tube ahead of the bill of material number, in the format X XX XXX (callout 1).

Where is the axle model number shown?

The model number is cast into the differential housing; the diagram shows "30" (callout 3).

Where are the ratio tag and limited lubrication tag attached?

Both tags are attached at the differential cover: the ratio tag (callout 4) and the limited lubrication tag (callout 5).

Where is the axle identification tag located?

Per callout 2A, the axle identification tag is on the differential cover, shown in the end view of the housing.

Home/ Registry/ Jeep/ Wrangler/ 1987-1995/ 1992 Jeep Wrangler/ Photo supermotors.net/registry/media/843069

Jeep Dana 30 Axle Identification Diagram - Tags, Date & Bill of Material Location

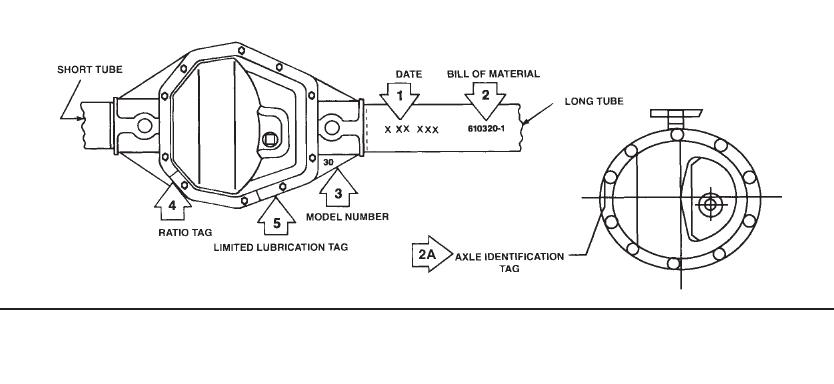

Diagram showing axle housing identification tag locations including date, BOM, ratio and model number

‹ ›
