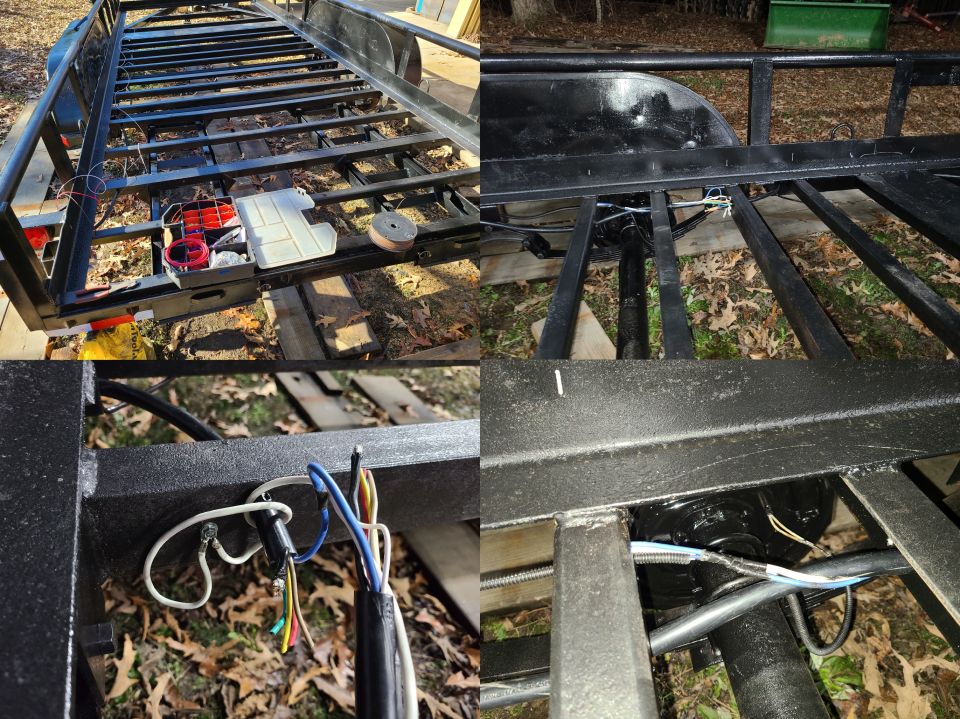

After painting & bolting in the axles, the wiring was laid in. T…

After painting & bolting in the axles, the wiring was laid in. The 2 sections will meet just forward of the front axle. The rear section was slit to extract the heavy brake & ground wires so they can be used to cross the frame, where they're soldered to the (uncut) wires for each brake. The left brakes' wires are pierced & soldered to the crossover wires, and the smaller taillight ground wire is soldered into the crossover White. The heavy Blue (brake) wire is soldered to the front section's Blue; the Whites are screwed together at the frame. The Black is so heavy that it's difficult to solder it together, or even tin it; but it's just the battery charge wire, so it's not really necessary. IF THE IMAGE IS TOO SMALL, click it.
After painting & bolting in the axles, the wiring was laid in. The 2 sections will meet just forward of the front axle. The rear section was slit to extract the heavy brake & ground wires so they can be used to cross the frame, where they're soldered to the (uncut) wires for each brake. The left brakes' wires are pierced & soldered to the crossover wires, and the smaller taillight ground wire is soldered into the crossover White. The heavy Blue (brake) wire is soldered to the front section's Blue; the Whites are screwed together at the frame. The Black is so heavy that it's difficult to solder it together, or even tin it; but it's just the battery charge wire, so it's not really necessary. IF THE IMAGE IS TOO SMALL, click it.Original file
After painting & bolting in the axles, the wiring was laid in. The 2 sections will meet just forward of the front axle. The rear section was slit to extract the heavy brake & ground wires so they can be used to cross the frame, where they're soldered to the (uncut) wires for each brake. The left brakes' wires are pierced & soldered to the crossover wires, and the smaller taillight ground wire is soldered into the crossover White. The heavy Blue (brake) wire is soldered to the front section's Blue; the Whites are screwed together at the frame. The Black is so heavy that it's difficult to solder it together, or even tin it; but it's just the battery charge wire, so it's not really necessary. IF THE IMAGE IS TOO SMALL, click it.

Deere Trailer 18View all 12

2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 2004 Land Rover Land Rover photo 12photos in this albumView all

After painting & bolting in the axles, the wiring was laid in. The 2 sections will meet just forward of the front axle. The rear section was slit to extract the heavy brake & ground wires so they can be used to cross the frame, where they're soldered to the (uncut) wires for each brake. The left brakes' wires are pierced & soldered to the crossover wires, and the smaller taillight ground wire is soldered into the crossover White. The heavy Blue (brake) wire is soldered to the front section's Blue; the Whites are screwed together at the frame. The Black is so heavy that it's difficult to solder it together, or even tin it; but it's just the battery charge wire, so it's not really necessary.
IF THE IMAGE IS TOO SMALL, click it.

Owner caption · Photo 2219 of 2257
