What is the wheelbase of the 2005 Ford Crown Victoria shown in this frame diagram?

The diagram specifies a 2913 mm (114 11/16 inch) wheelbase, and applies to all models except the extended-wheelbase version.

How are the frame dimensions measured in this diagram?

Dimensions from the centerline are combined when equal and must be divided by 2 for individual dimensions from centerline. All bolts and holes are measured to center unless otherwise described in the Measuring Points legend.

What do the letters A through V refer to on the diagram?

They are measuring points defined in the legend, e.g., A = tip of lower bolt at the bumper mount, H and I = heads of subframe mount bolts, P = center of a 58 mm (2 5/16 in) hole, V = head of a body mount bolt. Datum-line heights are also listed for each letter, such as A = 398 mm (15 11/16 in).

What symbols are used on the frame blueprint?

Hexagons indicate bolts, filled circles rivets, open circles holes, a filled triangle the datum line zero point, a filled star the loaded lower ball joint, an open star the unloaded lower ball joint, and a circled star a width dimension on the engine compartment view (see back of page).

Does this diagram cover the extended-wheelbase Crown Victoria?

No. The title states it is complete underbody frame dimension information 'Except Extended.'

Home/ Registry/ Ford/ F-150/ 2015-2020/ 2015 Ford F-150/ Photo supermotors.net/registry/media/1170333

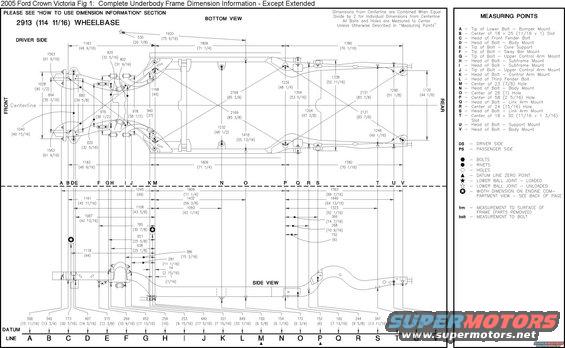

2005 Ford Crown Victoria Frame Dimensions Diagram - Underbody Blueprint

2005 Ford Crown Victoria underbody frame dimension drawing with bottom and side views and measuring points

‹ ›

Dimensioned underbody frame drawing for the 2005 Ford Crown Victoria with bottom/side views and labeled measuring points.

AI caption August 2022 · Photo 5 of 5

This document is a factory-style underbody frame dimension blueprint for the 2005 Ford Crown Victoria (excluding the extended-wheelbase model). It shows the complete frame in both bottom view and side view for a 2913 mm (114 11/16 in) wheelbase chassis. All key structural reference points are dimensioned in millimeters with inch equivalents in parentheses, measured from the vehicle centerline and datum line. A lettered legend (A through V) defines each measuring point, such as tip of lower bolt at the bumper mount, subframe mount bolt heads, control arm mount bolts, body mounts, and specific hole and slot sizes (e.g., 23 mm/7/8 in hole, 18 x 30 mm slot). A datum-line table lists vertical heights at each reference station from A (398 mm / 15 11/16 in) to V (388 mm / 15 1/4 in). Symbol keys distinguish bolts, rivets, holes, the datum line zero point, and loaded/unloaded lower ball joint positions. Notes explain that dimensions from centerline are combined when equal and should be divided by two for individual measurements. This reference is useful for collision repair, frame straightening, and verifying chassis alignment on a 2005 Crown Victoria.

This document covers 2005, which may differ from this 2015 Ford F-150.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the wheelbase of the 2005 Ford Crown Victoria shown in this frame diagram?: The diagram specifies a 2913 mm (114 11/16 inch) wheelbase, and applies to all models except the extended-wheelbase version.
How are the frame dimensions measured in this diagram?: Dimensions from the centerline are combined when equal and must be divided by 2 for individual dimensions from centerline. All bolts and holes are measured to center unless otherwise described in the Measuring Points legend.
What do the letters A through V refer to on the diagram?: They are measuring points defined in the legend, e.g., A = tip of lower bolt at the bumper mount, H and I = heads of subframe mount bolts, P = center of a 58 mm (2 5/16 in) hole, V = head of a body mount bolt. Datum-line heights are also listed for each letter, such as A = 398 mm (15 11/16 in).
What symbols are used on the frame blueprint?: Hexagons indicate bolts, filled circles rivets, open circles holes, a filled triangle the datum line zero point, a filled star the loaded lower ball joint, an open star the unloaded lower ball joint, and a circled star a width dimension on the engine compartment view (see back of page).
Does this diagram cover the extended-wheelbase Crown Victoria?: No. The title states it is complete underbody frame dimension information 'Except Extended.'
