Wiring diagrams for incandescent and LED light bulbs, showing pa…

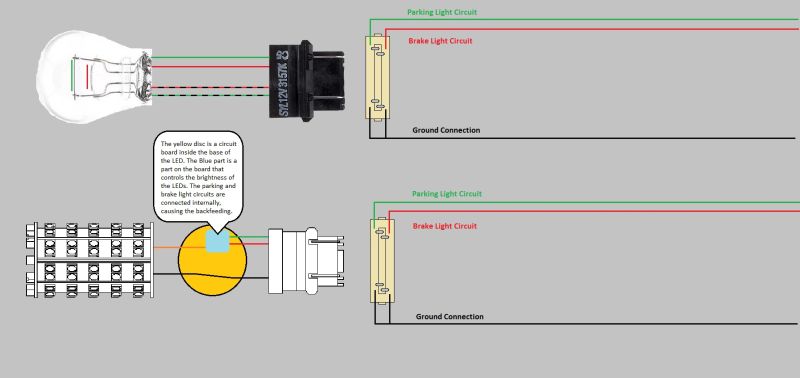

Wiring diagrams for incandescent and LED light bulbs, showing parking and brake light circuits.

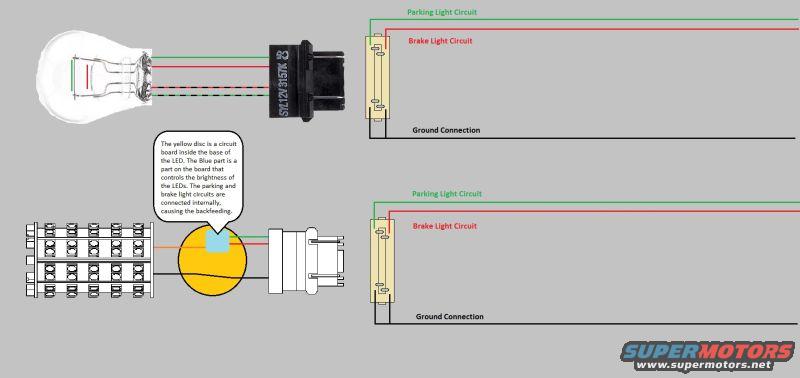

Diagrams show two different types of light bulb assemblies and their wiring for parking and brake light circuits. The top diagram shows a traditional incandescent bulb, while the bottom shows an LED assembly with a circuit board.
