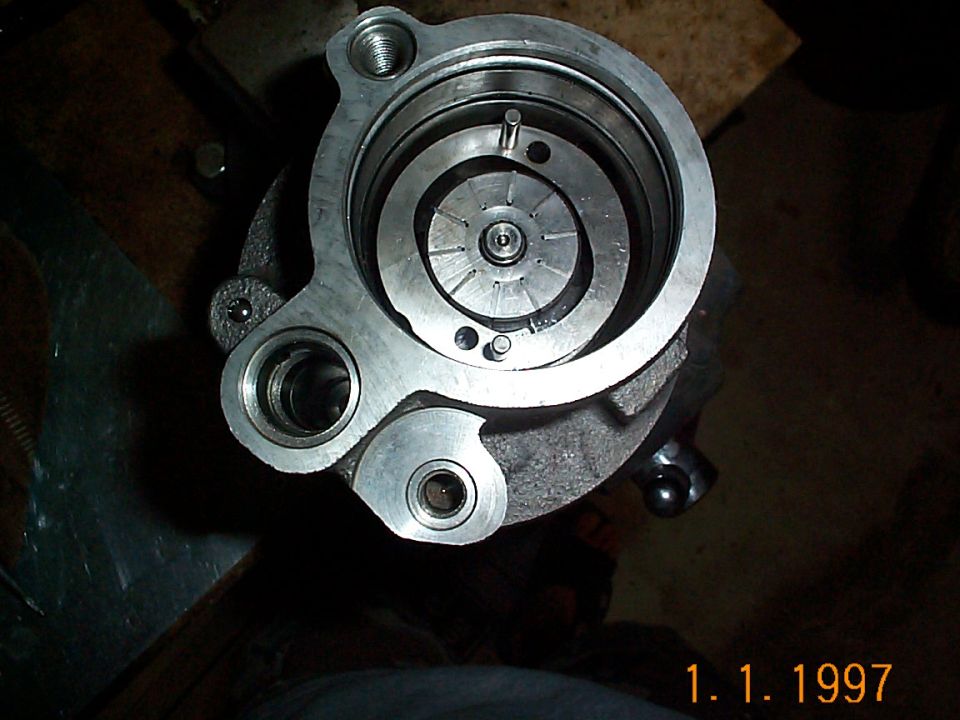

dcp01261.jpg Put all of the vanes back in their respective slots and put the inner part of the pump back over it. There were two metal rods that came out upon disassembly that will be resinstalled here. It looks like they can fit in two different places, but only one set of the holes will work. They will press firmly into place.
dcp01261.jpg | Hits: 848 | Posted on: 5/27/04 | View original size (241.14 KB)

Put all of the vanes back in their respective slots and put the inner part of the pump back over it. There were two metal rods that came out upon disassembly that will be resinstalled here. It looks like they can fit in two different places, but only one set of the holes will work. They will press firmly into place.
