Open distributor with ignitor module and wiring callouts in an e…

Open distributor with ignitor module and wiring callouts in an engine bay
Open distributor with ignitor module and wiring callouts in an engine bayOriginal file
Open distributor with ignitor module and wiring callouts in an engine bay

technical stuffView all 28

Distributor internals with callout to remove metal strap between igniter and coil terminal Opened distributor interior with labeled note about strap removed from ignitor module Open distributor with ignitor module and wiring callouts in an engine bay Engine bay wiring splices with text labels for HEI module conversion Dark steel L-shaped bracket with drilled holes on printed paper Annotated photo of an HEI ignition module with callouts for pins W, C, G and B wiring Distributor wiring with blue plug wires, connectors, and annotation about HEI wiring Grimy engine bay component with stamped numbers and yellow cable overhead Engine bay of blue Ford Focus with hood open at an outdoor car show Ford Duratec 3.0L V6 24-valve DOHC engine with SVT badge in light blue car's engine bay Blue car with hood open showing engine, side vents on front fender, alloy wheel 1996 Mazda MX-6 brochure cover with dark green coupe and illustrated storefront Mazda MX-6 vs MX-6 LS specifications table: 2.0L 4-cyl and 2.5L V6 data Mazda MX-6 sales brochure page with cutaway suspension art and a safety features list Removed cylinder head showing valves, ports and casting number Close-up of aluminum cylinder head intake ports with carbon staining and studs 28photos in this albumView all

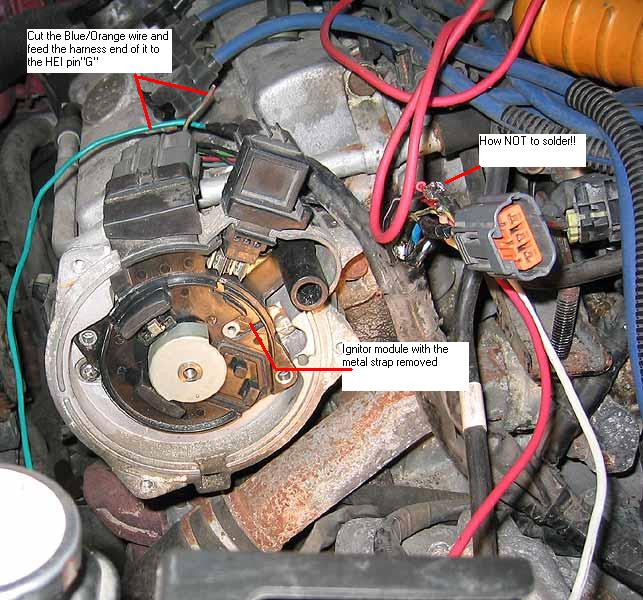

Close-up of an opened distributor with the cap removed, showing the ignitor module with its metal strap removed and internal components. Callouts instruct cutting the Blue/Orange wire to feed to HEI pin 'G', point out the ignitor module, and flag a poorly soldered connection ('How NOT to solder!') among the surrounding red, green, and blue wiring.
