What is the torque spec for the powertrain mount bracket on a 1998 Contour/Mystique?

The illustration shows a torque value of 83 Nm for the powertrain mount bracket fasteners.

What are the steps for connecting the power steering lines to the pump?

Step 10 lists: 1) Connect the power steering high-pressure tube, 2) Connect the power steering hose, 3) Attach the tube retaining bracket.

What is done after installing the powertrain mount bracket?

Step 8 says to remove the powertrain support, then step 9 says to install the powertrain cover.

Which vehicles does this procedure apply to?

The window title identifies it as the 1998 Contour/Mystique Workshop Manual.

Home/ Registry/ Ford/ Contour/ “Nic_ContourSE99”/ Photo supermotors.net/registry/media/175183

1998 Ford Contour/Mystique Power Steering Pump Install - Workshop Manual Page 7

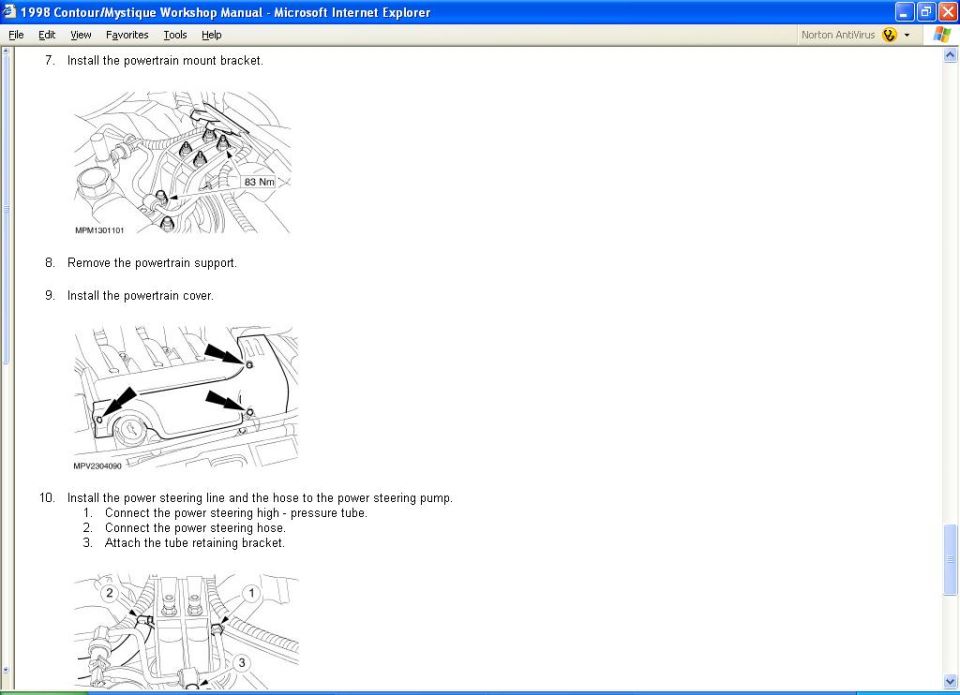

Workshop manual page with numbered steps to install powertrain mount and power steering lines

‹ ›

Workshop manual service procedure showing numbered steps to install the powertrain mount bracket, cover, and power steering lines.

AI caption February 2005 · Photo 54 of 56

This document is a screenshot of a page from the 1998 Ford Contour/Mercury Mystique Workshop Manual, viewed in Microsoft Internet Explorer. It shows steps 7 through 10 of a service procedure (part of a power steering pump installation/reassembly sequence, based on the album filenames ps2–ps7). Step 7 instructs installing the powertrain mount bracket, accompanied by an engine-bay illustration (MPM1301101) with a torque specification of 83 Nm for the bracket fasteners. Step 8 says to remove the powertrain support, and step 9 to install the powertrain cover, shown in illustration MPV2304090 with arrows marking three fastener locations. Step 10 covers installing the power steering line and hose to the power steering pump, broken into three sub-steps: connect the power steering high-pressure tube (callout 1), connect the power steering hose (callout 2), and attach the tube retaining bracket (callout 3), with a partially visible illustration of the pump area. A reader learns the reassembly order, the 83 Nm torque value for the powertrain mount bracket, and the connection points for power steering lines on a 1998 Contour/Mystique.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the powertrain mount bracket on a 1998 Contour/Mystique?: The illustration shows a torque value of 83 Nm for the powertrain mount bracket fasteners.
What are the steps for connecting the power steering lines to the pump?: Step 10 lists: 1) Connect the power steering high-pressure tube, 2) Connect the power steering hose, 3) Attach the tube retaining bracket.
What is done after installing the powertrain mount bracket?: Step 8 says to remove the powertrain support, then step 9 says to install the powertrain cover.
Which vehicles does this procedure apply to?: The window title identifies it as the 1998 Contour/Mystique Workshop Manual.
