Which fuse powers the parking/tail lamp circuit from the battery junction box?

Fuse F10, rated 20A, in the P93 Battery Junction Box (BJB), through connector C334.

What fuses in the Central Junction Box protect the park/tail lamps?

Fuses F35, F33, and F31 in the P91 Central Junction Box (CJB), each rated 7.5A.

What are the wire colors between the light switch and the Central Junction Box?

30S-DD37 is 1.5 RD/YE (red/yellow), 30S-DD38 is 1.5 RD/BU (red/blue), and 30S-DD40 is 1.5 RD/GN (red/green).

What connectors serve the rear lamp assemblies?

The left rear lamp (E9) uses C446, with C1946 'as of 03/98'; the right rear lamp (E10) uses C447, with C1947 'as of 03/98'. Both rear lamps ground at G16.

What functions do the rear lamp assemblies include per the legend?

E9 (left rear) and E10 (right rear) each include [1] Turn signal lamp, [2] Stoplamp, and [4] Tail lamp. Front units E164/E166 include [1] Turn signal lamp and [2] Parking lamp.

Home/ Registry/ Ford/ Contour/ “Nic_ContourSE99”/ Photo supermotors.net/registry/media/176215

1999 Ford Contour Tail Light & Parking Lamp Wiring Diagram - Fuses, Wire Colors

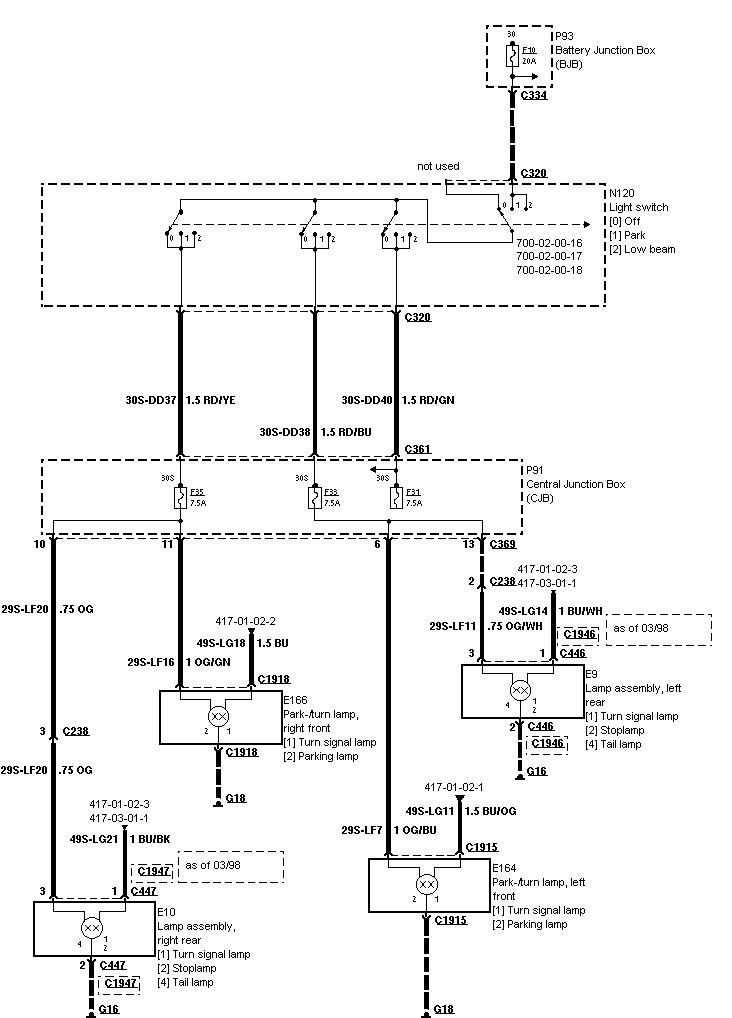

Wiring diagram of park, turn-signal, stop and tail lamp circuits with color codes and connectors

‹ ›

Wiring diagram showing park, turn-signal, stoplamp and tail lamp circuits with color-coded wires, connectors, and fuse references.

AI caption February 2005 · Photo 56 of 56

This is a factory-style wiring diagram page covering the parking/tail lamp (exterior lighting) circuit, uploaded as 'taillight1.JPG' for a 1999 Ford Contour. Power originates at fuse F10 (20A) in the P93 Battery Junction Box (BJB), passes through connector C334/C320 to the N120 light switch (positions: [0] Off, [1] Park, [2] Low beam; references 700-02-00-16/-17/-18). Three feed wires leave the switch: 30S-DD37 (1.5 RD/YE), 30S-DD38 (1.5 RD/BU), and 30S-DD40 (1.5 RD/GN), entering the P91 Central Junction Box (CJB) through C361, where they feed fuses F35, F33, and F31, each rated 7.5A. Outputs on CJB pins 10, 11, 6, and 13 feed the four lamp assemblies: E166 park-/turn lamp right front (via 29S-LF16 1 OG/GN and 49S-LG18 1.5 BU, connector C1918, ground G18), E164 park-/turn lamp left front (29S-LF7 1 OG/BU, 49S-LG11 1.5 BU/OG, C1915, G18), E9 left rear lamp assembly (29S-LF11 .75 OG/WH, 49S-LG14 1 BU/WH, C446/C1946, G16), and E10 right rear lamp assembly (29S-LF20 .75 OG, 49S-LG21 1 BU/BK, C447/C1947, G16). Rear connectors C1946/C1947 are noted 'as of 03/98'. Section references 417-01-02-1/-2/-3 and 417-03-01-1 are shown.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Which fuse powers the parking/tail lamp circuit from the battery junction box?: Fuse F10, rated 20A, in the P93 Battery Junction Box (BJB), through connector C334.
What fuses in the Central Junction Box protect the park/tail lamps?: Fuses F35, F33, and F31 in the P91 Central Junction Box (CJB), each rated 7.5A.
What are the wire colors between the light switch and the Central Junction Box?: 30S-DD37 is 1.5 RD/YE (red/yellow), 30S-DD38 is 1.5 RD/BU (red/blue), and 30S-DD40 is 1.5 RD/GN (red/green).
What connectors serve the rear lamp assemblies?: The left rear lamp (E9) uses C446, with C1946 'as of 03/98'; the right rear lamp (E10) uses C447, with C1947 'as of 03/98'. Both rear lamps ground at G16.
What functions do the rear lamp assemblies include per the legend?: E9 (left rear) and E10 (right rear) each include [1] Turn signal lamp, [2] Stoplamp, and [4] Tail lamp. Front units E164/E166 include [1] Turn signal lamp and [2] Parking lamp.
