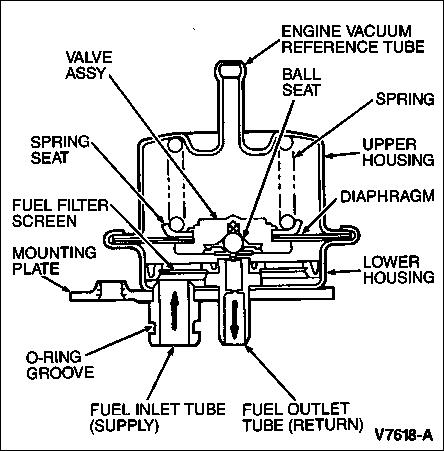

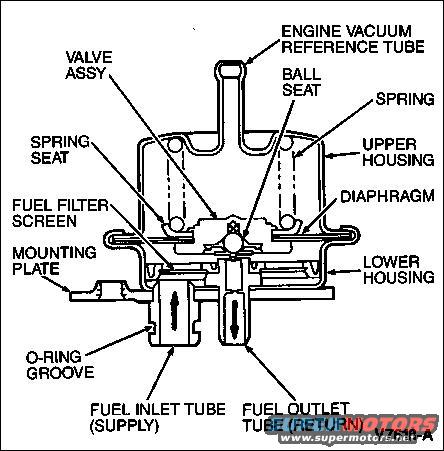

The fuel pressure regulator is attached to the fuel supply manifold assembly downstream of the fuel injectors. It regulates the fuel pressure supplied to the injectors. The regulator is a diaphragm-operated relief valve in which one side of the diaphragm senses fuel pressure and the other side is subjected to intake manifold vacuum. The nominal fuel pressure is established by a spring preload applied to the diaphragm. Balancing one side of the diaphragm with manifold pressure maintains a constant fuel pressure drop across the injectors.
Excess fuel is bypassed through the regulator and returns to the fuel tank.
|
