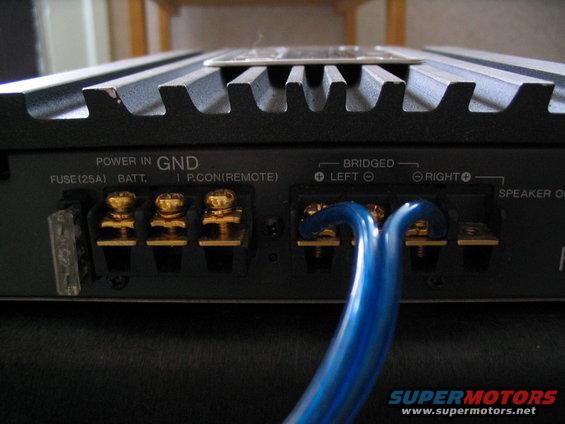

Car amplifier terminal block with gold power screws and blue wir…
03/20/05 - Kenwood Subwoofer InstallView all 9

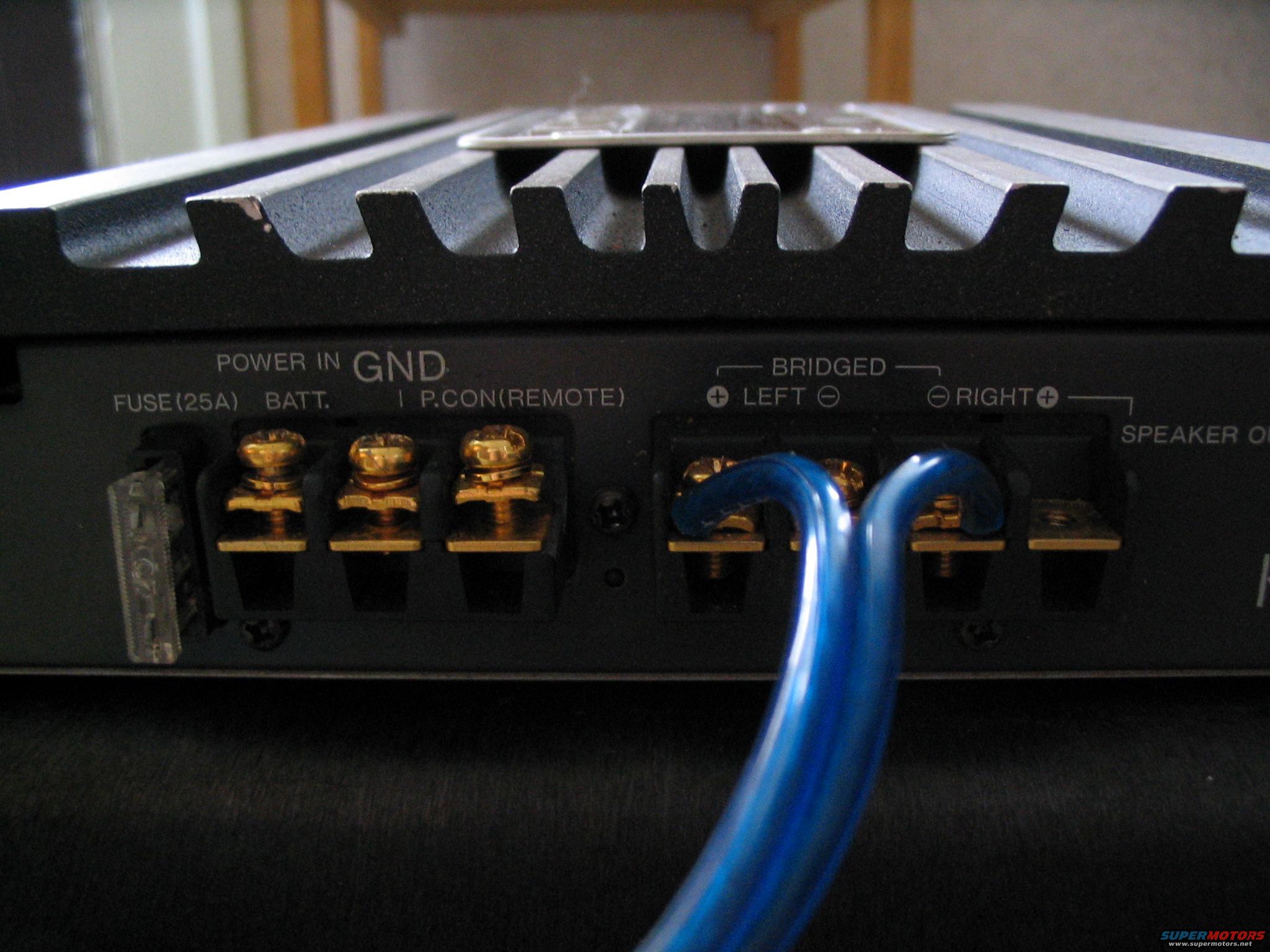

Detail of a car amplifier's terminal end, showing the 25A fuse holder, gold-plated BATT/GND/P.CON power-in set screws, and bridged left/right speaker outputs labeled in white text. Blue speaker wire is landed on the bridged terminals beneath the finned aluminum heatsink.
a POWER N GND 1 ~ Emmam ------ ] FUSU'PSA) RM r. RCONmEMOTB 4: mm amemo - a? g ELM 4 9 g .. mg 3
