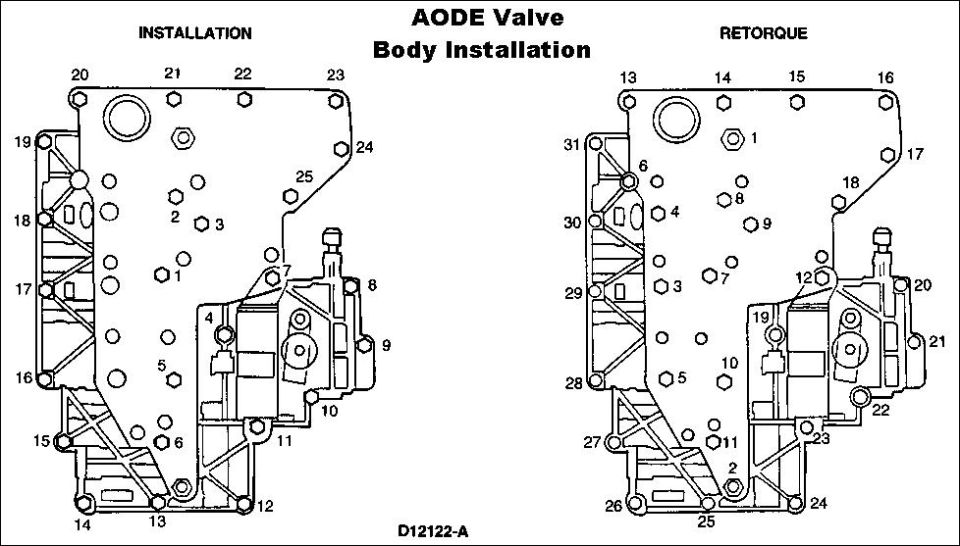

AODE valve body installation diagram with bolt torque sequence n…

Valve Body Torque Sequence
1. Tighten the 25 retaining bolts to case to 9-11 N-m (80-100 lb-in).

2. Retighten the following bolts to the specification indicated and in sequence as indicated by the illustration:
> 2 M8X1.25X46mm guide pin bolts to 22-26 N-m (190-230 lb-in).
> 4 M6X1.0X18mm cover plate bolts to 9-11 N-m (80-100 lb-in).
> 12 M6X1.0X52mm cover plate bolts to 11-15 N-m (100-130 lb-in)
