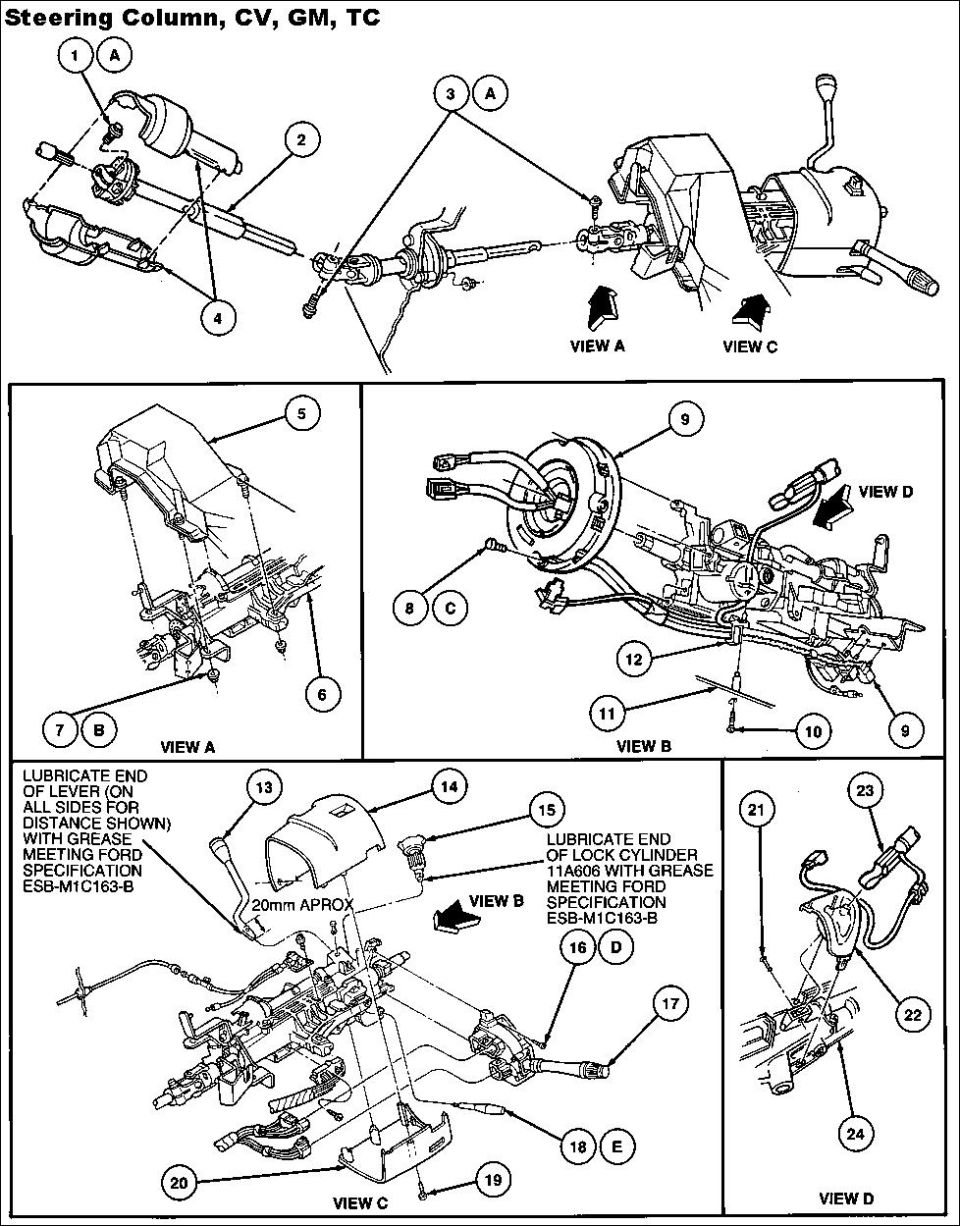

Steering Column Assembly
1A Screw N803942-S100
2 Steering Column Gear Input Shaft Coupling 3A525
3A Screw N803942-S100
4 Steering Shaft U-Joint Shield 3F540
5 Body
6 Steering Column Tube 3514
7B Nut (4 Req'd) N806423-S56
8C Screw (3 Req'd) N610089-S36
9 Air Bag Sliding Contact 14A664
10 Screw 55929-S2
11 Body 3553
12 Wiring Harness Retainer 14A163
13 Shift Control Selector Lever and Housing 7210
14 Steering Column Shroud, Upper 3530
15 Ignition Switch 11572
16D Screw 390345-S36
17 Turn Signal and Windshield Wiper Switch 13K359
18 Tilt Wheel Handle and Shank 3F609
19 Screw (4 Req'd) 55929-S2
20 Steering Column Shroud, Lower 3530
21 Gear Shift Lever Pin 7G357
22 Steering Column Opening Weather Seal 3513
23 Shift Lever 7202
24 Steering Column Tube 3514
A Tighten to 41-56 N-m (31-41 Lb-Ft)
B Tighten to 13-19 N-m (9-14 Lb-Ft)
C Tighten to 4-5.4 N-m (36-47 Lb-In)
D Tighten to 2-3 N-m (18-26 Lb-In)
E Tighten to 3.5-5 N-m (28-44 Lb-In)
