SPI CU1193 Jeep Radiator Specs - Copper Core 2 Row Crossflow Dimensions

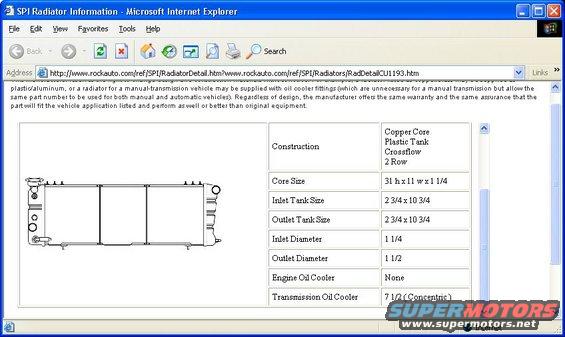

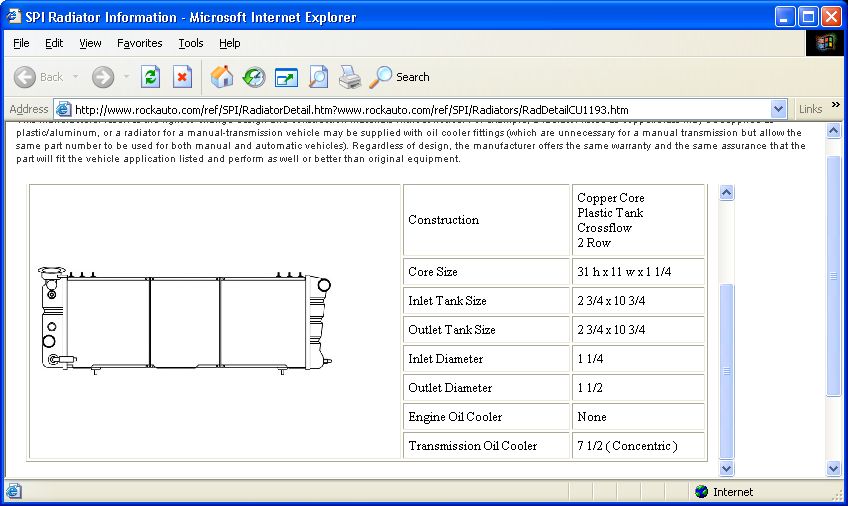

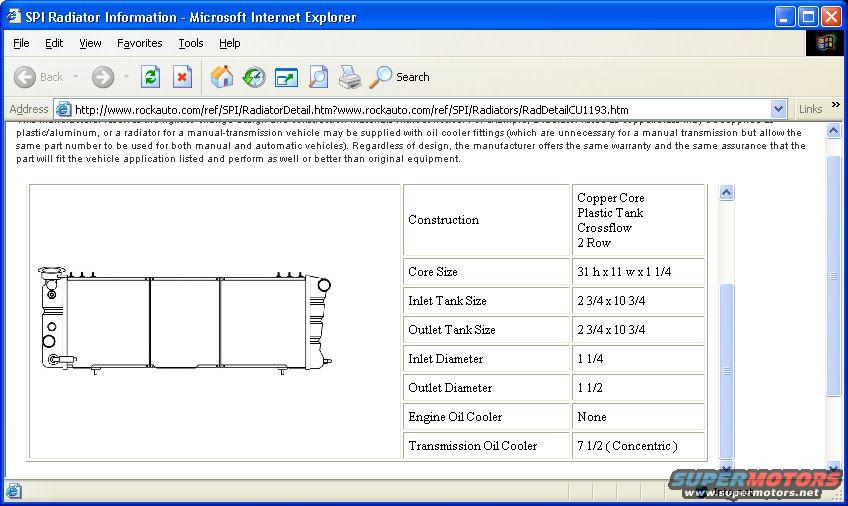

This document is a screenshot of an SPI (Spectra Premium Industries) radiator specification page viewed on RockAuto.com in Microsoft Internet Explorer. The page URL identifies the radiator as part CU1193 (RadDetailCU1193.htm). It shows a line drawing of a crossflow radiator alongside a specification table. The radiator is constructed with a copper core and plastic tanks in a crossflow, 2-row design. Core size is 31 h x 11 w x 1 1/4; both inlet and outlet tank sizes are 2 3/4 x 10 3/4. The inlet diameter is 1 1/4 and the outlet diameter is 1 1/2. There is no engine oil cooler, but it includes a 7 1/2 inch concentric transmission oil cooler, indicating suitability for automatic-transmission applications. A partially visible introductory paragraph explains the manufacturer's practice of supplying radiators with oil cooler fittings even for manual-transmission vehicles so one part number covers both, and states the part carries the same warranty and fitment/performance assurance as original equipment. The page gives no explicit year, make, or model applicability text, though the uploader filed it under a 1995 Jeep Wrangler. Readers can learn the physical dimensions, construction type, and cooler configuration of the CU1193 radiator.
