What is the core size of the Jeep 43 2335 radiator?

The core size is 31 x 11⅛ x 1½ inches with a 2-row core.

Where are the hose fittings located on radiator 43 2335?

The inlet is 1¼ inch diameter at the top right, and the outlet is 1½ inch diameter at the bottom left.

Does the 43 2335 Jeep radiator have an oil cooler?

Yes, it includes a 7½-inch oil cooler, and the comments note TOC (transmission oil cooler) adapters.

Home/ Registry/ Jeep/ Wrangler/ 1987-1995/ “Jeep Parts”/ Photo supermotors.net/registry/media/293921

Jeep Radiator 43 2335 Specs - Core Size, Hose Fittings & Oil Cooler

Radiator spec sheet for part 43 2335 Jeep with dimensions and fittings

‹ ›

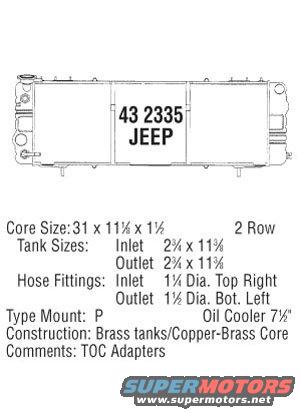

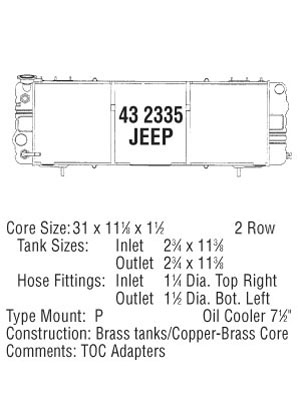

Radiator specification sheet with line drawing showing core size, tank sizes, hose fittings and construction for Jeep part 43 2335.

AI caption February 2006 · Photo 4 of 32

This document is a radiator specification catalog entry for Jeep radiator part number 43 2335. It includes a line drawing of the radiator with the part number and "JEEP" printed across the core area. The specifications list a core size of 31 x 11⅛ x 1½ inches with a 2-row core design. Both the inlet and outlet tanks measure 2¾ x 11⅜ inches. Hose fittings are specified as a 1¼-inch diameter inlet located at the top right and a 1½-inch diameter outlet located at the bottom left. The mount type is listed as "P," and the unit includes a 7½-inch oil cooler (transmission oil cooler, per the TOC Adapters comment). Construction is brass tanks with a copper-brass core. Readers can use this page to verify radiator dimensions, hose fitting sizes and locations, oil cooler presence, and construction materials before purchasing or installing this replacement radiator on a compatible Jeep vehicle. The document itself does not state which Jeep model years the part fits.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the core size of the Jeep 43 2335 radiator?: The core size is 31 x 11⅛ x 1½ inches with a 2-row core.
Where are the hose fittings located on radiator 43 2335?: The inlet is 1¼ inch diameter at the top right, and the outlet is 1½ inch diameter at the bottom left.
Does the 43 2335 Jeep radiator have an oil cooler?: Yes, it includes a 7½-inch oil cooler, and the comments note TOC (transmission oil cooler) adapters.
What is the construction of this radiator?: Brass tanks with a copper-brass core.
What are the tank sizes for this radiator?: Both the inlet and outlet tanks measure 2¾ x 11⅜ inches.
