Diagnostic scan tool screenshot with TPS, MAF, RPM, IAC and thro…

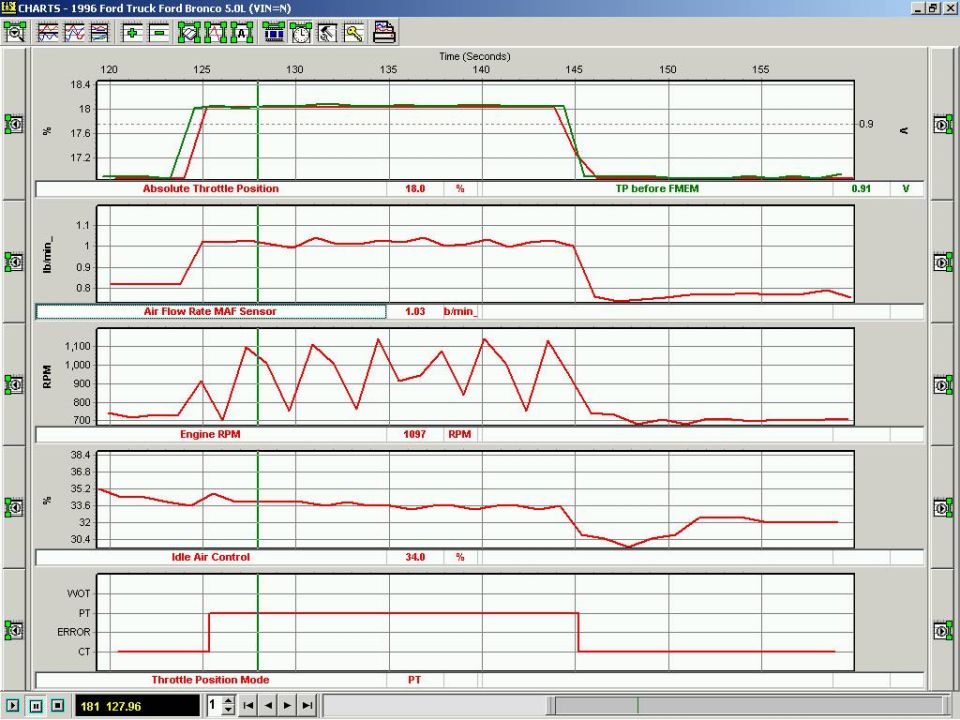

Screenshot of a CHARTS diagnostic scan tool session for a 1996 Ford Truck Ford Bronco 5.0L, showing five stacked data graphs over a time axis: Absolute Throttle Position (18.0%) with TP before FMEM (0.91V), Air Flow Rate MAF Sensor (1.03 lb/min), Engine RPM (1097), Idle Air Control (34.0%), and Throttle Position Mode (PT). The traces are plotted in red and green against a white background with a Windows-style interface.
