Newly installed aluminum throttle body and linkage on V8 above a…

‹ ›

Plenum and throttle body replacementView all 12

Aluminum Ford throttle body assembly with IAC valve, EGR diaphragm and wiring on concrete

Ford throttle body assembly on concrete with EGR diaphragm, IAC valve and cable bracket

Installed V8 throttle body with linkage, return spring and cables in engine bay

Engine bay with airbox removed showing throttle body, alternator and master cylinder

Engine bay close-up with intake manifold, alternator, hoses and wiring during removal work

Two automotive throttle bodies with wiring harnesses on a concrete floor

Aluminum throttle body and intake elbow installed on V8 with linkage and cables

Aluminum throttle body with brass blade exposed on engine, intake removed

12photos in this albumView all

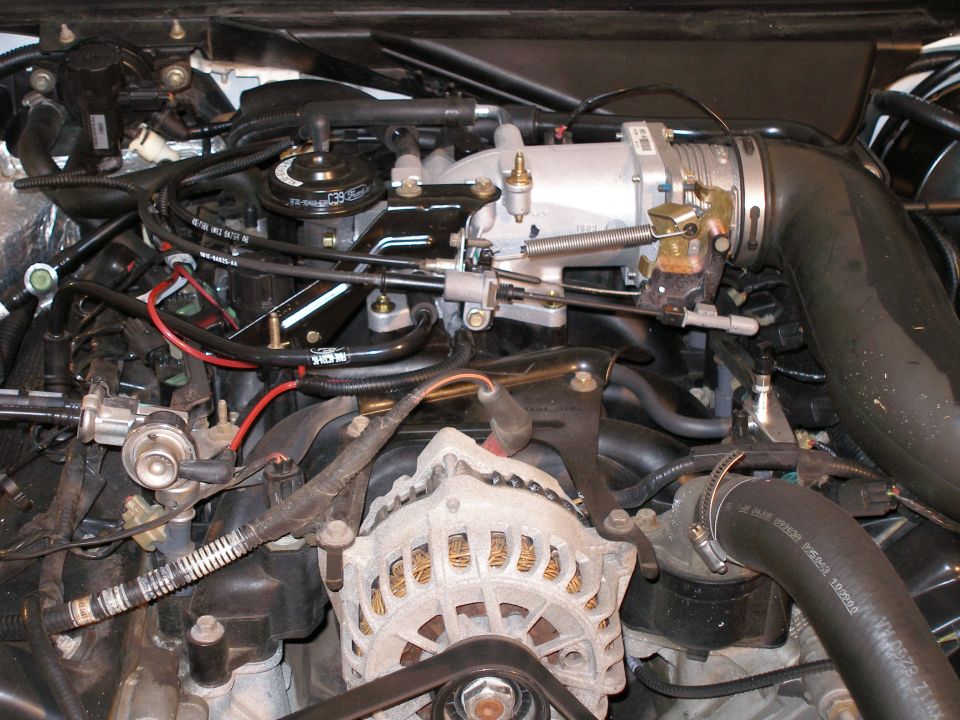

Close overhead shot of a freshly installed aluminum throttle body and upper intake on a V8, with the throttle linkage and return spring, cruise/throttle cables and gold-plated bracket, black EGR vacuum canister, red battery cable, and the ribbed intake tube clamped on at right. The alternator with exposed copper windings and the serpentine belt sit below, alongside black heater and radiator hoses.
