Two splined output shafts on purple cloth with measurement and r…

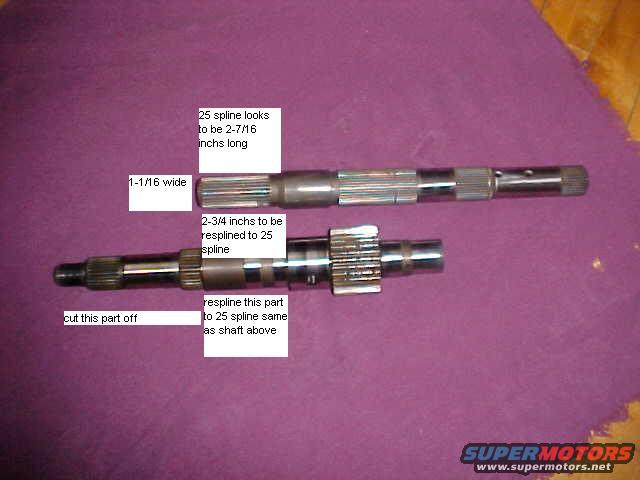

Two splined transmission/transfer case output shafts laid side by side on a purple cloth, annotated with white text callouts reading "25 spline looks to be 2-7/16 inchs long," "1-1/16 wide," "2-3/4 inchs to be resplined to 25 spline," "cut this part off" and "respline this part to 25 spline same as shaft above." The lower shaft carries a machined gear.

AI caption January 2007 · Photo 190 of 312
