Jeep Wrangler TJ Bushing, Frame Hole & Bolt Diameter Sketch (.388/.390/.475")

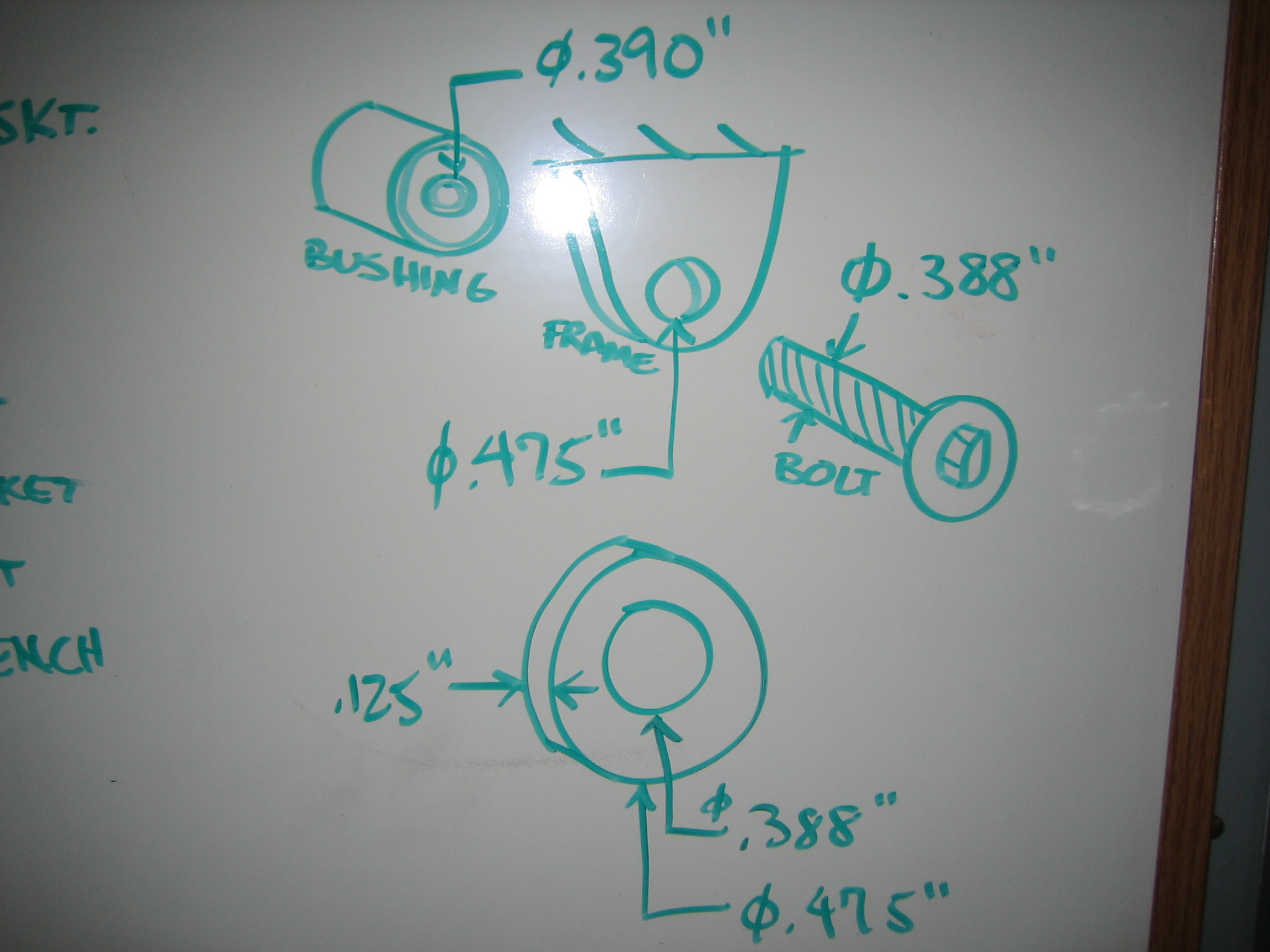

This is a photograph of a hand-drawn whiteboard sketch (not a formal blueprint) filed with a 2001 Jeep Wrangler gallery. It documents dimensional measurements for a bushing-to-frame-to-bolt fit-up, apparently to explain slop or to spec a repair sleeve. Three parts are sketched: a cylindrical BUSHING with an inner bore called out as Ø .390", a FRAME bracket cross-section with its bolt hole called out as Ø .475", and a BOLT whose threaded shank is called out as Ø .388". A fourth drawing at the bottom shows a face view of a sleeve/washer-like part with a .125" wall/flange dimension, an inner diameter of Ø .388" and an outer diameter of Ø .475" — i.e., a sleeve sized to fill the gap between the .388" bolt and the .475" frame hole. Partial words are visible along the left edge of the whiteboard (ending in "SKT.", "KET", "ENCH"), likely a cut-off tool or parts list. No vehicle year, model, part numbers, or torque values appear in the image itself; a reader learns only the measured diameters and the implied need for a reducer sleeve or bushing between bolt and frame hole.
