1998 Jeep Cherokee XJ Fuse Box Chart - Fuse Amps, Circuits & Wire Colors

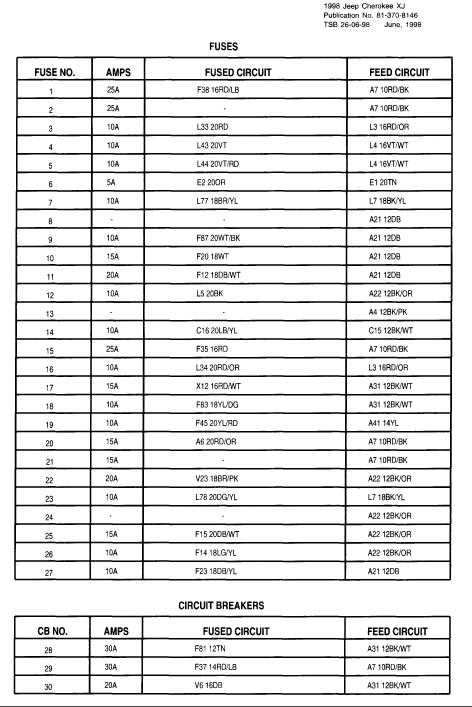

This document is a fuse and circuit breaker chart for the 1998 Jeep Cherokee XJ, identified by Publication No. 81-370-8146 and TSB 26-06-98, dated June 1998. It lists 27 fuse positions in a table showing each fuse number, its amperage rating (ranging from 5A to 25A), the fused circuit wire designation with gauge and wire color code (e.g., F38 16RD/LB, L33 20RD, C16 20LB/YL), and the corresponding feed circuit wire (e.g., A7 10RD/BK, A21 12DB, A22 12BK/OR, A31 12BK/WT). Several fuse positions (8, 13, 21, 24) show no amperage or no fused circuit, indicating unused or spare positions. A second table covers three circuit breakers, positions 28–30: CB 28 (30A, F81 12TN), CB 29 (30A, F37 14RD/LB), and CB 30 (20A, V6 16DB), all fed by circuit A31 12BK/WT. A reader can use this chart to identify fuse amperage ratings, trace circuit wire colors and gauges, and determine which feed circuit powers each fuse in the interior fuse block. Note: although uploaded to a 2004 Jeep Wrangler gallery, the document explicitly states it applies to the 1998 Jeep Cherokee XJ.
