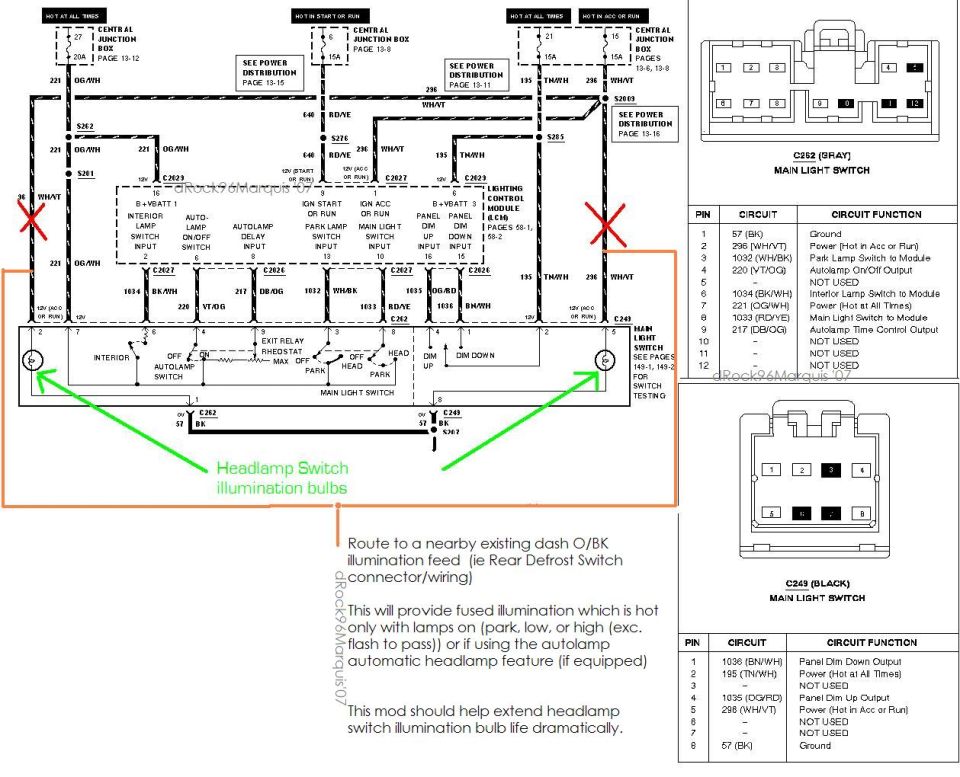

headlampswitchilluminationmod.jpg Modifying the headlamp switch wiring on 95-02s to illuminate when lamps are on, versus hot in acc/run
headlampswitchilluminationmod.jpg | Hits: 3202 | Posted on: 10/10/07 | View original size (220.42 KB)


Modifying the headlamp switch wiring on 95-02s to illuminate when lamps are on, versus hot in acc/run
