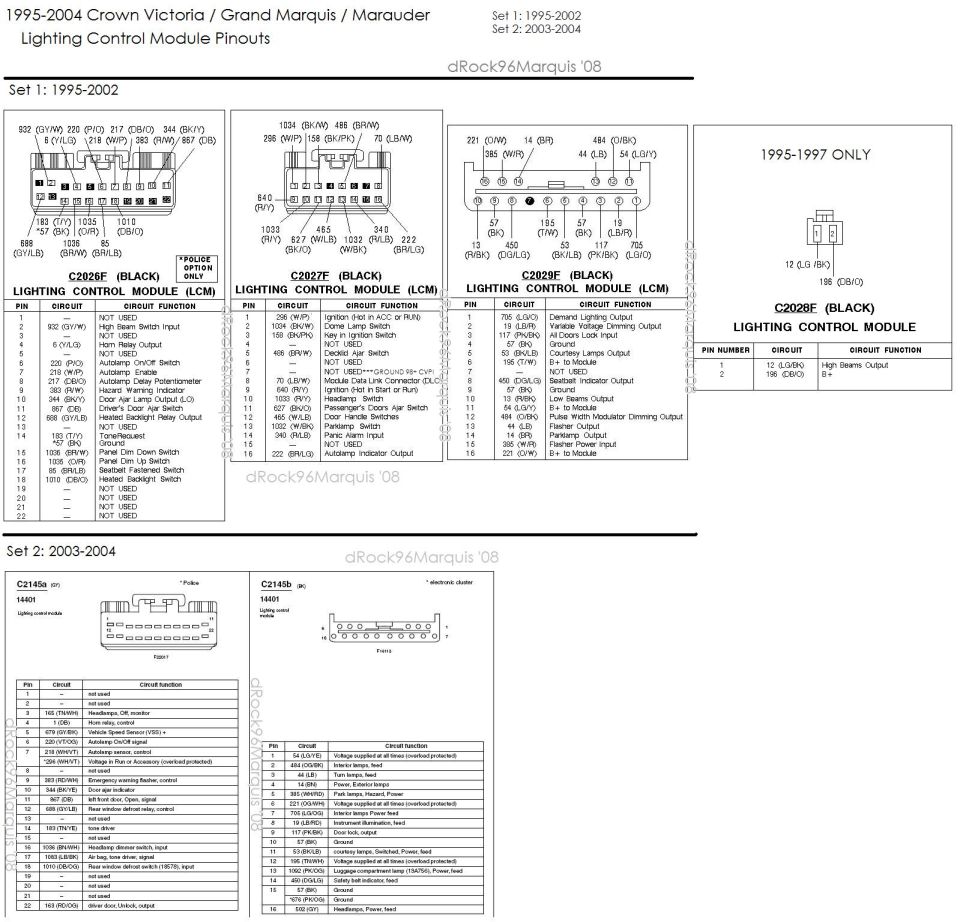

9504cvgmqmmlcmpinouts.jpg 1995-2004 LCM pinouts *****Accidentally forgot the third connector for the '03-'04 pinouts. If you were linked to this diagram please refer to the corrected one: http://www.supermotors.net/vehicles/registry/media/698563
9504cvgmqmmlcmpinouts.jpg | Hits: 7293 | Posted on: 1/29/08 | View original size (363.29 KB)

1995-2004
LCM pinouts



*****Accidentally forgot the third connector for the '03-'04 pinouts.
If you were linked to this diagram please refer to the corrected one:
http://www.supermotors.net/vehicles/registry/media/698563
