Cutaway cast-iron cylinder head section showing port runners and…

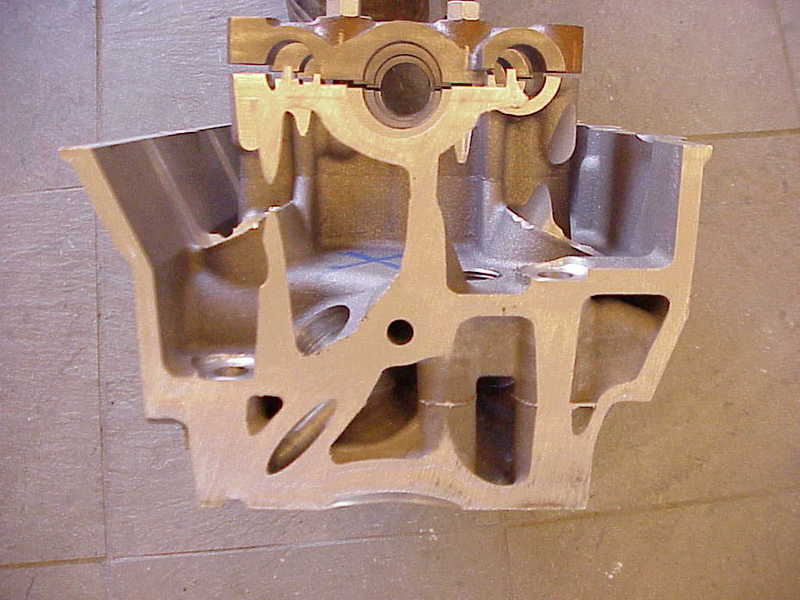

Sectioned cast-iron cylinder head cut away to expose the intake and exhaust port runners, water jacket cavities and a rocker/cam bearing saddle at the top. The cutaway sample rests on a tiled floor with a blue paint mark inside one of the port walls.

AI caption April 2008 · Photo 215 of 455
