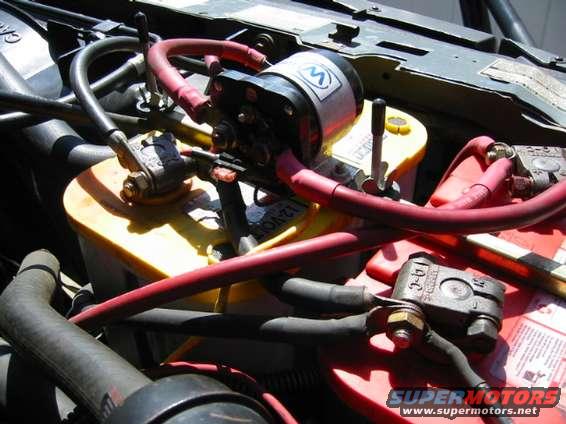

Here's a back view of the solenoid, showing the connections. The solenoid is controlled by a 3 way toggle switch: 1) both charge with engine on, isolated with engine off 2) both batteries on 3) batteries isolated.
