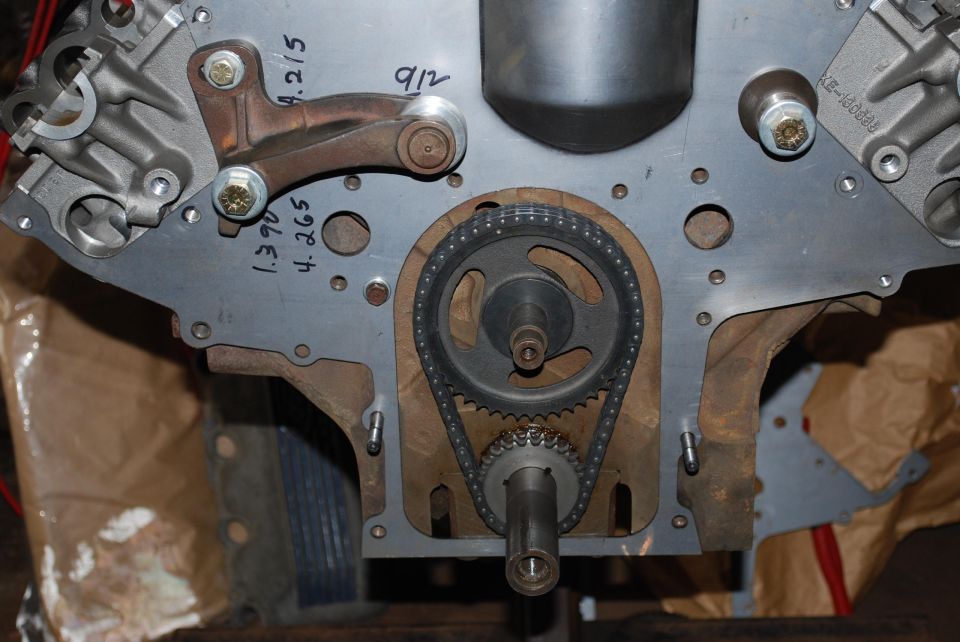

V8 engine block front with timing chain and cam gear exposed, ma…

Front of a bare V8 engine block during assembly with the timing cover off, showing the double-roller timing chain wrapped around the cam sprocket and crank gear, the crank snout protruding at bottom, and the oil filter housing above. Measurement notes (1.390, 4.265, 4.215, 9/12) are written in marker on the machined block face.
