Ford C-350 Centurion Mounting Plate Template - 3/16" Plate Blueprint (Page 1 of 2)

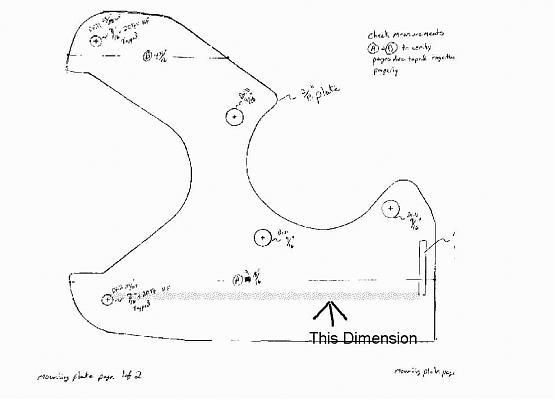

This document is a hand-drawn blueprint/template scan for a mounting plate, uploaded as page 1 of a 2-page set (labeled "mounting plate page 1 of 2"). The drawing shows the outline of an irregularly shaped mounting plate to be cut from 3/16-inch plate steel. Several circular hole locations are marked around the plate, most annotated with a 7/16-inch drill size, and some with positional notes (e.g., distances "up" from an edge, apparently around 20+ inches, though the handwriting is faint). Two reference measurements, labeled (A) and (B), are provided with an instruction to "check measurements (A) & (B) to verify pages doc reprod. together properly" — i.e., to confirm the template printed/reproduced at correct scale before use. Measurement (B) is written as approximately 14 7/8 inches across the top, and (A) appears near the bottom edge. A large printed arrow and the label "This Dimension" point to a shaded band along the lower edge of the plate, calling attention to a specific dimension along the bottom. The scan was filed with a 1995 Ford C-350 Centurion conversion, though the document itself does not state a vehicle application, year, or part number.
