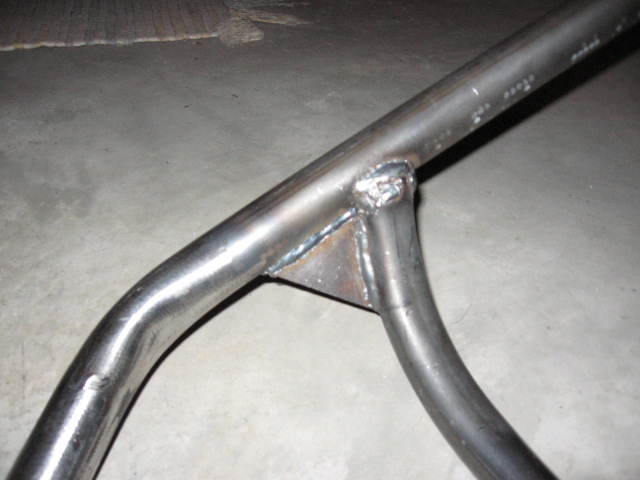

Welded steel tube joint with triangular gusset plate on concrete…
Close-up of a fabricated steel tubular structure showing a welded joint where multiple bent tubes meet, reinforced with a triangular gusset plate, sitting on a concrete floor. The bare metal shows faint text markings along one tube and visible weld beads at the junction.
