Mazda V6 turbocharged engine bay with blue plug wires and polish…

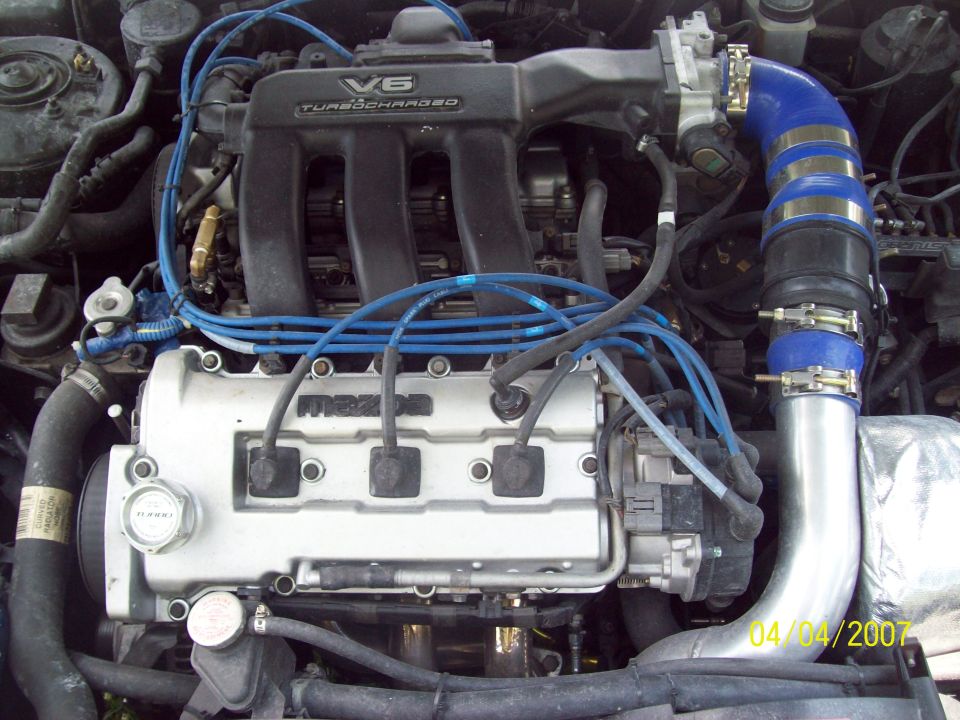

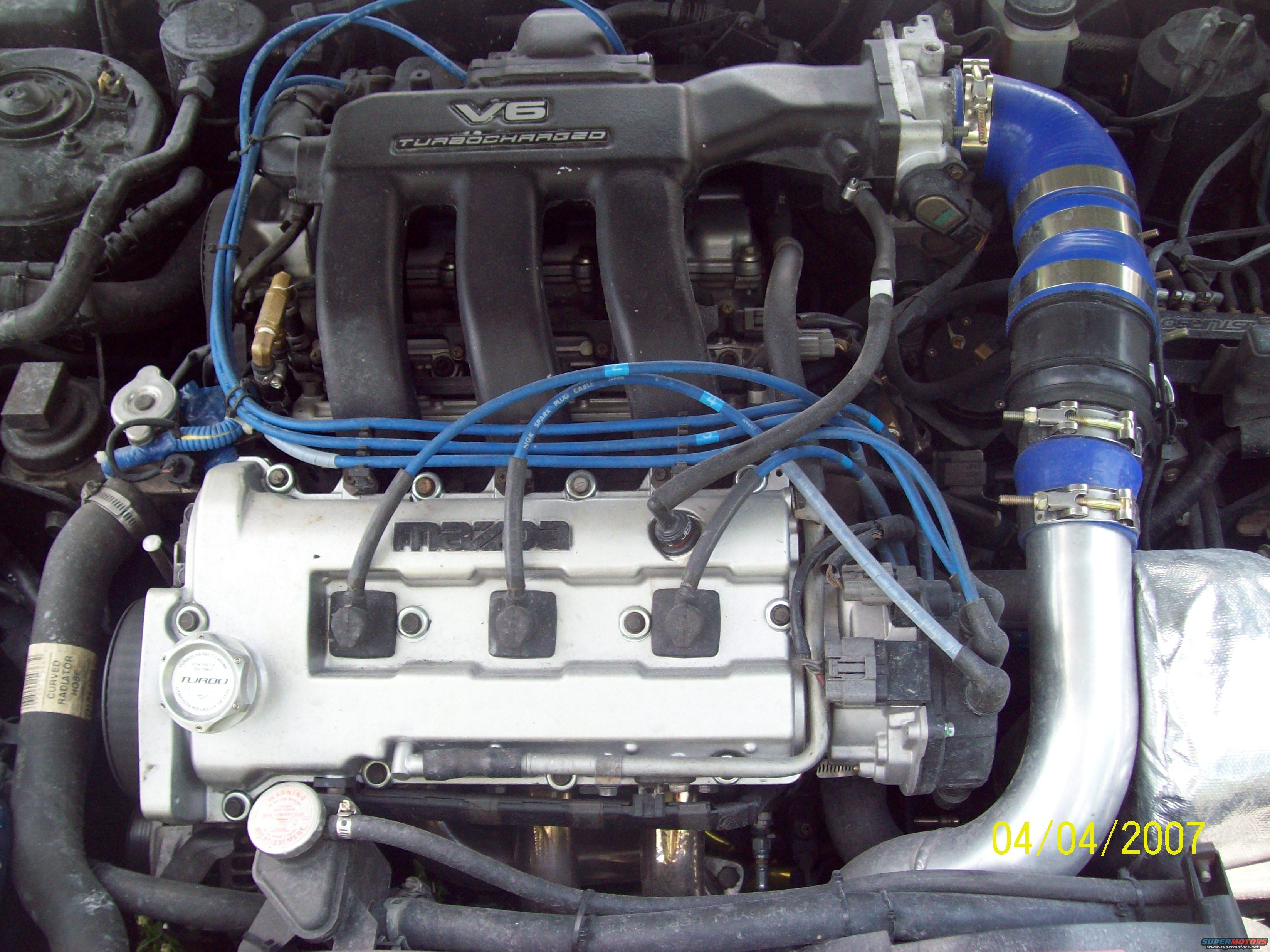

Mazda V6 turbocharged engine bay with blue plug wires and polished charge pipe

Engine bay overhead of a transverse Mazda V6 with an intake manifold cover reading "V6 TURBOCHARGED" and a cast valve cover stamped MAZDA, wearing blue spark plug wires. A blue silicone coupler and polished aluminum charge pipe run down the right side to the throttle body; date-stamped 04/04/2007.

AI caption · Photo 71 of 98

Is this accurate? Sign in to help verify it.
