What engine does this vacuum diagram apply to?

The decal is marked "ENGINE 5.9L-4," indicating it applies to a Chrysler 5.9L engine.

What is the part number of this vacuum hose routing diagram?

The label reads "CHRYSLER VACUUM HOSE ROUTING DIAGRAM 4405730," so the decal part number is 4405730.

What emissions components are shown in the diagram?

It shows the EGR valve, EGR amplifier, PHV/EGR solenoid, ASRV solenoid and air switch relief valve, air pump with upstream/downstream air, PCV valve, spark delay valve, T.I.D.C. valve, trap door delay valve, heated air temp sensor, heated air diaphragm, vapor canisters, and thermal and electric bowl vent valves.

Does the diagram show connections beyond the engine bay?

Yes, it shows hoses routed "TO FUEL TANK," "TO AIR CLEANER," "TO CRUISE CONTROL," and "TO HEATER A/C CONTROL."

What do the dashed lines on the diagram mean?

Per the legend, dashed lines indicate an "OPTIONAL VACUUM OPERATED ACCESSORY."

Home/ Registry/ Dodge/ 1500/ 1987 Dodge 1500/ Photo supermotors.net/registry/media/830970

Dodge Chrysler 5.9L (360) Vacuum Hose Routing Diagram 4405730 - Decal

Chrysler vacuum hose routing diagram label for 5.9L V8 engine on underside of trunk lid

‹ ›

Chrysler underhood vacuum hose routing diagram for a 5.9L V8 engine showing emissions and vacuum component connections.

AI caption October 2010 · Photo 94 of 653

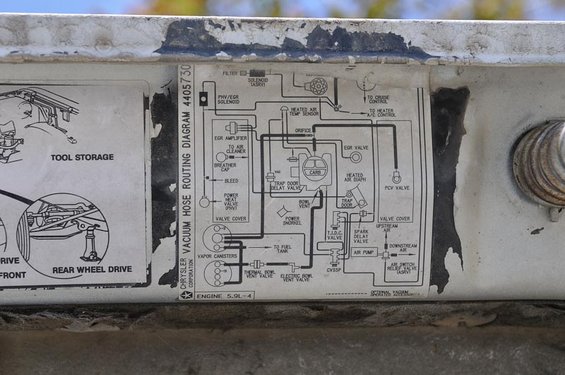

This is a photograph of a factory Chrysler Corporation vacuum hose routing diagram decal, part number 4405730, applied to a metal panel (apparently under the hood or on a body panel of the vehicle). The label is marked "ENGINE 5.9L-4," indicating it applies to the 5.9L (360 cubic inch) carbureted V8 engine. The schematic shows the routing of vacuum hoses among emissions and engine-control components, including the carburetor, EGR valve and EGR amplifier, PHV/EGR solenoid, air switch relief valve (ASRV) solenoid, heated air temperature sensor, heated air diaphragm, PCV valve, power heat valve (PHV), trap door and trap door delay valve, spark delay valve, T.I.D.C. valve, air pump with upstream and downstream air switching, vapor canisters, thermal and electric bowl vent valves, CVSSP, and connections to the fuel tank, air cleaner, cruise control, and heater/A-C control. A dashed-line legend indicates optional vacuum-operated accessories. Partially visible to the left is another decal showing tool storage and jacking/drive information ("REAR WHEEL DRIVE"). A reader can use this document to identify correct factory vacuum line routing and component names for this Chrysler/Dodge 5.9L application.
