Mopar Fuel Door Installation Instructions K6869414 - Page 2 (Steps 6-11)

Mopar parts installation instruction sheet with numbered illustrated steps 6 to 11

‹ ›

Mopar parts installation instruction sheet showing illustrated step-by-step procedures numbered 6 through 11.

AI caption November 2011 · Photo 10 of 16

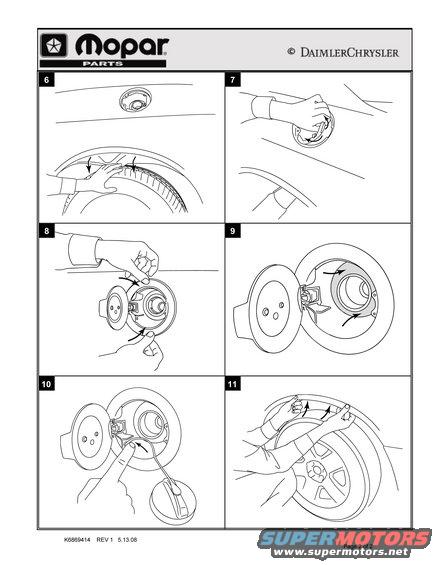

This is page 2 of 2 of a Mopar Parts (© DaimlerChrysler) installation instruction sheet, document number K6869414, REV 1, dated 5.13.08. The page is almost entirely pictorial, containing six numbered illustration panels (steps 6 through 11) that continue a fuel filler door installation procedure. Step 6 shows the filler opening in the quarter panel and hands working along the wheel-well/fender liner. Step 7 shows a hand rotating a component inside the fuel filler housing. Step 8 shows the fuel door bezel and housing being twisted together by hand. Step 9 shows the completed door open with a shaded seal area around the filler opening indicated by arrows. Step 10 shows the tethered fuel cap lanyard being pressed into the door assembly. Step 11 shows the wheel-well liner being pressed back into position over the wheel. There is no written step text, no torque values, and no vehicle year/model applicability stated on this page. A reader learns the visual sequence for assembling and installing the Mopar fuel filler door kit and reinstalling the inner fender liner, and can identify the sheet by its part/document number K6869414.
