Dodge Challenger Fuel Door Installation Instructions - Mopar K6869414 Page 1

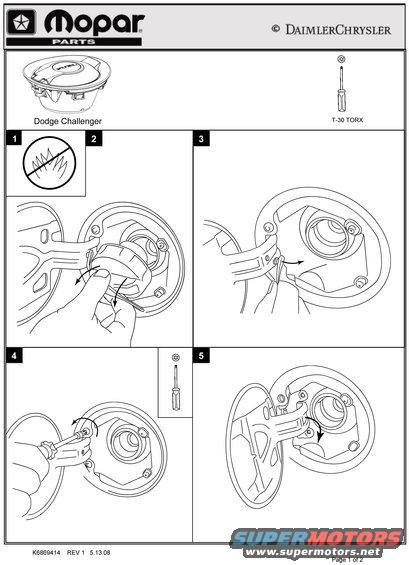

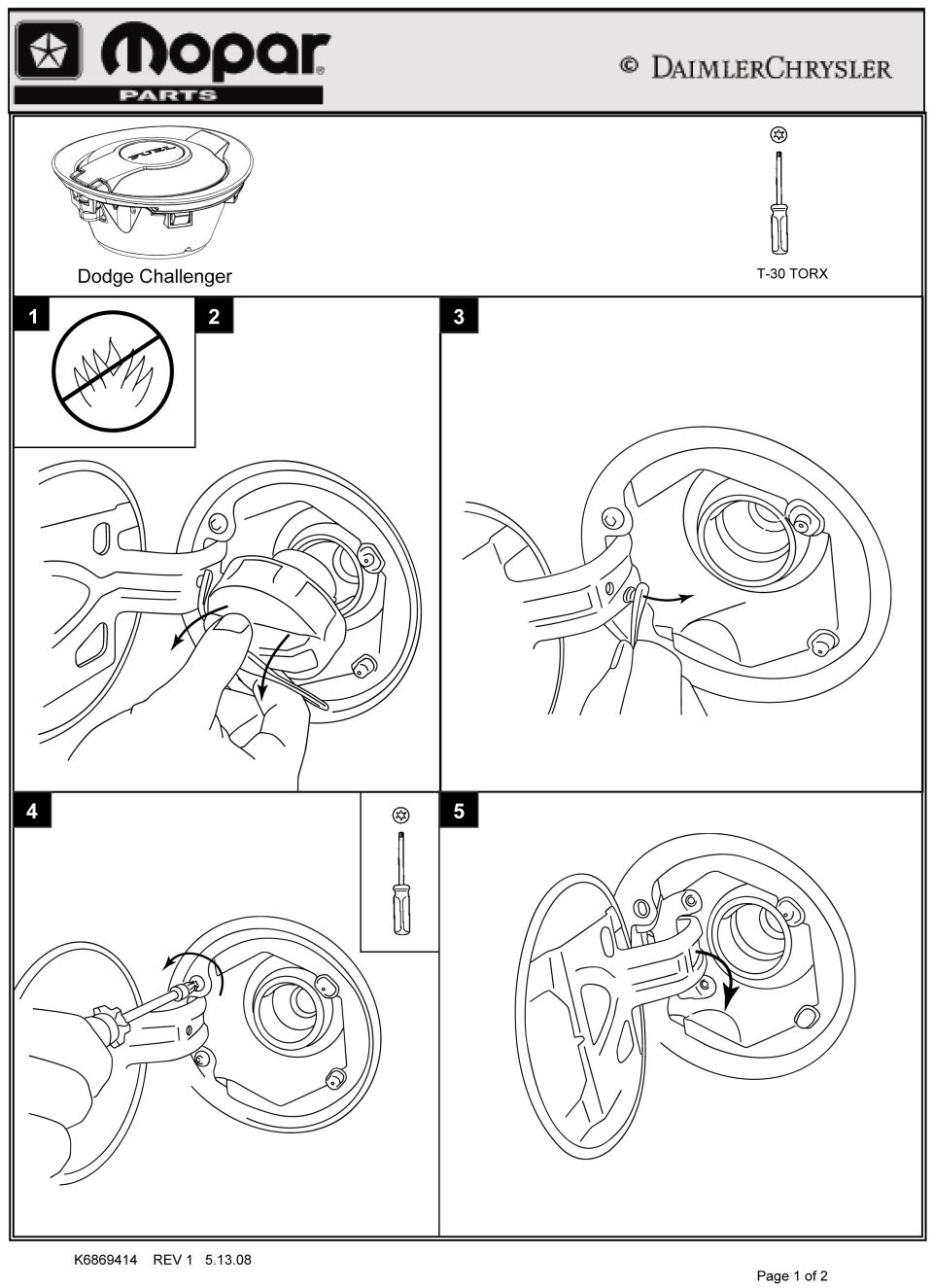

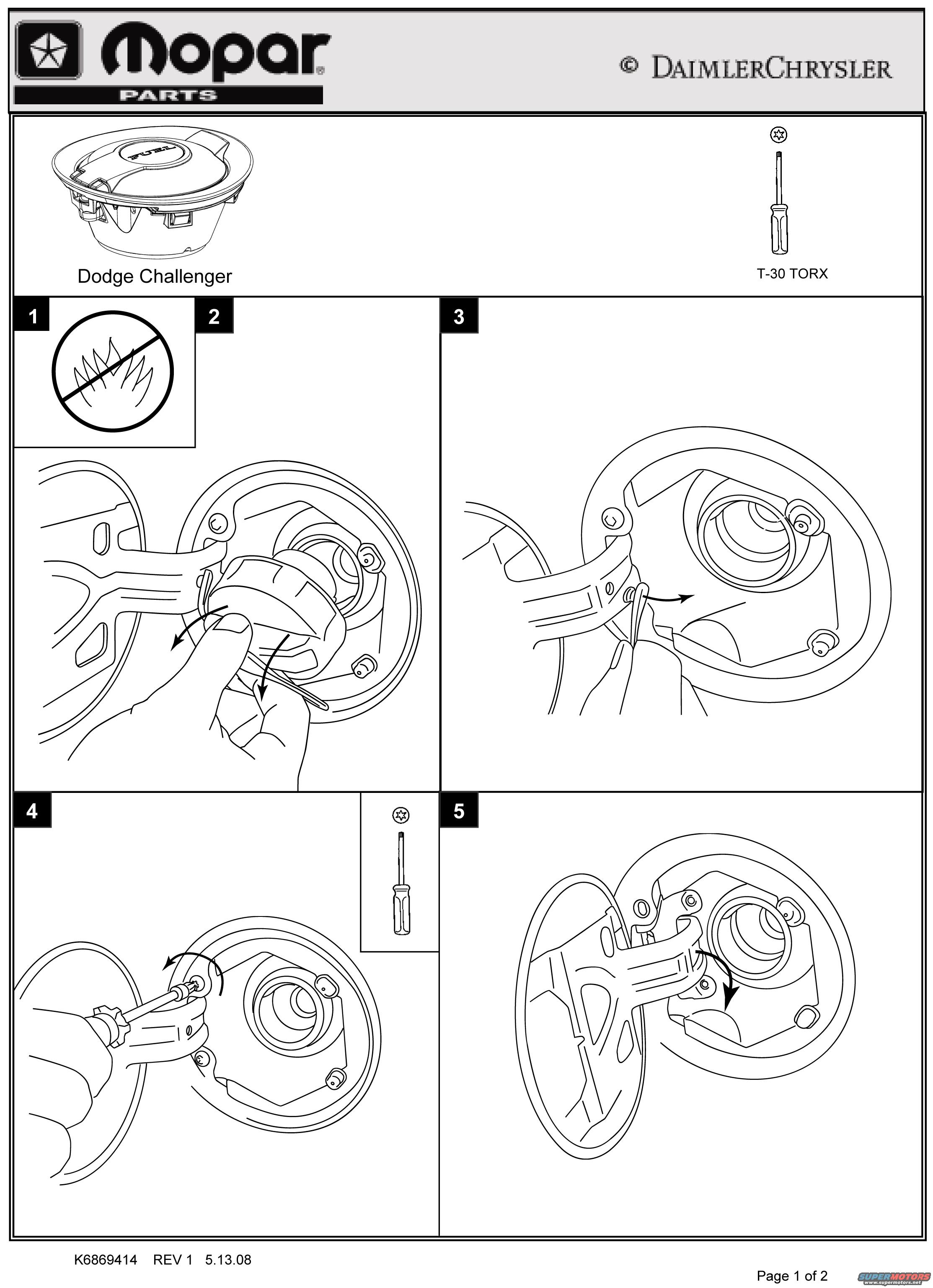

This document is page 1 of 2 of a Mopar Parts (DaimlerChrysler) installation instruction sheet, document number K6869414, REV 1, dated 5.13.08, for a fuel filler door assembly on the Dodge Challenger. The sheet is almost entirely pictorial, showing the fuel door part (a round housing with a cap marked "FUEL") and specifying that a T-30 TORX driver is the required tool. Five numbered illustration steps are shown: step 1 is a safety warning symbol prohibiting open flames near the work area; step 2 shows removing the existing fuel cap by hand at the filler neck; step 3 shows releasing/prying a retaining tab inside the fuel filler housing; step 4 shows using the Torx screwdriver to remove a fastener from the housing; and step 5 shows removing or rotating the housing assembly out of the body opening. A reader learns the part applies to the Dodge Challenger, the tool needed (T-30 Torx), the removal sequence for the factory fuel door/housing, and the document part number and revision date. Step-by-step continuation (presumably installation of the new fuel door) appears on page 2, which is a separate scan in the same album.
