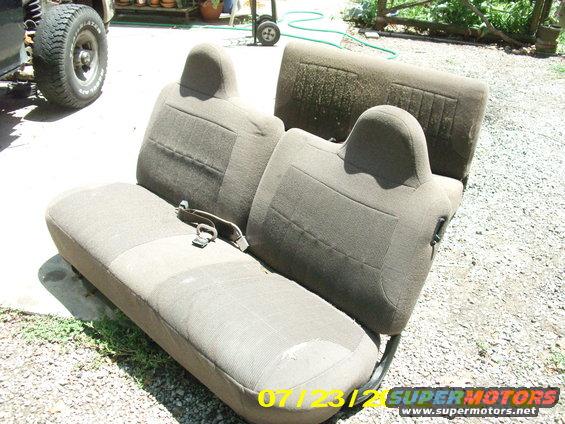

picture-031.jpg Pulling the front seats out are pretty easy. 13mm socket and a breaking bar to get 2 bolts up front and 2 nuts on the rear. Just slide the seat forward and back for clearance.

The center seat belts take a 55 torx and use your breaker bar... they are 2 inch long bolts & yes they are a PITA to get out.

The back seat has 2 pins up front, just remove the clip from the pin and push the leaver on the rear bottom to remove. The brackets have the same 55 torx bolts that your seatbelts hand, they are just as tough to remove...
picture-031.jpg | Hits: 169 | Posted on: 7/25/12 | View original size (4.28 MB)

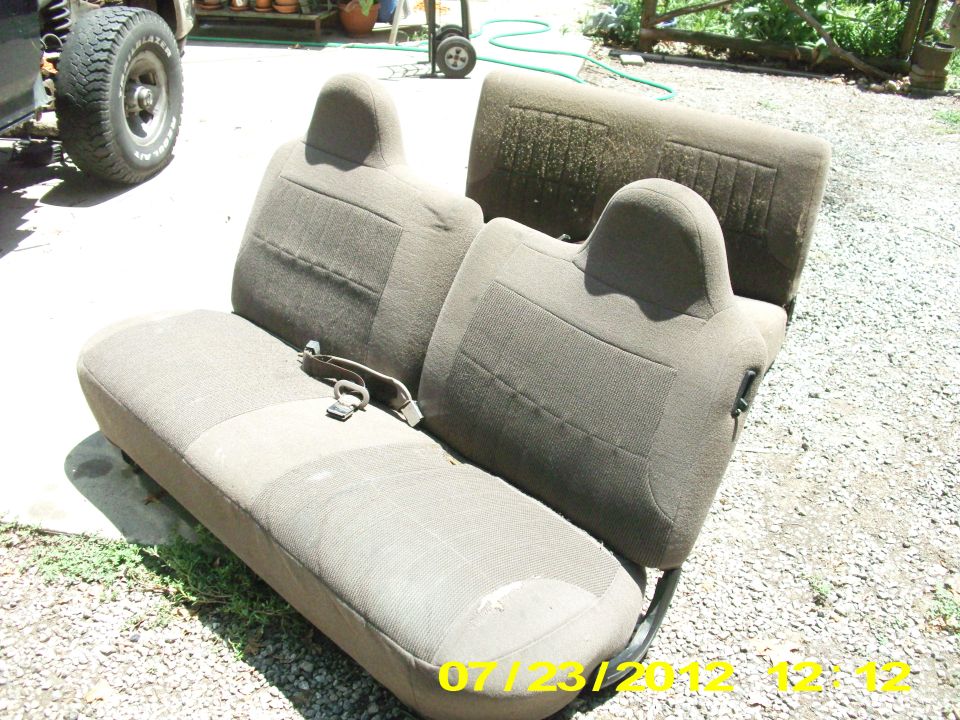

Pulling the front seats out are pretty easy. 13mm socket and a breaking bar to get 2 bolts up front and 2 nuts on the rear. Just slide the seat forward and back for clearance.

The center seat belts take a 55 torx and use your breaker bar... they are 2 inch long bolts & yes they are a PITA to get out.

The back seat has 2 pins up front, just remove the clip from the pin and push the leaver on the rear bottom to remove. The brackets have the same 55 torx bolts that your seatbelts hand, they are just as tough to remove...
