1. Insert the glass and channel assembly into the door.

2. Lubricate the window mechanism as shown in Section 2.

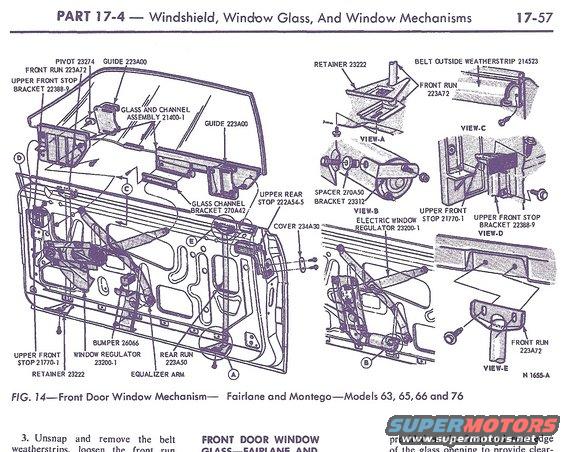

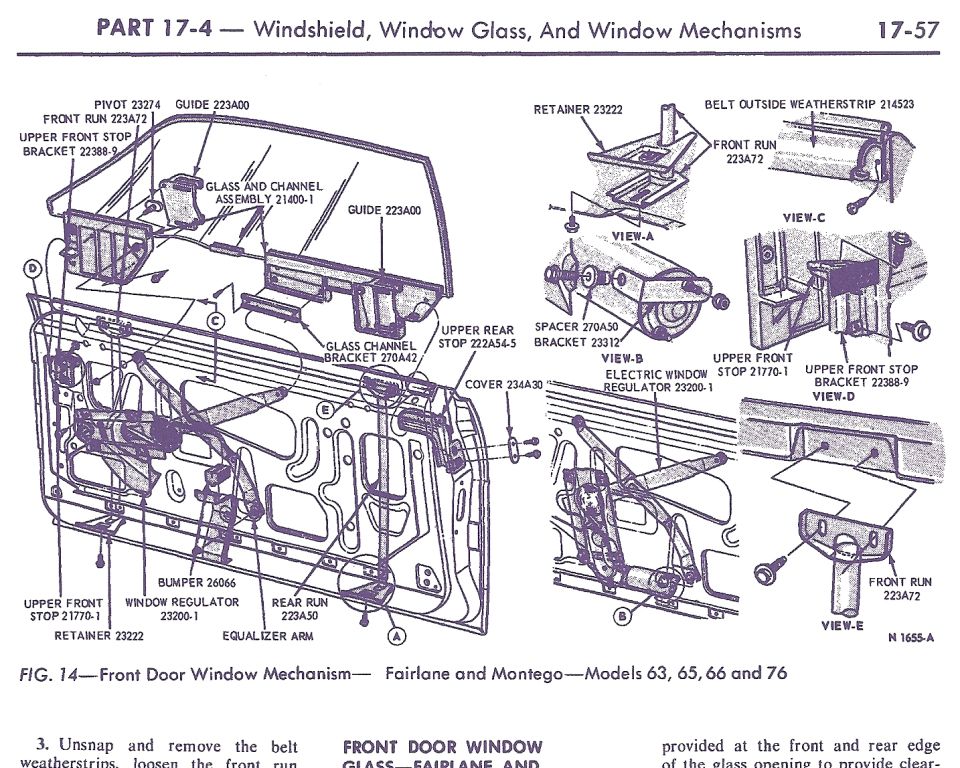

3. Position the window regulator arm to the glass channel and install the pivot and retaining nut (Figure 14).

4. Position the glass channel bracket to the regulator arm roller and the glass channel. Install the two glass channel bracket attaching screws.

5. Position the front and rear guides to the glass channel and install the attaching screws (Figure 14).

6. Insall the upper rear stop (Figure 14).

7. Adjust the window mechanism as outlined in Section 2.

8. Install the watershield and trim panel on the door.
