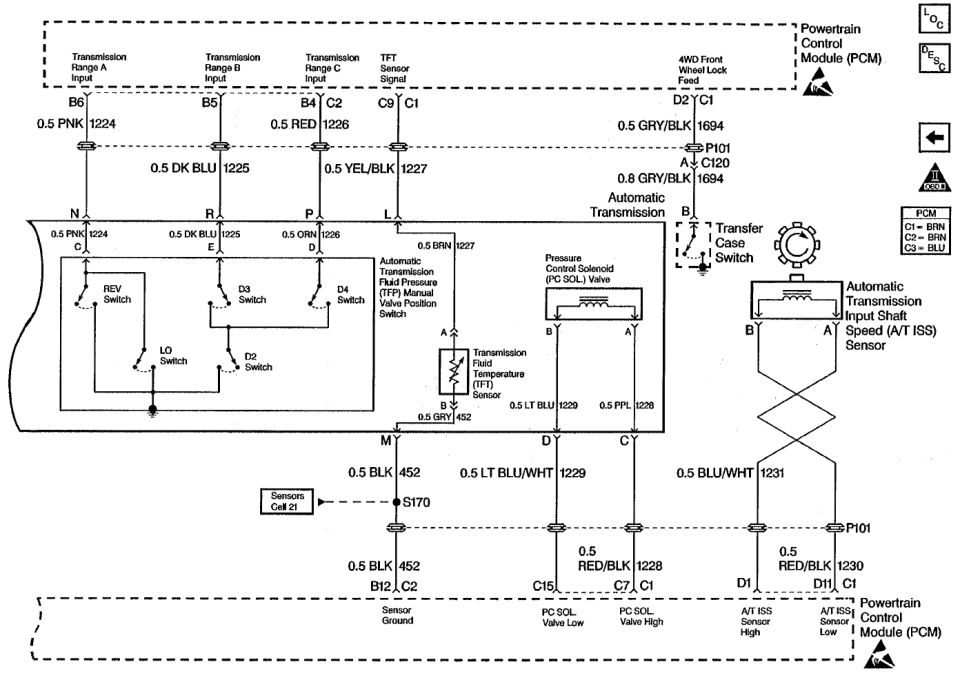

'97 6.5L Transmission: TFP, TFT, PCS, ISS, transfer case switch

'97 6.5L Transmission: TFP, TFT, PCS, ISS, transfer case switch
'97 6.5L Transmission: TFP, TFT, PCS, ISS, transfer case switchOriginal file
'97 6.5L Transmission: TFP, TFT, PCS, ISS, transfer case switch

Wiring & Tech DiagramsView all 28

Wiring diagram for MAF sensor, EGR solenoids, and wastegate solenoid to PCM 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo Wiring diagram titled Four Wheel Drive Indicator without electric shift transfer case 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 CK HVAC exploded parts diagram with ducts, case and labeled part numbers 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 28photos in this albumView all

'97 6.5L Transmission: TFP, TFT, PCS, ISS, transfer case switch
